Step 1 Go to Start>Settings>Printers>Add New Printer (WinXP - Start>Printers
and Faxes>Add a Printer).

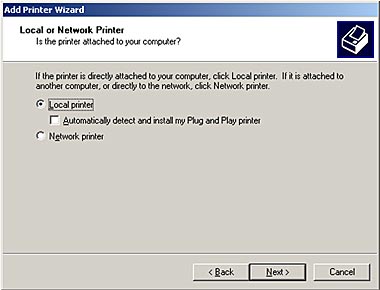

Step 2 Select Local Printer. Make sure to uncheck Automatically
detect and install my plug and play printer. Click Next.

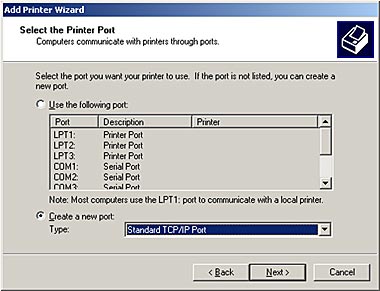

Step 3 Select Create a New Port and select Standard
TCP/IP port. Click Next.

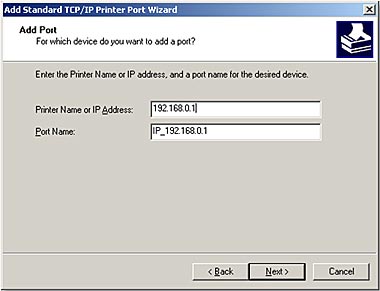

Step 4 Enter the IP address of the print server (192.168.0.1). Leave the port name
with the default name. Click Next.

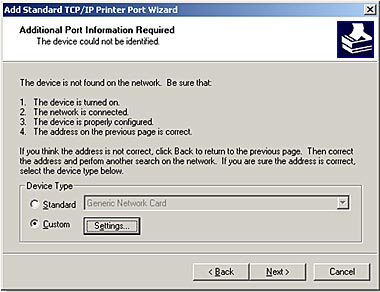

Step 5 You will get a message saying that additional port information required.
Step 6 Select Custom and then click Settings.

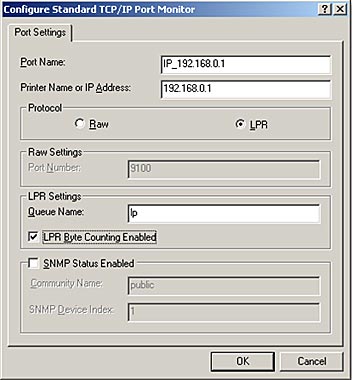

Step 7 Set Protocol to LPR.
Step 8 For the LPR Settings the Te100-P1P/U the port name is L1 It is case
sensitive! (LP lower-case). In most cases, check LPR Byte Counting
Enabled. If you cannot print, then try unchecking this.
Step 9 Select OK > Finish.

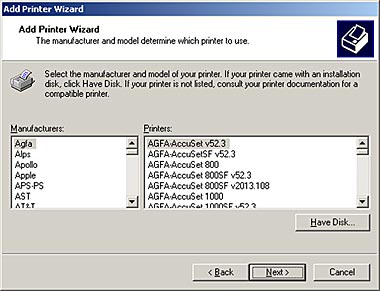

Step 10 Continue with the Add Printer Wizard. Choose your printer from the
list or click Have Disk and point to your printer driver disk.
