Product Families » Wireless Networking » Wireless Antennas » Outdoor Antennas » TEW-AO14D
14dBi Outdoor High Gain Directional Antenna
TEW-AO14D (Version 2.0R)
  • Provides high performance long distance connections for your wireless network
  • Compatible with wireless b, g and n standards
  • Ensure protection from lightning strikes with TRENDnet’s TEW-ASAK Outdoor Arrestor Kit
  • Includes mounting kit

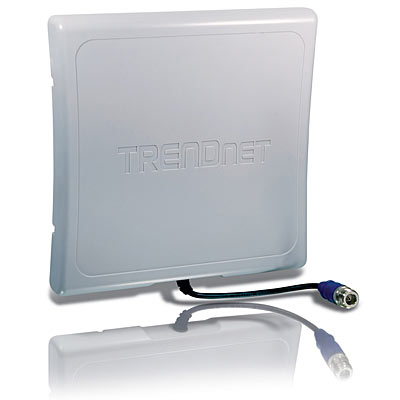

TEW-AO14D
Click on image to enlarge

TEW-AO14D Outdoor Directional Antenna provides long distance point-to-point connectivity for your wireless network. As an optional antenna for your IEEE 802.11b/g 2.4GHz wireless network equipment, you can install it outdoor for long distance point-to-point connections. Enjoy the benefits of wireless connectivity at greater distances and throughput throughout your outdoor wireless zone.

* This dBi gain does not factor cable loss. Performance estimations are for typical use; range will vary with site conditions.
RoHS Compliant

  • Compatible with2.4GHz 802.11b/g wireless devices
  • Weatherproof housing suitable for indoor and outdoor applications
  • Adjustable mount for optimal orientation and performance
  • Ideal for point-to-point bridge connections between buildings/zones
  • Delivers extended access point range in expansive single floor environments
  • Higher power output extends transmission range through low dB loss materials (plywood/plasterboard) used in typical floor and wall construction*
  • Enhances wireless range and improves signal transmission and reception
  • Boosts standard antenna power from a meager 2dBi to a respectable 14dBi
  • Easy-to-install wall and pole mounting.
  • 3-year limited warranty

*Due to the bisymmetrical nature of WiFi, the client segment may also require a high gain antenna.

Hardware

Frequency range

2.4 ~ 2.5GHz

Antenna Gain

14dBi

VSWR

1.5:1 Max

Polarization

Linear, Vertical

HPBW/ Horizontal

30°

HPBW/ Vertical

30°

Front to Back Ratio

15dB

Power Handling

50W (cw)

Impedance

50 Ohms

Connector

N-Type Female

Survival Wind Speed

216 km/ hr(134miles/hr)

Lightning protection

DC ground

Radome Material

ABS

Dimension

225 x 228 x 30mm(8.9 x 9.0 x 1.2in.)

Weight

450g (15.9oz.)

Temperature

-40oC ~ 80oC (-40oF~ 176oF)

* Note: For optimal results in extending your wireless range with wireless antenna installations, we recommend that you consult a professional installer for site survey, safety precautions, and proper installation.

Antenna Coverage Patterns


TEW-AO14D

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
Register Your Product
Package Contents
  • TEW-AO14D
  • Multi-Language Quick Installation Guide
  • Mounting Guide
  • Mounting Bracket
