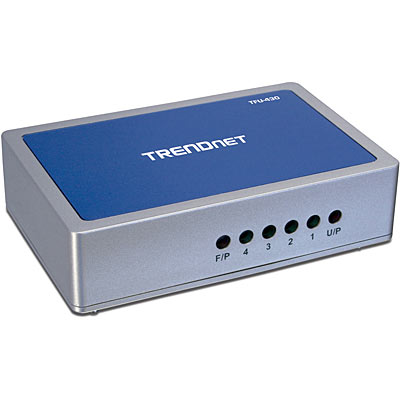

7-Port USB/FireWire Combination Hub
TFU-430 (Version: 2.0R)
  • Quickly connect more USB devices to your computer
  • Transfer data at speeds up to 480Mbps
  • Save desk space by mounting the USB hub vertically
RoHS Compliant

This 7-Port USB 2.0/FireWire Combo Hub provides four USB 2.0 ports and three IEEE 1394 FireWire ports to your USB/FireWire-Enabled Desktop or Laptop PC.

TFU-430
Features
  • Compliant with USB 2.0, USB 1.1 and FireWire IEEE 1394 Specifications
  • Supports USB High-Speed Transfer Rate up to 480 Mbps
  • Supports IEEE 1394 Transfer Rate up to 400Mbps
  • Supports USB Over-Current Detection and Individual/Gang Power Control
  • High Speed Detection Indicator Output
  • Supports Multiple tiers with up to 127 USB Devices and up to 63 FireWire Devices
  • Compliant with Windows 98SE/ME/2000/XP (32/64-bit)/Vista (32/64-bit), Mac OS 8.6 or above
  • Supports Bus-Power or Cable-Power with Power Adapter
  • Compatible with USB 2.0/1.1 and FireWire enabled PCs
  • Supports Plug & Play and Easy Installation
  • 2-year limited warranty
Specifications
Hardware
Interfaces: USB 2.0 and FireWire
Standards: USB 2.0, 1.1 and FireWire IEEE 1394

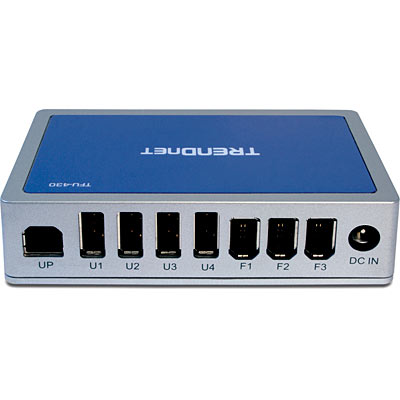

Port:
  • 1 x USB 2.0 Type B Port (Uplink)
  • 4 x USB 2.0 Type A Ports
  • 3 x FireWire Ports
Driver Compliant: Windows 98SE/ME/2000/XP (32/64-bit)/Vista (32/64-bit), Mac OS 8.6 or above

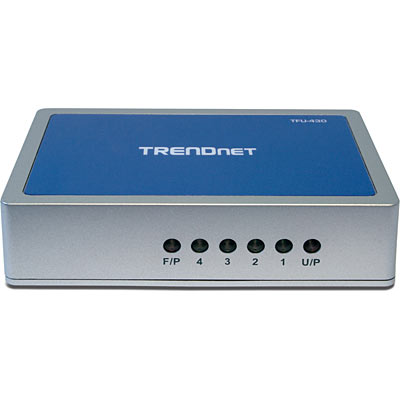

LEDs:
  • Power : USB & FireWire
  • USB : Link Activity
Dimension (LxWxH): 106.5 x 63 x 41.5mm (4.2 x 2.48 x 1.6 inches)
Weight: 145g ( 3.2lb)
Power Adapter (Switching)
  • Input: 100~240V ~ 50/60Hz
  • Output: 12V DC, 2.5A
Power Consumption: 500mA (max)
Temperature:
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 45° C (14° ~ 113° F)
Humidity: 85% (Non-Condensing)
Certifications: FCC, CE
