4-port KVM switch with VGA and USB connection to computers
Device monitoring with Auto-Scan and audible feedback
High quality 2048x1536 resolution for a crisp display
Supports most operating systems and advance mouse designs
All required cabling included

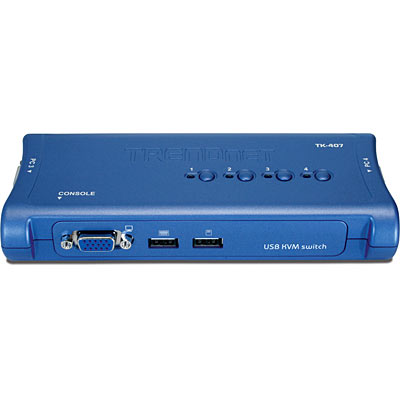

The 4-Port USB KVM Switch lets you manage four PCs with just one set of keyboard, monitor, and mouse. Switch between four PCs with a simple press of a button! Separate sets of KVM cables are included with the KVM Switch, so users can start controlling 4 PCs instantly. The KVM cables also provide power to the KVM Switch, eliminating the need for a power adapter. Hot Key operations provide immediate access to features such as computer switching, and auto-scanning. With its Hot-Plug, and Audible Feedback, the 4-Port USB KVM Switch is the perfect choice for managing multiple PCs.
Features
4-Port USB KVM Switch
USB Keyboard/Mouse emulation with 4 sets of detachable KVM Cables
Supports Microsoft IntelliMouse, Optical Mouse, Logitech NetMouse and more
Compliant with Windows 98SE/ME/2000/XP/2003 Server, Linux, and Mac OS
High Video Quality, up to 2048 x 1536 VGA resolution
Multi-Platform support for PCs, Macintosh G3/G4, iMac and Mac Mini
Auto-Scan and LED display for PCs monitoring
Hot-Key, push button and Windows-Based client switching software
User definable Hot-Key (Windows Only)
Plug & play and Hot-Pluggable
USB Interface Power method
2-year limited warranty
Specifications
Hardware
Management
4 Computers
USB Interface
USB 1.1 Specifications Compliant
KVM Cable
4 Sets of 1.8M (6ft.) USB KVM Cables
Cable Interface
To KVM:
To PC/MAC:
1 x VGA/SVGA HDB 15-pin (male)
1 x USB (Type A)
1 x VGA/SVGA HDB 15-Pin
Console Connector
2 x USB Keyboard/Mouse: (Type A)
1 x VGA/SVGA 15-pin HDB (female)
Port Selection
Push Button, Hot-Key Commands or Windows-Based Client Switching Software
