Ultra compact high speed wireless n adapter
Upgrade your laptop or desktop to wireless n
One-touch wireless connection with a Wi-Fi Protected Setup (WPS) button
WMM Quality of Service (QoS) data prioritization

The N150 Micro Wireless USB Adapter (model TEW-648UBM) quickly connects a laptop or desktop computer to a high speed wireless n network.

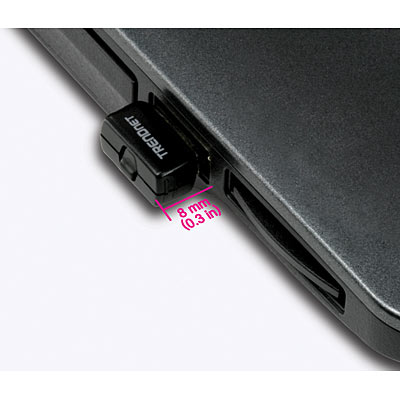

Enjoy proven wireless n speed and reliability, in a micro design that extends less than three eighths of an inch (9mm) from the edge of a computer. Connecting to a network is made easy with the external one-touch Wi-Fi Protected Setup (WPS) button. Advanced wireless encryption protects your valuable data. Wi-Fi Multimedia (WMM) Quality of Service (QoS) prioritizes important video, audio, and gaming traffic. Seamlessly stream video, download files, and play games with this ultra compact wireless n adapter.

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

1 x USB 2.0 connector
Ultra compact form factor
Wi-Fi compliant with IEEE 802.11n standard

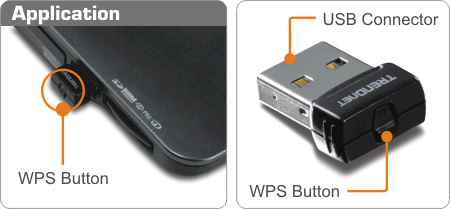

One-touch wireless connection with external Wi-Fi Protected Setup (WPS) button
Backwards compatible with IEEE 802.11g and IEEE 802.11b devices
Maximum reliability, throughput, and connectivity with automatic data rate switching
Supports 64/128-bit WEP, WPA/WPA2-RADIUS, and WPA-PSK/WPA2-PSK
Wi-Fi Multimedia (WMM) Quality of Service (QoS) data prioritization
Easy user setup and intuitive diagnostic utility
Coverage of up to 30 meters indoor (98 feet) and 50 meters outdoor (164 feet) *
3-year limited warranty

Hardware
Interface	USB 2.0
Standards	IEEE 802.11b, IEEE 802.11g, and IEEE 802.11n (draft 2.0)
Button	WPS button: enables quick wireless connection with WPS function
Power Consumption	Receive mode: 100mA (max.) Transmit mode : 210mA (max)
Supported OS	Windows 8, 7, Vista, and XP (32/64-bit for all windows) Mac OS X 10.4~10.8
Dimensions (LxWxH)	20 x 15 x 7 mm (0.8 x 0.6 x 0.3 in.)
Weight	1 g (0.03 oz)
Temperature	Operating: 0° ~ 40° C (32° ~ 104° F) Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity	Max. 95% (non-condensing)
Certifications	CE, FCC
Wireless
Modulation	OFDM, DSSS
Antenna	Built-in on board antenna
Frequency	2.412 ~ 2.484 GHz
Data Rate (auto fallback)	802.11b: up to 11Mbps 802.11g: up to 54Mbps 802.11n: up to 150Mbps
Output Power	802.11b: 14dBm (typical) 802.11g: 11dBm (typical) 802.11n: 10dBm (typical)
Receiving Sensitivity	802.11b: -84dBm (typical) at 11mpbs 802.11g: -69dBm (typical) at 54Mbps 802.11n: -66dBm (typical) at 150Mbps
Encryption	64/128-bit WEP, WPA/WPA2-RADIUS, WPA-PSK/WPA2-PSK
Channels	1~11 (FCC), 1~13 (ETSI)

TEW-648UBM
CD-ROM (Utility and Driver)
Multi-Language Quick Installation Guide

N150 Micro Wireless USB Adapter
