5-Port 10/100 Mbps PoE Switch

TPE-S50 (Version v1.0R)

  • 4 x 10/100 Mbps PoE ports and 1 x 10/100 Mbps port
  • 31 W total power budget
  • 1 Gbps switching capacity
  • Sturdy metal switch
  • Plug and Play installation
  • Use with a TRENDnet PoE Splitter to network and power non-PoE devices
  • Lifetime Warranty*
DISCONTINUED PRODUCT
The TPE-S50 (Version v1.0R) has been discontinued. It has been replaced by the TPE-S50 (Version v2.0R). For a list of discontinued products, click here.

The 5-Port 10/100 Mbps PoE Switch, model TPE-S50, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as Access Points and IP Cameras. The TPE-S50 offers four 10/100 Mbps PoE Ethernet ports and one 10/100 Mbps Ethernet port. It supports PoE (802.3af) devices with a 31 Watt power budget. Plug and Play this sturdy metal switch for reliable high speed PoE networking.

PoE Camera Flexibility

Automatically supply up to 15.4 Watts to standard 802.3af PoE devices

PoE Power

A 31 Watt PoE power budget supplies up to four Power over Ethernet devices with PoE power.

Ethernet Networking

Five 10/100 Mbps Ethernet ports produce a 1 Gbps switching capacity to support edge network installations.

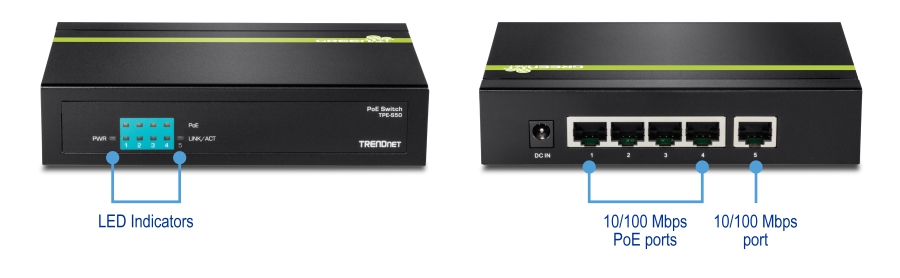

The front view of a PoE switch model TPE-S50 from TRENDnet highlights LED indicators labeled PWR, PoE, and LINK/ACT. The rear view displays five Ethernet ports, with the first four labeled as 10/100 Mbps PoE ports and the fifth as a 10/100 Mbps port. Additionally, there is a DC IN power input on the rear side.

PoE

Supplies up to 15.4 Watts of PoE power per port with a 31 Watt power budget

Ports

Four 10/100 Mbps PoE ports and one 10/100 Mbps port

Switching Capacity

1 Gbps switching capacity

Housing

Rugged metal enclosure

LED Indicators

LED indicators convey port status

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3af (15.4 Watts/port)
  • IEEE 802.3az
Device Interface
  • 4 x 10/100 Mbps PoE ports
  • 1 x 10/100 Mbps port
  • LED indicators
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Performance
  • Data RAM Buffer: 56 KB
  • Switch Fabric: 1 Gbps
  • MAC Address Table: 1 K entries
  • Forwarding rate: 0.744 Mpps (64-byte packet size)
Special Features
  • GREENnet energy saving technology
Power
  • Input: 110 – 240 V AC, 50/60 Hz, 0.75 A
  • Output: 48 V DC, 0.75 A
  • Consumption: 36 Watts (Max.)
PoE
  • PoE budget: 31 Watts
  • Pin 4, 5 for power+ and pin 7, 8 for power- (mode B)
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 141 x 95 x 30 mm (5.6 x 3.7 x 1.2 in.)
Weight
  • 337 g (12 oz.)
Certifications
  • CE
  • FCC
Warranty

PACKAGE CONTENTS
  • TPE-S50
  • Quick Installation Guide
  • Power adapter (48 V DC, 0.75 A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
