8-Port 10/100 Mbps PoE Switch

TPE-S44 (Version V3.0R)

4 x 10/100 Mbps PoE ports
4 x 10/100 Mbps ports
30 W PoE power budget
1.6 Gbps switching capacity
Sturdy metal switch
Plug and Play installation
Lifetime Warranty*

DISCONTINUED PRODUCT

The TPE-S44 (Version V3.0R) has been discontinued. It has been replaced by the TPE-S44 (Version v4.0R). For a list of discontinued products, click here.

TRENDnet's 8-Port 10/100 Mbps PoE Switch, model TPE-S44, offers 4 x 10/100 Mbps PoE ports, 4 x 10/100 Mbps ports, a 1.6 Gbps switching capacity, and a PoE power budget of 30 Watts. Plug and Play this sturdy metal switch for reliable high speed PoE networking.

PoE Camera Flexibility

Recognizes non-PoE and PoE (15.4 W) cameras (or other PoE devices) and supplies the required amount of power automatically.

Durable Install

This compact switch has a small footprint and the rugged metal housing improves product durability.

Fanless Design

Fanless design reduces energy consumption and operating noise, thereby supporting workstation/workgroup installations.

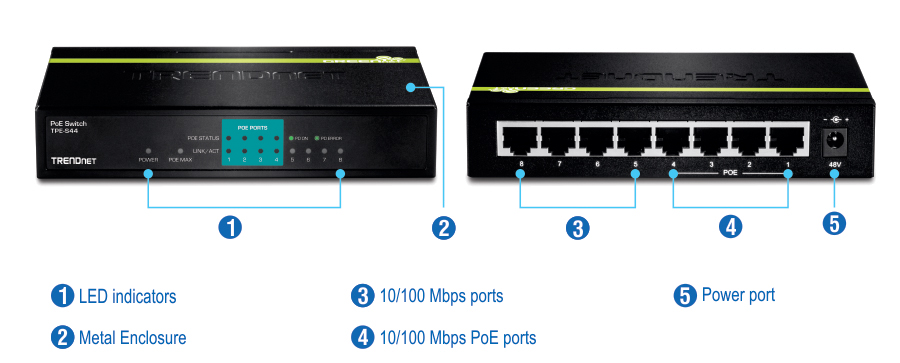

The diagram depicts the TRENDnet PoE Switch model TPE-S44. The front view highlights LED indicators for power, PoE status, and link/activity, along with a metal enclosure. The rear view displays eight 10/100 Mbps ports, with four of them being 10/100 Mbps PoE ports, and a power port labeled 48V. Features are labeled with numbers for easy identification.

PoE

Supplies up to 15 Watts of PoE power per PoE port with a 30 Watt power budget

Ports

4 x 10/100 Mbps PoE ports and 4 x 10/100 Mbps ports

Switching Capacity

1.6 Gbps switching capacity

Energy Savings

Embedded GREENnet technology reduces power consumption

Housing

Rugged metal enclosure

LED Indicators

LED indicators convey port status

Standards	IEEE 802.1p QoS IEEE 802.3 IEEE 802.3u IEEE 802.3af (15.4 Watts/port) IEEE 802.3az IEEE 802.3x
Device Interface	4 x 10/100 Mbps PoE ports (port 1~4) 4 x 10/100 Mbps Fast Ethernet ports LED indicators
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Performance	Data RAM Buffer: 96 KB Switch Fabric: 1.6 Gbps MAC Address Table: 2 K entries Forwarding rate: 1.19 Mpps (64-byte packet size)
Special Features	GREENnet energy saving technology
Power	Input: 110-240 V AC, 50/60 Hz, 0.75 A Output: 48 V DC, 0.8 A Consumption: 2.1 Watts (Max. without PD)
PoE	PoE budget: 30 Watts Pin 3, 6 for power+ and pin 1, 2 for power- (mode A)
Operating Temperature	0 – 45 °C (32 - 113 °F)
Operating Humidity	Max. 90% non-condensing
Dimensions	150 x 96 x 28 mm (5.9 x 3.8 x 1.1 in.)
Weight	370 g (12.9 oz.)
Certifications	CE FCC
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TPE-S44
Quick Installation Guide
Power adapter (48 V DC, 0.8 A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
