16-Port 10/100 Mbps 220 Watt AV PoE+ Switch

TPE-1016L (Version v1.0R)

  • 16 x PoE+ Ethernet ports
  • 220 Watt power budget
  • 3.2 Gbps switching capacity
  • Rack mount brackets included
  • Fanless design reduces energy consumption and operating noise
  • Rear panel ports for easy network integration with your AV rack
  • Convenient front-panel 4-digit seven-segment LED display
  • Lifetime Warranty*

TRENDnet's 16 Port Ethernet 220 Watt AV PoE+ Switch, model TPE-1016L, offers 16 x PoE+ Ethernet ports with a total Power budget of 220 Watts. View total power, available power, and power-per-port with a convenient front-panel 4-digit seven-segment LED display. Rear panel Ethernet ports and front panel LEDs easily integrate with your existing Audio & Video (AV) rack solution.

A network switch is connected to two security cameras via cables, with icons representing power over Ethernet (PoE) capabilities. The switch recognizes and supplies the necessary power for non-PoE, PoE (15.4 Watts), and PoE+ (30 Watts) cameras or other PoE devices automatically.

PoE Camera Flexibility

The switch recognizes non-PoE, PoE (15.4 Watts), and PoE+ (30 Watts) cameras (or other PoE devices) and supplies the required amount of power automatically.

A network switch with sixteen ports supplies power to connected devices. The switch, with a 220 Watt PoE power budget, supports up to sixteen Power over Ethernet devices. From left to right, the connected devices include a PoE camera, a wireless access point, and another PoE camera. The switch recognizes and supplies the necessary power for non-PoE, PoE (15.4 Watts), and PoE+ (30 Watts) cameras or other PoE devices automatically.

PoE Power

A 220 Watt PoE power budget supplies up to Sixteen Power over Ethernet devices with PoE power.

A network switch has sixteen 10/100 Mbps Ethernet ports that produce a 3.2 Gbps switching capacity, supporting edge network installations. From left to right, the connected devices include a PoE camera, a wireless access point, a desktop PC, and a wireless router.

Ethernet Networking

Sixteen 10/100 Mbps Ethernet ports produce a 3.2 Gbps switching capacity to support edge network installations.

AV Switches: Sample Applications
Application 1: Restaurants and Bars

In most business environment's, TRENDnet's AV switches will serve a dual purpose. The switches allow business owners to simultaneously manage AV equipment, IP surveillance cameras, and wireless access points.

Application 2: Homes with Multi-Room AV

TRENDnet AV Series Switches easily expands a home's existing wired network for high bandwidth devices, especially those devices dedicated to multimedia sharing and home surveillance.

Application 3: NVR and AV Switches Solution

With both sets of ports on the back, TRENDnet AV Series Switches are ideal for use with TRENDnet NVRs. The AV switches are equipped to provide all the power needed to run several TRENDnet surveillance cameras simultaneously.

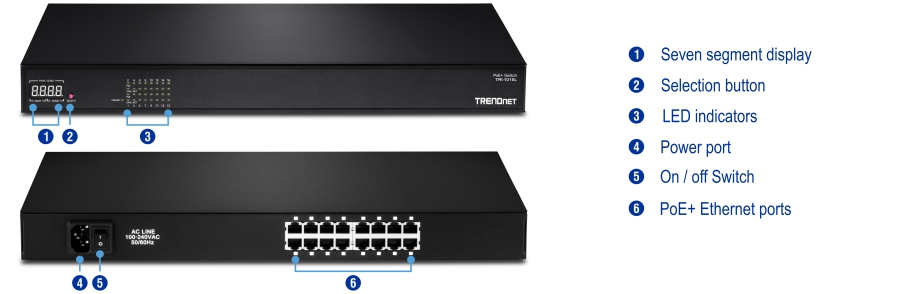

A network switch with labeled components shows the front view with a seven-segment display, a selection button, and LED indicators. The back view includes a power port, an on/off switch, and multiple PoE+ Ethernet ports, with labels for each component, making it easy to understand the functionality and connectivity options of the device.

Hardware Design

Rear panel Ethernet ports and front panel LEDs easily integrate with your existing Audio & Video (AV) rack solution.

7-Segment LED Display

View total power, available power, and power-per-port

Power Budget

Up to 220 Watts

Rack Mountable

Standard 19” 1U design (brackets included)

Fanless

Fanless design reduces energy consumption and operating noise.

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 16 x 10/100 Mbps Ethernet ports
  • LED indicators
  • 4-Digit Seven-Segment LED Display
Data Transfer Rate
  • Ethernet: 10 Mbps (half-duplex), 20 Mbps (full-duplex)
  • Fast Ethernet: 100 Mbps (half-duplex), 200 Mbps (full-duplex)
Performance
  • Broadcast storm control
  • Data RAM Buffer: 400 KB
  • Switch Fabric: 3.2 Gbps
  • MAC Address Table: 4 K entries
  • Forwarding rate: 2.3 Mpps (64-byte packet size)
Power
  • Input: 110 – 240 V AC, 50/60 Hz
  • Consumption: 7 Watts (Max. without PD)
  • PoE overall budget: 220 Watts
  • PoE budget per port: 30 Watts
  • Pin 1,2 for power+ and pin 3,6 for power- (mode A)
  • Over current protection
  • Short circuit protection
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 440 x 280 x 44 mm (17.3 x 11 x 1.7 in.)
Weight
  • 3.5 kg (7.7 lbs.)
Certifications
  • CE
  • FCC
  • UL
Warranty

PACKAGE CONTENTS
  • TPE-1016L
  • Quick Installation Guide
  • Rack mount kit
  • Power cord
