16-Port Gigabit Ethernet 220 Watt AV PoE+ Switch

TPE-3016L (Version v1.0R)

16 x Gigabit PoE+ ports
220 Watt power budget
32 Gbps switching capacity
Rack mount brackets included
Fanless design reduces energy consumption and operating noise
Rear panel ports for easy network integration with your AV rack
Convenient front-panel 4-digit seven-segment LED display
Lifetime Warranty*

TRENDnet's 16 Port Gigabit Ethernet 220 Watt AV PoE+ Switch, model TPE-3016L, offers 16 x Gigabit PoE+ ports with a total Power budget of 220 Watts. View total power, available power, and power-per-port with a convenient front-panel 4-digit seven-segment LED display. Rear panel Ethernet ports and front panel LEDs easily integrate with your existing Audio & Video (AV) rack solution.

A network device with multiple Ethernet ports is connected to two security cameras via Ethernet cables, indicating power over Ethernet (PoE) functionality. The device and cameras feature icons with lightning bolt symbols, reinforcing the PoE capability.

PoE Camera Flexibility

The switch recognizes non-PoE, PoE (15.4 Watts), and PoE+ (30 Watts) cameras (or other PoE devices) and supplies the required amount of power automatically.

A network device is depicted with multiple ports, including eight Ethernet ports and two additional ports on the right side. Below the device, two security cameras & a Wireless Access point are shown connected to the network device, with a label indicating 220 Watt. The cameras are connected to the Ethernet ports, suggesting a Power over Ethernet (PoE) setup.

PoE Power

A 220 Watt PoE power budget supplies up to sixteen Power over Ethernet devices with PoE power.

A network setup diagram with cylindrical tubes representing high-speed data transfer. Icons inside the tubes show different types of data like music notes, documents, and video files. Text in the center indicates gigabit speeds and jumbo frames up to 10 KB, with arrows showing the direction of data flow.

Gigabit Networking

All Gigabit ports produce a 32 Gbps switching capacity and support Jumbo Frames up to 10 KB.

AV Switches: Sample Applications

Application 1: Restaurants and Bars

In most business environment's, TRENDnet's AV switches will serve a dual purpose. The switches allow business owners to simultaneously manage AV equipment, IP surveillance cameras, and wireless access points.

Application 2: Homes with Multi-Room AV

TRENDnet AV Series Switches easily expands a home's existing wired network for high bandwidth devices, especially those devices dedicated to multimedia sharing and home surveillance.

Application 3: NVR and AV Switches Solution

With both sets of ports on the back, TRENDnet AV Series Switches are ideal for use with TRENDnet NVRs. The AV switches are equipped to provide all the power needed to run several TRENDnet surveillance cameras simultaneously.

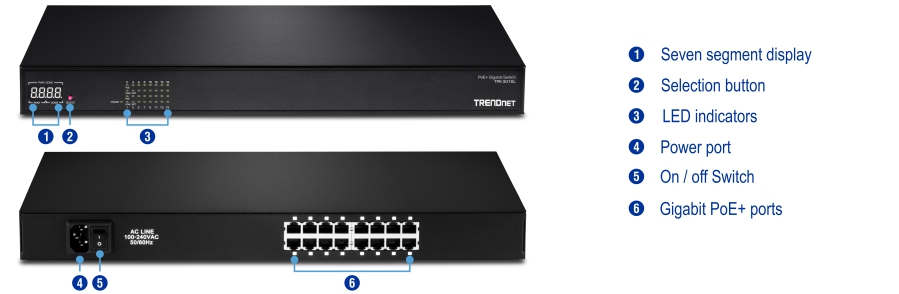

A network switch with labeled components includes a seven-segment display, a selection button, and LED indicators on the front. The back view features a power port, an on/off switch, and multiple Gigabit PoE+ ports, with labels providing clear identification of each part for easy reference.

Hardware Design

Rear panel Ethernet ports and front panel LEDs easily integrate with your existing Audio & Video (AV) rack solution.

7-Segment LED Display

View total power, available power, and power-per-port

Power Budget

Up to 220 Watts PoE+

Rack Mountable

Standard 19” 1U design (brackets included)

Fanless

Fanless design reduces energy consumption and operating noise.

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at
Device Interface	16 x Gigabit Ethernet ports LED indicators 4-Digit Seven-Segment LED Display
Data Transfer Rate	Ethernet: 10 Mbps (half-duplex), 20 Mbps (full-duplex) Fast Ethernet: 100 Mbps (half-duplex), 200 Mbps (full-duplex) Gigabit Ethernet: 2000 Mbps (full-duplex)
Performance	Broadcast storm control Data RAM Buffer: 400 KB Switch Fabric: 32 Gbps MAC Address Table: 4 K entries Forwarding rate: 23.8 Mpps (64-byte packet size)
Power	Input: 110 – 240 V AC, 50/60 Hz Consumption: 7 Watts (Max. without PD)
PoE	PoE overall budget: 220 Watts PoE budget per port: 30 Watts Pin 1,2 for power+ and pin 3,6 for power- (mode A) Over current protection Short circuit protection
Operating Temperature	0 – 40 °C (32 – 104 °F)
Operating Humidity	Max. 90% non-condensing
Dimensions	440 x 280 x 44 mm (17.3 x 11 x 1.7 in.)
Weight	3.5 kg (7.7 lbs.)
Certifications	CE FCC UL
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TPE-3016L
Quick Installation Guide
Rack mount kit
Power cord
