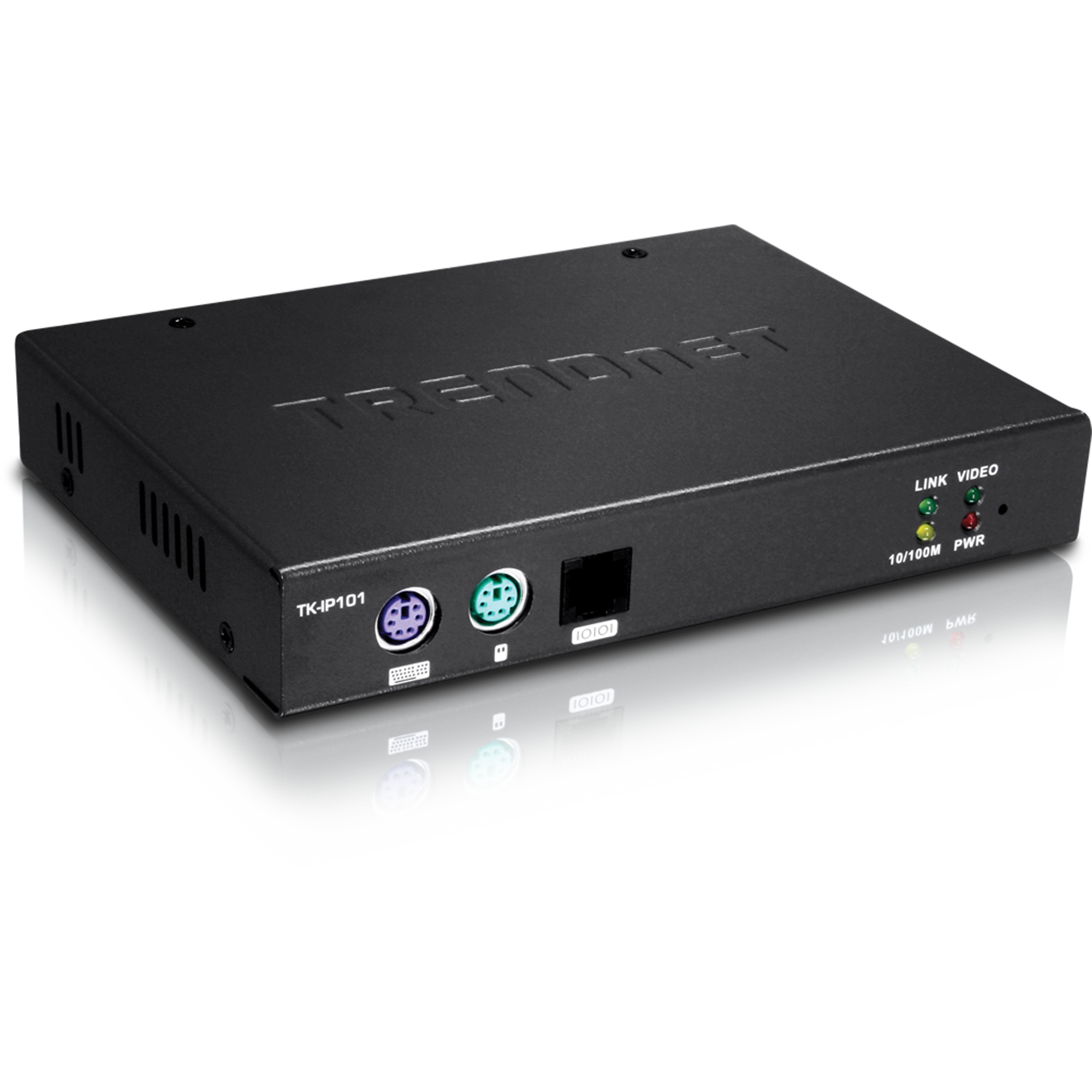

1-Port KVM Switch over IP

TK-IP101 (Version 1.0R)

  • Manage multiple servers from your network or remotely from any Internet connection
  • IP-based remote control server management for Windows and Java-based clients
  • An intuitive Web user interface provides control from BIOS level up to OS based applications

The 1-Port KVM Switch over IP (TK-IP101) provides cost effective remote server management for multiple users, regardless of server status. Eliminate the need to physically be in the server room to troubleshoot, reboot and edit pre-boot functions. Save resources and manage server and PC resources from around corner or around the world. Provides access to both Windows and Java-based clients. With up to 16 active user accounts the TK-IP101 supports 4 concurrent logins. An intuitive Web user interface provides controls from BIOS level functions to Windows based applications. Use the TK-IP101 with the TRENDnet's 8-Outlet Remote Power Controller (TK-RP08) to facilitate remote power cycling and rebooting.

  • Manage KVM switches and servers remotely over the Internet
  • Centralize management of multiple servers when connected to a conventional KVM switch
  • Save time and resources by managing resources remotely
  • Multiple user access control
  • Management of remote servers from BIOS level up to GUI level applications
  • Full 1024-bit PKI authentication and 256-bit SSL encryption
  • Enjoy crisp 1600x1200 resolution
  • Intuitive Web user interface permits upgrades and backups
  • Supports user friendly Telnet sessions and FTP access
  • Use with TRENDnet's TK-RP08 to control on/off power cycling of multiple devices remotely
  • Works with LDAP, RADIUS and Active Directory Servers
  • Ethernet RJ-45 and Serial PPP connections supported
  • PPP connection over serial RS-232 interface with data rates up to 1 Mbps
  • Works with Windows® and Java-based clients for cross-platform compatibility
  • Low bandwidth Internet connections supported with JPEG compression
  • 2-year limited warranty
Hardware
Number Of Server Ports
  • 1 X

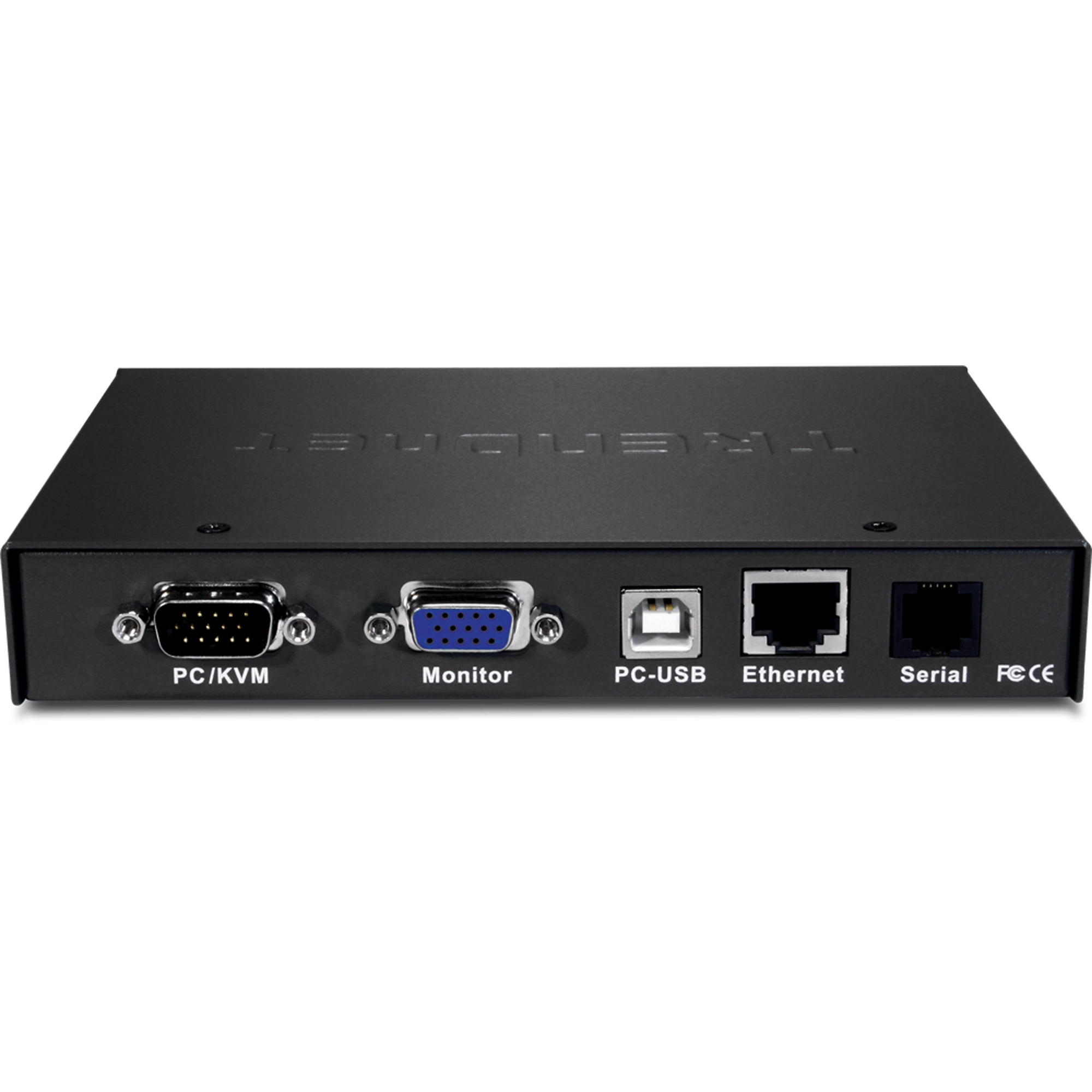

Server Or KVM Port Connectors
  • 1x HDB 15-Pin Male + Special Cable Assembly Providing VGA, PS/2 Mouse And PS2 Keyboard Connectors.
  • 1 x USB Type B
Remote Connections
  • Multiple Connections [Shared/Private/View Only Session]
Viewer Session
  • Shared/View Only – Multiple Users/Private – 1 User

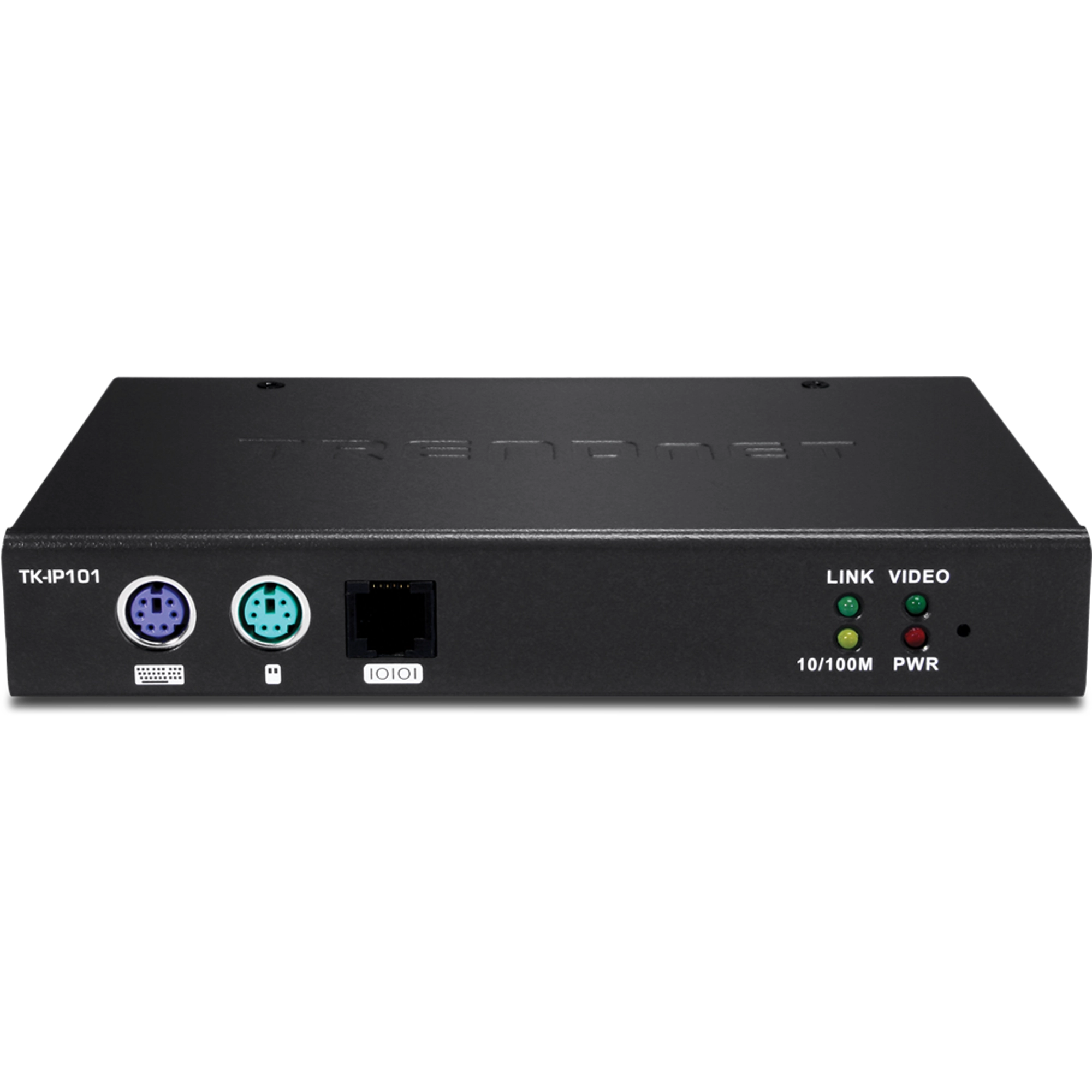

Local Console Connectors
  • 1 × PS/2 Keyboard 6-Pin Mini Din Female
  • 1 × PS/2 Mouse 6 Pin Mini Din Female
  • 1 × VGA HDB 15-Pin Female
PC Port Connectors
  • 1 X HDB15 (Integrated With PS/2 Keyboard And PS/2 Mouse
  • 1 X USB Type B (For USB Keyboard And USB Mouse)
Digital Connector
  • Rj-45
Ethernet Interface
  • 10/100 Base-T Connection With Auto-Sensing
Serial Console Port (Front)
  • RJ-12 Connector/115200 Bps Max - Used Only For Console Management
Serial Control Port (Back)
  • RJ-12/1Mpbs High-Speed Serial For Connect To External Modem/Power Control Device
Server Control Remote Interface
  • Win32 Viewer/JAVA Viewer
Management
  • With Any Browser Connected To The Embedded Web Server Via HTTPS Connection
Supported OS
  • Windows 98(SE)/ME/2000/XP/2003 Server/Vista/7/8/8.1
Encryption
  • SSL, Encryption With 256-Bit Ephemeral Keys
  • User Authentication Based On Password And PKI Certificates
Video Resolution
  • 1600 × 1200 Max.
Keyboard Emulation
  • PS/2 And USB
Mouse Emulation
  • PS/2 and USB
Remote Power On/Off
  • Yes*
Power Input
  • DC 9V 2A
Operation Temperature
  • 0 ~ 50°C
Storage Temperature
  • - 20 ~ 60°C
Humidity
  • 0~90% RH, Non-Condensing
Housing
  • Metal/0U
Dimension (L x W x H)
  • 16 x 11.5 x 2.5 cm
Safety/EMI Certification
  • FCC, CE

PACKAGE CONTENTS
  • TK-IP101
  • Multi-Language Quick Installation Guide
  • CD-ROM (User's Guide)
  • 1 x PS/2 KVM Cable (1.5 m/5 ft.)
  • 1 x USB Type B Cable (1m/3.3 ft.)
  • 1 x RJ-12 to Female Serial Port Cable (1m/3.3 ft.)
  • 1 x RJ-12 to male Serial Port Cable (1m/3.3 ft.)
  • 1 x RJ-12 to Parallel Port Cable (1m/3.3 ft.)
  • 1 x Power adapter (9 V DC 2 A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
