Outdoor 2 MP Full HD 1080p PoE+ IR Mini Speed Dome Network Camera

TV-IP430PI (Version v1.0R)

Full 1080p HD 2MP resolution
4x optical zoom, 16x digital zoom, and autofocus
Night vision up to 30 meters (100 ft.)
Outdoor IP66 weather rating
Endless 360° PTZ
Digital WDR optimizes high contrast lighting environments
Free pro-grade management software and mobile app
Separate mounting bracket required—TV-HC400, TV-HW400, TV-HP400, or TV-HN400

DISCONTINUED PRODUCT

The TV-IP430PI (Version v1.0R) has been discontinued. It has been replaced by the TV-IP440PI (Version v1.0R). For a list of discontinued products, click here.

TRENDnet's Outdoor 2 MP Full HD 1080p PoE IR Mini Speed Dome Network Camera, model TV-IP430PI, offers 4x optical zoom, 30 meter (100 feet) night vision, an IP66 weather rating, and endless 360 degree PTZ functionality. Record 2 Megapixel HD video (1920 x 1080) at 30 fps in a space saving H.264 compression format. Manage up to 32 TRENDnet cameras with included complimentary software and mobile apps. A separate mounting bracket is required—install with TRENDnet's TV-HC400, TV-HW400, TV-HP400, or TV-HN400.

Endless PTZ

Endless 360° pan/tilt/zoom, user defined 64x zoom, and autofocus capabilities maximize surveillance coverage.

Day/Night HD Surveillance

Full 1080p HD (2 MP) video at 30 fps in H.264 compression and 30 meter rated night vision provide 24-hour surveillance.

Outdoor Ready

Built for extreme environments with an IP66 weather rating and an operating temperature range of -30 – 65 °C (-22 – 149 °F).

The illustration displays four types of required mounting brackets, which are sold separately. The brackets are labeled as Ceiling Mount TV-HC400, Wall Mount TV-HW400, Pole Mount TV-HP400, and Corner Mount TV-HN400. Each bracket is shown with a clear visual representation, highlighting their distinct designs and intended mounting positions.

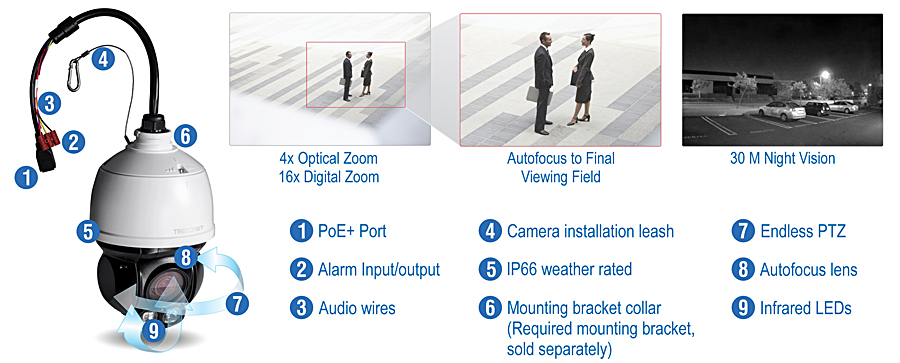

A surveillance camera with various features labeled. The camera has a PoE+ port, alarm input/output, audio wires, a camera installation leash, IP66 weather rating, a mounting bracket collar, endless PTZ, an autofocus lens, and infrared LEDs. The camera offers 4x optical zoom, 16x digital zoom, autofocus to the final viewing field, and 30-meter night vision.

2 Megapixel Full 1080p HD

Record 1920 x 1080 at 30 fps in the space saving H.264 compression format

Powerful Zoom

4x optical zoom and 16x digital zoom combine for a total 64x zoom factor with autofocus

Smart IR

Night vision up to 30 meters (100 ft.) automatically adjusts to the zoom factor

Endless PTZ

Endless 360° variable speed pan tilt zoom and user defined 3D zoom within the web interface

Outdoor Rated

Built for extreme environments with an IP66 weather rating and an operating temperature range of -30 – 65 °C (-22 – 149 °F)

PoE+

Compatible with 802.3at PoE+ injectors or switches

Additional Mounting Bracket Required

Separate mounting bracket required—install with TRENDnet's TV-HC400, TV-HW400, TV-HP400, or TV-HN400

Auto Patrol

Choose pre-defined or program auto patrol sequences with varying zoom levels

Storage

Record video to a Samba client or to a Micro SD card (up to 64 GB sold separately)

Tamper Detection

Receive tamper detection video clips via email, ftp, or save to Samba client or Micro SD card

D-WDR

Improved image quality and autofocus in high contrast lighting environments with Digital Wide Dynamic Range technology

Recording Schedule

Define a weekly recording schedule

IPv6

IPv6 support

ONVIF

ONVIF compliant

Complimentary Software

Complimentary pro-grade software to manage up to 32 TRENDnet cameras

Complimentary Apps

Live video to a mobile device with free iOS® and Android™ apps

Lens	Focal length: 2.8 - 12 mm Focal depth: 10 – 1,500 mm (Wide-Tele) Aperture: F1.6 – 2.7 (Wide - Tele) Sensor: 1/2.8” Progressive Scan CMOS Focus: auto, semi-auto, and manual Iris control: auto and manual
Viewing Angle	Horizontal: 115 - 33.8° (Wide – Tele)
Zoom	Combined zoom factor: 64x Optical: 4x Digital: 16x Speed: 1s
Pan/Tilt	Pan: endless 360° Tilt: -10 - 90° (auto flip) Pan speed: (manual) 0.1 - 160°/s, (preset) 160°/s Tilt speed: (manual) 0.1 - 120°/s, (preset) 120°/s Number of presets: 256 Patrol: 8 patrols, up to 32 presets per patrol Scheduled PTZ: create detailed weekly schedule with the following activity options: auto scan, frame scan, random scan, patrol, pattern, preset, panorama scan, tilt scan, dome reboot, and dome adjust
Minimum Illumination	IR off: color: 0.05 lux, B/W: 0.01 lux IR on: 0 lux 30 m IR illumination distance Smart IR: automatically adjusts wide angle and narrow focus IR to match zoom ratio
Video	Digital Wide Dynamic Range (D-WDR) Backlight Compensation (BLC) 3D Digital Noise Reduction (DNR) Shutter speed: 1 - 1/10,000s H.264 resolution: 1920 x 1080 up to 30 fps MJPEG resolution: 704 x 480 up to 30 fps
Audio	2-way audio supported (mic and speaker not included) External microphone line in / speaker line out
I/O	External input/output for alarm installation
Micro SD	Up to 64 GB micro SD card support
Hardware Standards	IEEE 802.1X IEEE 802.3 IEEE 802.3u IEEE 802.3at
Device Interface	10/100 Mbps PoE+ port Power connector (for non-PoE installation) Audio wires (in/out/ground) Micro SD card slot (64 GB max.) Alarm I/O wires Suspension cable holds the camera during installation
Input / Output	Alarm input: 1 ( 0 – 5v DC) Alarm output: 1 relay output Audio input: 1 audio line in, 2 – 2.4 V; impedance: 1000 Ω, ± 10% Audio output: 1 output line out, impedance: 600 Ω
Housing	Weather rating: IP66 TVS 4,000 V lightning, surge, and voltage transient protection Built-in automatic heater for cold weather conditions
Network Protocol	IPv4, IPv6, UDP, TCP, IGMP, ICMP, ONVIF v2.2 DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP (v1, v2c, v3) CIFS/SMB, NFS HTTP, HTTPS PPPoE UPnP, RTSP, RTP
Operating Temperature	-30 - 65 °C (-22 - 149 °F)
Operating Humidity	Max. 90% non-condensing
Certifications	CE FCC
Dimensions	155 x 155 x 235 mm (6.1 x 6.1 x 9. in.)
Weight	2 kg (4.4 lbs.)
Power (Power brick not included)	Input: PoE+ (IEEE 802.3at) Consumption: 20 /14 Watts max. (IR and heater on/off)
Required Mounting Accessories (not included)	Ceiling mount: TV-HC400 Pole mount: TV-HP400 Wall mount: TV-HW400 Corner mount: TV-HN400
Management Interface	Multi-language support: English, French, German, Russian, and Spanish IP address filter QoS traffic prioritization Time, date, and text overlay Image settings: brightness, contrast, saturation, limit gain, sharpness, focus mode, minimum focus, exposure mode, smart IR, video standard, day/night switch, sensitivity, mirror, slow shutter, D-WDR, lens initialization, BLC, white balance, digital noise reduction, noise reduction level, Defog mode, zoom limit, HLC D-WDR enhances video quality in high contrast daytime lighting 3D DNR Digital Noise Reduction enhances night vision quality Scheduled recording: continuous and motion detection Video storage: to computer, NAS, CIFS/SMB share, NFS, Micro SD card, FTP server, or through software Motion detection fields: define custom motion detection areas, motion sensitivity, and dynamic motion analysis Smart privacy masks: custom privacy masks are fixed to an area of interest as the camera pans and tilts Tamper detection: email notification if the viewing field is suddenly obscured Browser video playback: advanced playback functionality with visual timeline displaying detected motion and scheduled recordings Alert messages: storage full, storage error, and illegal login Snapshot: real time snapshot, motion detection with schedule, tamper detection with schedule Supported dynamic DNS services: dyn.com and No-IP.org Management Setting: maximum 32 user accounts Supports remote management Storage logs: Alarm, Exception, Operation, and others Compatibility: Internet Explorer^® 9.0 or higher, Safari^® 5.0 or higher
TRENDnetVIEW Pro Software	Supports up to 32 TRENDnet cameras Multiple language support Set recording options (motion detection, schedule, event trigger) Search and playback Custom viewing modes and options Compatibility: Windows^® 10, 8.1, 8, 7, Vista, XP, Windows Server^® 2003, 2008
TRENDnetVIEW App	Free iOS and Android^™ app View your camera on your mobile device Take snapshots Pan/Tilt/Zoom
Warranty	3 year limited

PACKAGE CONTENTS

TV-IP430PI
CD-ROM (Software & User's Guide)
Quick Installation Guide

Compatible NVR: www.trendnet.com/info/tv-nvr104
* PoE+ (802.3at) switch or injector required.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
