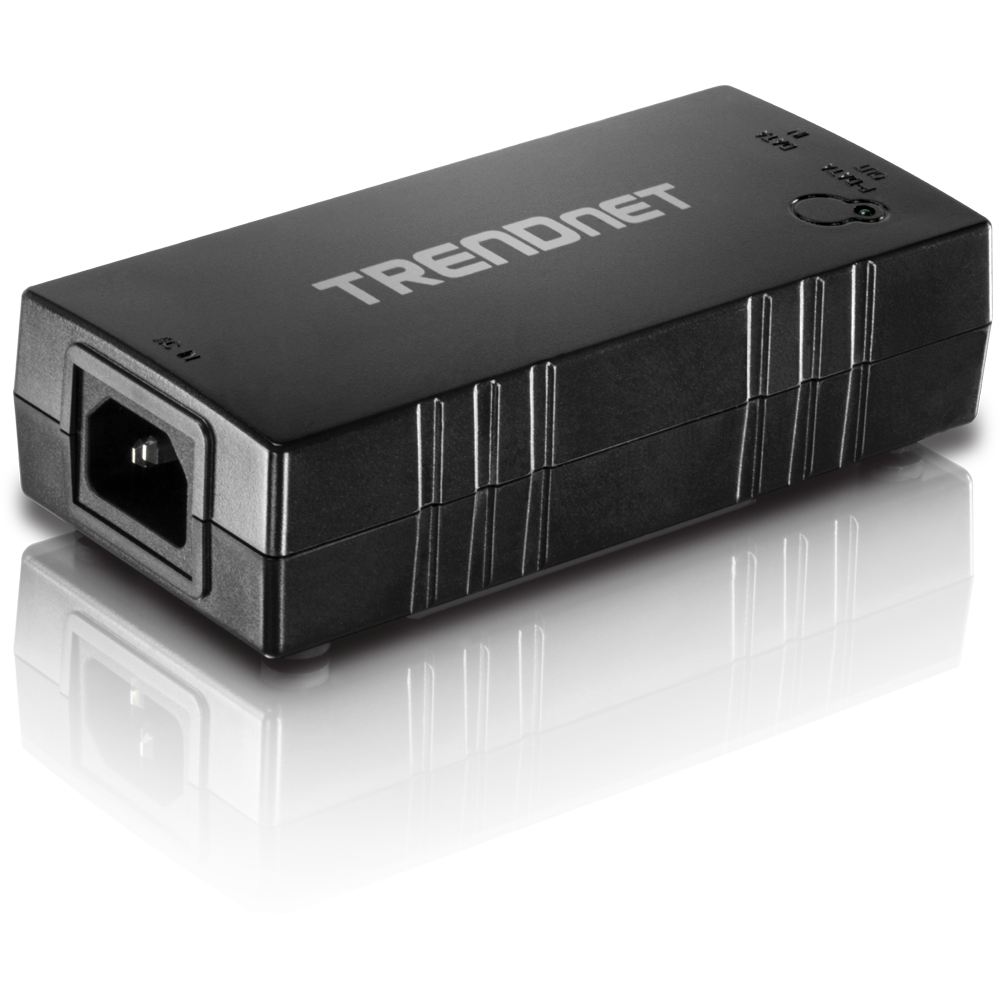

Gigabit PoE+ Injector

TPE-115GI (Version v1.0R)

  • Full Duplex Gigabit speeds
  • Converts a non-PoE Gigabit port to a PoE+ or PoE Gigabit port
  • Integrated power supply
  • Network distances of up to 100 meters (328 feet)
  • Save on installation and equipment costs
DISCONTINUED PRODUCT
The TPE-115GI (Version v1.0R) has been discontinued. It has been replaced by the TPE-115GI (Version v2.1R). For a list of discontinued products, click here.

The Gigabit PoE+ Injector, model TPE-115GI, combines electrical power with a Gigabit network connection to produce a Gigabit Power over Ethernet Plus (PoE+) signal. Connect this device to a non-PoE Gigabit switch and then run an Ethernet cable for up to 100 meters (328 ft.) to network PoE+ or PoE devices. The integrated power supply reduces installation clutter.

Auto sensing technology delivers 30 Watts to 802.3at PoE+ devices or 15 Watts to 802.3af PoE devices. No need to buy a PoE switch—use an existing open port from a non-PoE switch to save installation and equipment costs when installing TRENDnet PoE access points and IP cameras in remote locations.

  • IEEE 802.3at PoE+ (30 Watt) compliant
  • Backwards compatible with IEEE 802.3af PoE (15 Watt) devices
  • Automatically supplies a PoE+ (30 Watts) or PoE (15 Watts) connection to the device
  • Integrated power supply
  • Network devices for distances of up to 100 meters (328 ft.)
  • 1 x 10/100/1000 Mbps Auto-MDIX Data In port
  • 1 x 10/100/1000 Mbps PoE+ Auto-MDIX Data Out port
  • Power port with LED indicator
  • Easily install a PoE+ or POE device where a power outlet is not available
  • Reduce installation and network equipment costs
  • Safeguards network devices with short circuit protection
  • 3-year limited warranty
Hardware
Standard
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
  • IEEE 802.3ab Gigabit Ethernet
  • IEEE 802.3af Power over Ethernet
  • IEEE 802.3at Power over Ethernet Plus (PoE+)
Network Media
  • 10 Mbps: UTP/STP Cat. 5 and 5e up to 100 meters
  • 100 Mbps: UTP/STP Cat. 5 and 5e up to 100 meters
  • Gigabit: UTP/STP Cat 5e and 6 up to 100 meters
Ports

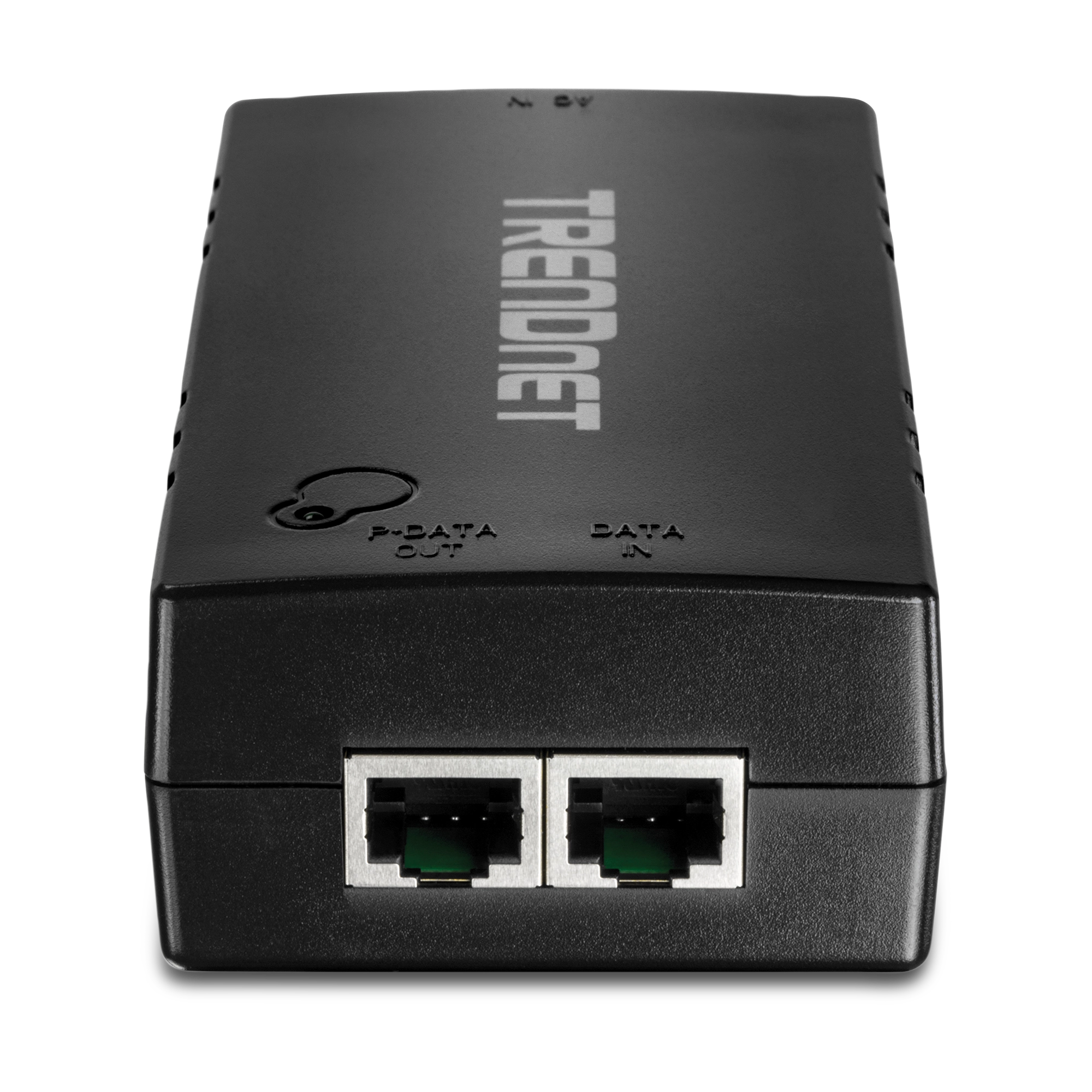

  • 1 x 10/100/1000 Mbps Data-In (Data only)
  • 1 x 10/100/1000 Mbps PWR+Data out (Data + Power)
PoE Delivery
  • Pair 1: Pin 1, 2
  • Pair 2: Pin 3, 6
Power

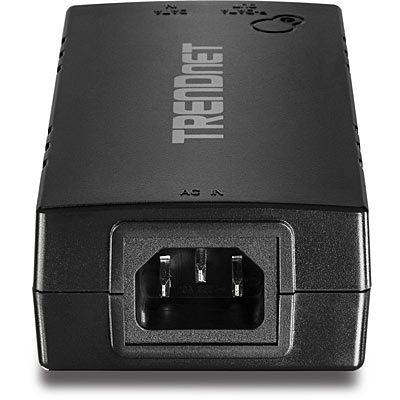

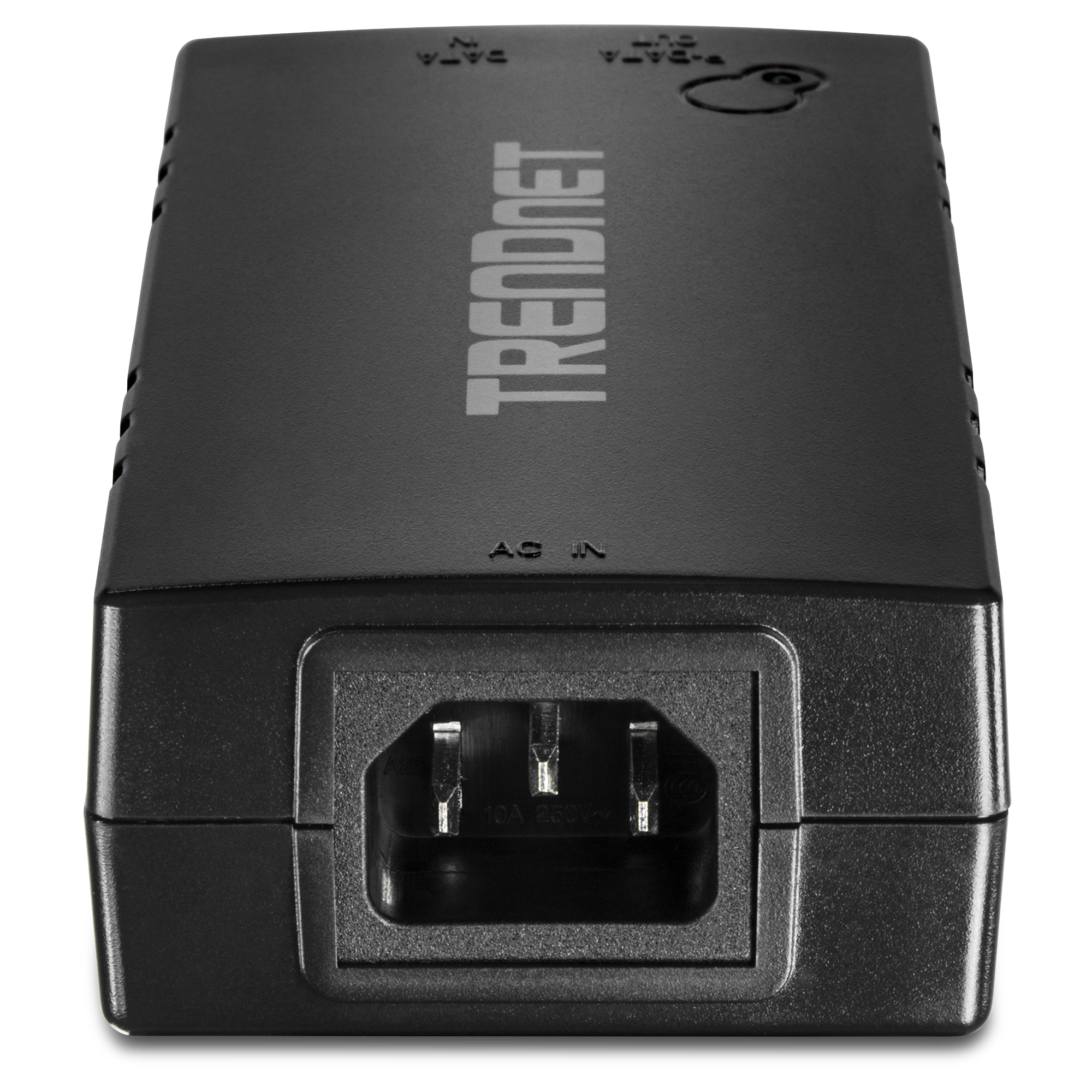

  • Input: 100~240 V, 50~60 Hz, 0.65 A max.
Power Consumption
  • Max 30 Watts
Dimensions(W x D x H)
  • 133 x 63 x 35 mm (5.2 x 2.5 x 1.4 in.)
Weight
  • 162 g (5.7 oz.)
Temperature
  • Operation: -10°C~45°C (14°F~ 113°F)
  • Storage: -20°C~60°C (-4°F~140°F)
Humidity
  • Max 95% (non-condensing)
Certifications
  • CE, FCC

PACKAGE CONTENTS
  • TPE-115GI
  • Quick Installation Guide
  • Power cord

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
