Powerline 1200 AV2 Adapter with Built-in Outlet

TPL-421E (Version v1.0R)

  • Extreme Powerline 1200 networking over existing electrical lines
  • Never lose an electrical outlet with the built-in socket
  • Enhanced performance and range from MIMO with Beamforming technology
  • Simply plug in the adapters—TRENDnet adapters auto-connect out of the box
  • Pre-encrypted for your convenience
  • Gigabit port maintains high performance wired networking
  • Connects over electrical lines for homes up to 465 sq. m (5,000 sq. ft.)
  • Two adapters are needed to start a network

TRENDnet's Powerline 1200 AV2 Adapter with Built-in Outlet, model TPL-421E, creates an extreme performance Powerline 1200 network using an existing electrical system. Two adapters are needed to start a network. No CD installation required—encrypted TRENDnet adapters auto-connect out of the box. Plug in the first adapter and network it to your existing router. Plug in other adapters on the same electrical system and they auto-connect to the first adapter for immediate internet access. Never lose an electrical outlet with the built-in socket.

A hand holds a TRENDnet Powerline adapter near an electrical outlet on a wall. The adapter is white and rectangular with ventilation slots on the side and a plug on the back. The outlet on the wall has two standard sockets. The setup demonstrates the simplicity of installing the adapter by plugging it into the existing electrical system, with auto-connection over an encrypted Powerline signal.

Plug In Install

Simply plug in TRENDnet adapters! The encrypted Powerline signal auto-connects over an existing electrical system.

A person is stretching in front of a television screen showing a fitness class. The television is connected to a Powerline 1200 AV2 Adapter plugged into a wall outlet, highlighting the adapter's ability to deliver fast and stable networking for device connectivity and 4K video streaming.

For Busy Homes

Powerline 1200 technology and a Gigabit port deliver incredibly fast and stable networking to seamlessly connect devices and stream 4K video.

A hand is plugging a three-pronged electrical plug into a TRENDnet powerline adapter that is already plugged into a wall outlet. The adapter has a built-in outlet on its front, allowing another device to be plugged in without losing the use of the wall outlet. The adapter also has three indicator lights on its side.

Built-In Outlet

With so many devices needing power, you don't lose an outlet when plugged in. Plug the adapter into an outlet, then plug a power strip into the adapter.

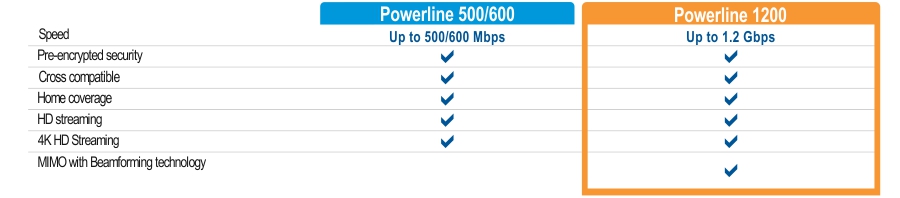

A comparison chart showcases two Powerline models: Powerline 500/600 and Powerline 1200. Powerline 500/600 offers speeds up to 500/600 Mbps, while Powerline 1200 offers speeds up to 1.2 Gbps. Both models feature pre-encrypted security, cross-compatibility, home coverage, and HD streaming. Powerline 1200 additionally supports 4K HD streaming and MIMO with Beamforming technology.

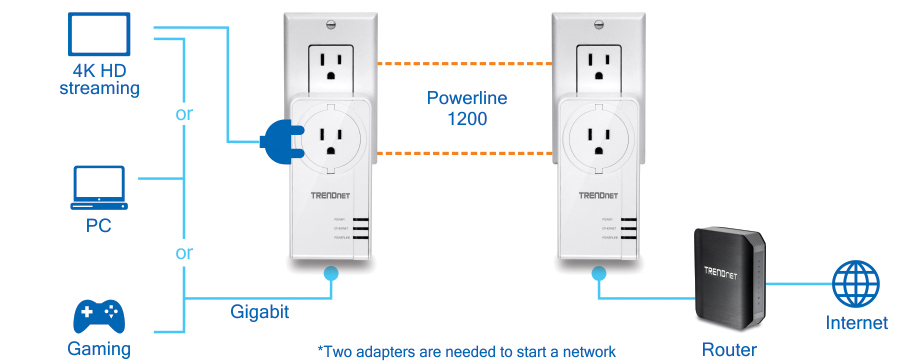

The diagram illustrates a network setup using two Trendnet Powerline 1200 adapters. One adapter is connected to a router, which is linked to the internet. The other adapter is connected to devices such as a PC, a gaming console, or a 4K HD streaming device via a gigabit connection. The adapters are plugged into electrical outlets and communicate with each other through the Powerline 1200 connection. The text notes that two adapters are needed to start a network.

Powerline 1200

Extreme Powerline networking over existing electrical lines use all three electrical wires: the live, neutral, and ground wires to achieve ground breaking networking throughput speeds**

Whole Home Coverage

Connects over electrical lines for homes up to 465 sq. m (5,000 sq. ft.) or over an electrical power line for a linear distance of 300 m (980 ft.)

Built-In Outlet

Never lose an electrical outlet with the built-in socket—Plug the adapter into an outlet, then plug a power strip into the TPL-421E to power other devices

MIMO with Beamforming Technology

Enhanced performance and range from MIMO with Beamforming technology

Gigabit Port

Gigabit port extends high performance wired connections

Noise Filter

Advanced electrical noise filter boosts performance

Network Stability

Ultra-stable Powerline networking is preferred by internet service providers

Multiple Adapters

Two adapters are needs to start a network—use up to 8 adapters to network an entire home

No CD Installation

Simply plug in the adapters—TRENDnet adapters auto-connect out of the box

Cross Compatible

Backward compatible with all Powerline 600, 500, and 200 adapters

Pre-Encrypted

For your convenience the adapter arrives pre-encrypted

Sync Button

Press the Sync button to change existing encryption keys

Energy Savings

Power Save mode reduces electrical consumption by up to 80%

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 1901

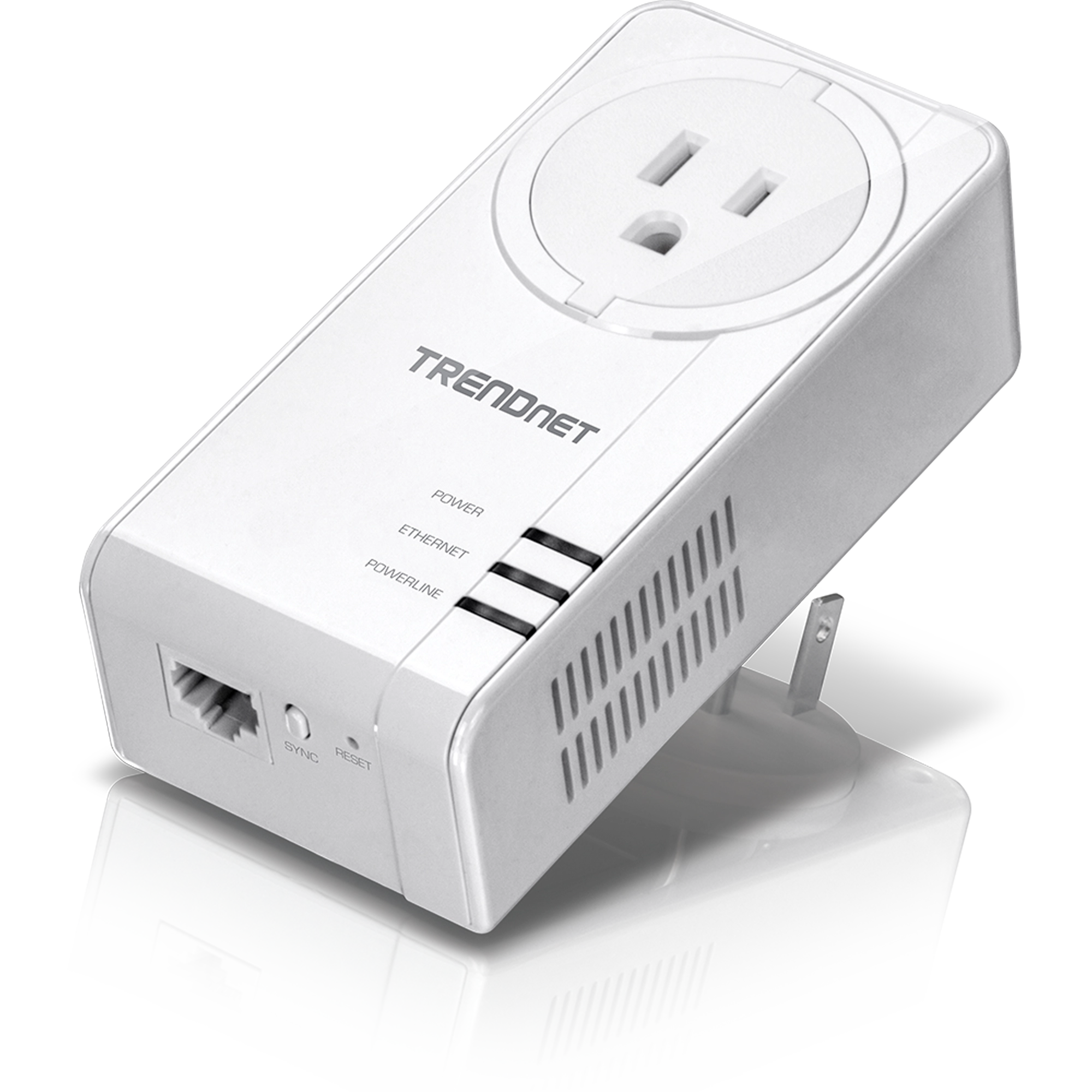

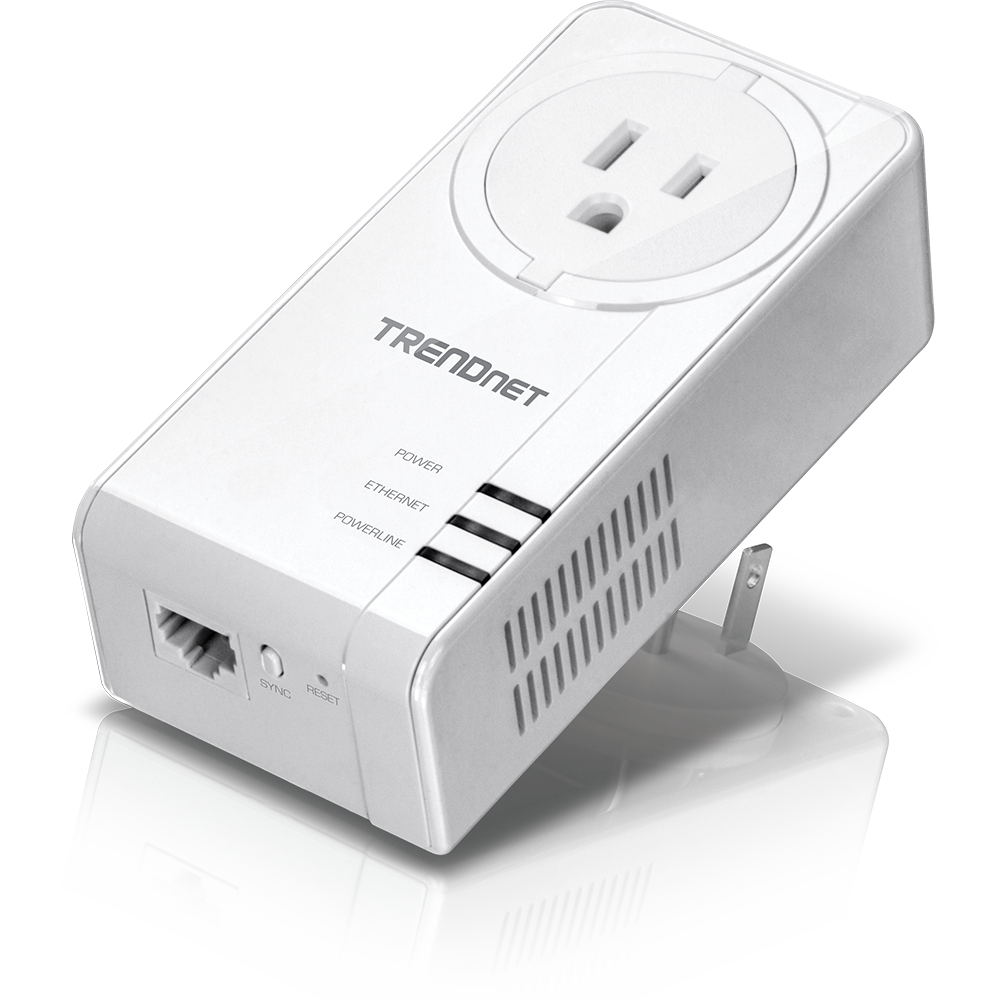

Device Interfaces
  • Device Interfaces
  • Gigabit Ethernet port
  • Sync (changes encryption key)/reset button
  • Status LEDs
  • Built-in electrical power socket with noise filter
  • A: North America Type B (NEMA 5–15) (10 A max. @ 120 V AC)
  • EU: Euro Type C (CEE 7/16) (16 A max. @ 250 V AC)
  • UK: United Kingdom Type G (BS 1363) (13 A max. @ 250 V AC)
  • Power plug
  • A: North America Type B (NEMA 5–15)
  • EU: Euro Type C (CEE 7/16)
  • UK : United Kingdom Type G (BS 1363)
Frequency Band
  • 2 – 68 MHz
Data PHY Rate
  • Up to 1200 Mbps
Networking Distance
  • Up to 300 m (980 ft.) linear distance over electrical power lines
Encryption
  • 128-Bit AES (Advanced Encryption Standard)
Optional Utility: OS Compatibility
  • Windows® 10, 8.1, 8, 7, Vista, XP
Nodes
  • Up to 8 (max.)
Overlapping Powerline Networks
  • Up to 4 (per electrical system)
Outlet Current
  • 110V AC, 20A (max.)
  • 220V AC, 16A (max.)
Power
  • Input: 100 – 240 V AC, 50/60 Hz
  • Consumption: Active mode: 2.7 Watts (max.); Standby mode: 0.34 Watts (max.)
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 90 % non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 112 x 68 x 40 mm (4.4 x 2.7 x 1.1 in.)
Weight
  • A: 104 g (3.7 oz.)
  • EU: 190 g (6.7 oz.)
  • UK: 190 g (6.7 oz.)
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TPL-421E
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility & User's Guide)
  • Network cable (1.5 m/5 ft.)

* Maximum of 8 adapters (nodes) recommended for streaming video across your network.
** 1.2 Gbps is the maximum theoretical Powerline data rate when connected to another Powerline 1200 device. Data throughput may vary by circuit wire conditions. If an electrical system does not have a grounded connection, the theoretical networking speed is reduced to 600 Mbps.
*** Powerline communication works on a single electrical system. (Usually controlled by a single distribution panel). Power strip, GFCI outlets, and AFCI circuit breakers may degrade Powerline network signals.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
