AC1900 Dual Band Wireless Router

TEW-818DRU (Version v1.0R)

AC1900: 1300 Mbps Wireless AC + 600 Mbps Wireless N bands
High speed USB 3.0 and USB 2.0 share ports
Pre-encrypted for your convenience
Create an isolated guest network
One touch network connection with the WPS button
All Gigabit wired ports
High power amplifiers extend wireless coverage

TRENDnet's AC1900 Dual Band Wireless Router, model TEW-818DRU, is an extreme performance wireless router. It creates two concurrent wireless networks—a 1.3 Gigabit Wireless AC network and a 600 Mbps Wireless N network to connect common wireless devices. Use the high speed USB 3.0 port and Gigabit Ethernet ports to further expand your network.

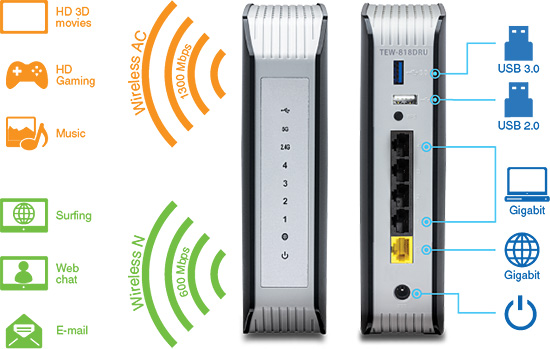

A wireless router with icons representing activities like HD 3D movies, HD gaming, music, surfing, web chat, and email. Wireless AC supports speeds of 1300 Mbps for HD 3D movies, HD gaming, and music, while Wireless N supports 600 Mbps for surfing, web chat, and email. The router has front and back views with indicator lights for power, 2.4G, 5G, and four numbered indicators on the front, and USB 3.0, USB 2.0, four gigabit Ethernet ports, a yellow WAN port, and a power button on the back. The model is TEW-818DRU.

Ease of Use

Easy Setup

Get up and running in minutes with the intuitive guided setup

One Touch Connection

Connect to the router at the touch of the Wi-Fi Protected Setup (WPS) button

USB Share Ports

Plug in a flash or storage drive into the 5 Gbps USB 3.0 port or the USB 2.0 port

Multi Language

Multi Language Interface: English, Spanish, French, German, and Russian

Encryption

Encrypted Wireless

For your convenience the router arrives pre-encrypted with its own unique password

Guest Network

Create a isolated network for guest internet access only

Parental Controls

Control access to specific websites or types of content

Performance

Next Generation Wireless AC

802.11ac provides uninterrupted HD video streaming in a busy connected home

Simultaneous Dual Band

High speed 1300 Mbps Wireless AC band + 600 Mbps Wireless N

Gigabit Ports

Gigabit ports extend high performance wired connections

Wireless Coverage

Whole home wireless coverage for average size homes

Backward Compatible

Compatible with legacy wireless devices

Targeted Beamforming

Increased real-time performance by directing stronger wireless to your specific location

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n (2.4 GHz up to 600 Mbps TurboQAM*, 5 GHz up to 450 Mbps) IEEE 802.11ac (draft 2.0, up to 1.3 Gbps)
Hardware Interface	4 x Gigabit LAN ports 1 x Gigabit WAN port 1 x USB 3.0 (Storage FTP, Samba, Printing) 1 x USB 2.0 (Storage FTP, Samba, Printing) Power switch (EU only) WPS button LED indicators
Encryption	Wireless encryption up to WPA2 Firewall: NAT, SPI Parental (Access) Controls: MAC, URL, IP Filter
System Requirements	Optional USB Printing utility: Windows: 8.1, 8, 7, Vista, XP; Mac OS X: 10.9, 10.8, 10.7, 10.6, 10.5, 10.4
Special Features	QoS Management IPv6 support (6to4 and Native) WDS support Up to 2 additional SSID per band 1 guest network per band with option for Internet access only Dynamic DNS support for dyn.com and no-ip.com Samba/FTP server support Multi-Language interface: English, French, Spanish, German, Russian
Antenna Gain	2.4 GHz: 6 dBi (max.) internal/5 GHz: 6 dBi (max.) internal
Wireless Output Power/Receiving Sensitivity	802.11a: FCC: 22 dBm, ETSI: 18 dBm (max.)/ -68 dBm (typical) @ 54 Mbps 802.11b: FCC/ETSI: 19 dBm (max.)/ -84 dBm (typical) @ 11 Mbps 802.11g: FCC/ETSI: 18 dBm (max.)/-72 dBm (typical) @ 54 Mbps 802.11n: FCC/ETSI: 18 dBm (max.)/-68 dBm (typical) @ 600 Mbps 2.4 GHz 802.11n: FCC: 22 dBm, ETSI: 18 dBm (max.)/ -68 dBm (typical) @ 450 Mbps 5 GHz 802.11ac: FCC: 23 dBm, ETSI: 19 dBm (max.)/ -55 dBm (typical) @ 1.3 Gbps
Power	Input: 100 – 240 V AC, 50 - 60 Hz, 0.8 A Output: 12 V DC, 2 A Consumption: 22 Watts (Max.)
Operating Temperature	0 - 40° C (32 - 104° F)
Operating Humidity	Max. 90% non-condensing
Certifications	CE FCC
Dimensions	48 x 155 x 180 mm (1.8 x 6.1 x 7.1 in.)
Weight	395 g (14 oz.)
Warranty	3 year limited

PACKAGE CONTENTS

TEW-818DRU
Multi-Language Quick Installation Guide
CD-ROM (Utility & User's Guide)
Network cable (1.5 m/5 ft.)
Power adapter (12 V, 2 A)

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and cover-age will vary depending on interference, network traffic, building materials and other conditions. 802.11n 2.4 GHz TurboQAM speeds requires clients with TurboQAM support.
** Printer Control Center utility installation required for each computer in order to access the printer.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
