Product Families » USB / FireWire » USB / FireWire Combo Devices » TFU-H33PI

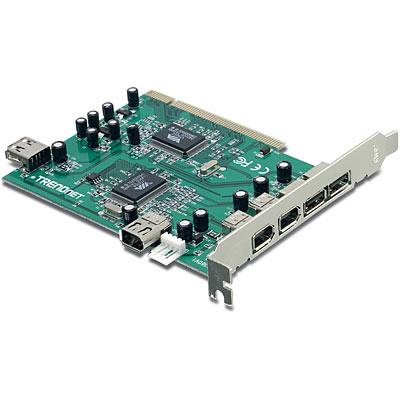

6-Port USB/FireWire Combination PCI Adapter
TFU-H33PI (Version 1.1R)

Enjoy 3 FireWire and 3 USB ports on one easy to install PCI card
Instantly connect any USB or FireWire peripheral of your choice
Transfer data from cameras, storage devices, MP3 players and more

Click on image to enlarge

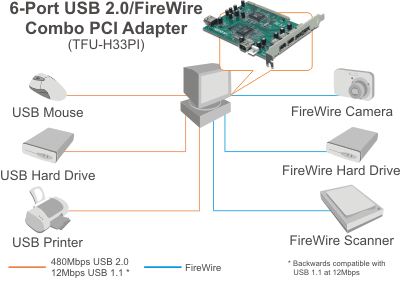

This 6-Port USB 2.0/FireWire Combo PCI Adapter provides your USB-enabled Desktop PC with a myriad of connections for peripherals. Its three USB 2.0 ports and three IEEE 1394 FireWire ports are perfect for connecting digital cameras, external hard-drives, printers, and other peripherals.

3 x IEEE 1394 FireWire Ports, Compliant with IEEE1394A Standard and Backward Compatible with IEEE 1394-1395 Devices
3 x USB 2.0 Type A Ports, Compliant with USB 2.0 and USB 1.1 Specifications
32-bit 33Mhz Host Interface Compliant to PCI Specification 2.2
OHCI 1.1 (Open Host Controller Interface) Compliant
EHCI .95 (Enhanced Host Controller Interface) Compliant
Provides High Speed USB Data Transfer Rate up to 480Mbps
Provides High Speed FireWire Data Transfer Rate up to 400Mbps
Provides Software Interrupt Control
Supports up to 127 USB Devices
Supports up to 63 FireWire Devices
Compatible with Windows 98SE/ME/2000/XP (32/64-bit)/Vista (32/64-bit)
Supports Plug & Play and Easy Installation
2-year limited warranty

Hardware
Interface:	32-bit PCI rev. 2.2
Standards:	IEEE 1394A, 1394-1395 USB 2.0/1.1/1.0
USB Controller:	OHCI, EHCI

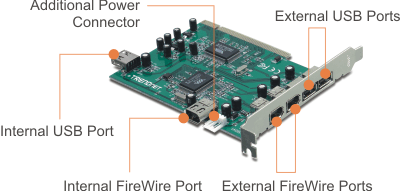

Ports:	FireWire (6-pin IEEE 1394): -1 x Internal FireWire Port -2 x External FireWire Ports USB 2.0 (Type A) - 1 x Internal USB 2.0 Port - 2 x External USB 2.0 Ports
OS Compliant:	Windows 98SE/ME/2000/XP (32/64-bit)/Vista (32/64-bit)
Data Rate:	FireWire:- 100/200/400Mbps USB 2.0:- 1.5/12/480Mbps
Power Consumption:	500mA (max) per port
Dimensions (LxWxD):	134 x 121 x 21.6mm (5.3 x 4.76 x 0.85 inches)
Weight:	66g (0.15lb)
Temperature:	Operating: 0° ~ 40° C (32° ~ 104° F) Storage: -10° ~ 45° C (14° ~ 113° F)
Humidity:	0% ~ 85% (Non-Condensing)
Certification:	FCC, CE


System Requirements
Intel Pentium, 233MHz or Faster Windows 98(SE)/ME/2000/XP 64MB RAM or More Available PCI Version 2.2 Slot CD-ROM Drive for Driver Installation

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Knowledgebase

Package Contents

TFU-H33PI
Quick Installation Guide
Driver CD-ROM
