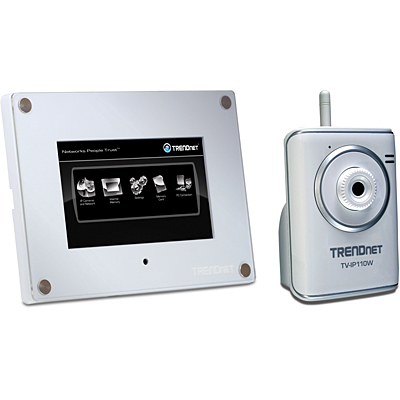

SecurView 7” Wireless Camera Monitor Kit
TV-M7110WK (Version 1.0R)
  • Monitor your home or business with the included Wireless Network Camera Server and 7” Wireless Network Camera and Photo Monitor
  • View up to 4 TRENDnet cameras on one screen or scan between cameras (additional cameras sold separately)
  • Works independently of your computer¬†
  • Program motion detection alerts and schedule recording sessions from the Wireless Network Camera Server



 DISCONTINUED PRODUCT
The TV-M7110WK (Version 1.0R) has been discontinued.  For a list of discontinued products, click here.

The 7” Wireless Network Camera Monitor Kit (model TV-M7110WK) provides real time monitoring for a key entry point, property, public area, baby room or other sensitive areas. Install the Wireless Network Camera Server (model TV-IP110W) in the desired location. The world’s first 7” Wireless Network Camera and Photo Monitor (model TV-M7) then connects to your wireless network, detects the Wireless Network Camera Server and streams camera video in real time.

Users previously needed a computer to view Network Camera streaming video. Now they can view video even when their computer is turned off! Install additional TRENDnet Network Cameras (sold separately) and monitor up to 4 on one screen or scan between the cameras. Program motion detection alerts and schedule recording sessions from the Network Camera. Mount the high resolution LCD monitor vertically, horizontally or on a wall. Use the remote control to view and store content from a wireless network, built-in memory or memory card.



RoHS Compliant

Network Camera Technical Features

  • Quick Plug and Play installation
  • Supports TCP/IP networking, SMTP Email, and HTTP
  • High quality MJPEG video recording with up to 30 frames per second
  • Record streaming video to your computer or network storage device
  • Compatible with wireless g and b devices
  • Advanced encryption mode include WEP, WPA-PSK(TKIP), WPA2-PSK
  • Supports still image snapshot to FTP, Email and Flash drive
  • Motion detection with Email notification
  • Control two adjustable motion detection windows with just-in-time snapshot
  • Supports time stamp overlay
  • Free SecurView™ software: view and record up to 16 cameras simultaneously *

Camera Monitor Technical Features

  • Connects with wireless b/g networks and forward compatible with wireless n routers*
  • View of up to 4 TRENDnet IP cameras on one screen or view one camera full screen and scan between up to 10 cameras Crisp 7”, 16 : 9 TFT LCD digital display panel Virtual keyboard feature allows configuration through remote control
  • Connects to TRENDnet SecurView cameras on your local area network and to remote cameras over the Internet
  • Set default startup screen to automatically view available cameras
  • Supports advanced encryption modes include WEP, WPA-PSK and WPA2-PSK
  • Slideshow function supports both JPEG and BMP pictures with max. resolution of up to 16384 x 16384 pixels
  • Built in 500MB memory for easy picture, music and video storage
  • Supports Flicker and Picasa Web photo album for online pictures display
  • Built in memory card reader supports SD/MMC/MS (MS DUO) / MS Pro and xD memory cards
  • Provides video play back feature in MJPEG, MPEG1, MPEG-4 and H.264 formats
  • Audio playback supports MP3, WMA, AAC and OGG formats
  • Supports ISP (In System Programming) allowing easy firmware upgrade via the memory card
  • USB connection for retrieving or saving files to computer, laptop or work station
  • 2-year limited warranty

*Recommend wireless n router to be set to b/g/n mixed mode

TV-110W Specifications

  • Image Sensor
  • Sensor

  • 1/4” Color CMOS Sensor

  • Resolution

  • 640 x 480 Pixel

  • Fixed Lens

  • f: 4.6mm, F: 2.6 (Board Lens)

  • Viewing Angle

  • 60 Degree

  • Minimum Illumination

  • 0.5Lux

  • Video/Image Setting
  • Video Format

  • MJPEG

  • Image Frame Rate

  • 30fps @VGA, QVGA, QQVGA

  • Frame Rate Setting

  • 1 ~ 30fps

  • Zoom

  • 3 x Digital Zoom

  • Compression Ratio Setting

  • 5 Levels

  • Resolution

  • 640 x 480, 320 x 240, 160 x 120

  • Exposure Control, White Balance, Gain Control

  • Automatic

  • Image Setting

  • Adjustable Brightness, Sharpness, Saturation
  • Flip Images

  • Vertical/Horizontal

  • Light Frequency

  • 50Hz, 60Hz or Outdoor

  • Communication
  • LAN
  • 10/100Mbps Auto MDIX
  • Protocol
  • HTTP, FTP, TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, PPPoE, UPnP
  • Wireless
  • Standard

  • IEEE802.11b/g

  • Security

  • 64/128bit WEP (HEX/ASCII),WPA-PSK(TKIP/AES), WPA2-PSK (TKIP/AES)

  • Antenna

  • 2dBi detachable Reverse SMA Connector

  • Hardware Specifications
  • System
  • CPU

  • ARM9 base

  • RAM

  • 16Mbyte SDRAM

  • ROM

  • 4Mbyte NOR Flash

  • OS

  • Linux

  • System Requirement (Web Configuration)
  • CPU

  • 350MHz or above

  • Memory

  • 256MB RAM or above 512MB RAM or above

  • Resolution

  • 800 x 600 or above

  • Browser

  • Internet Explorer 6.0 or above

  • Supported OS

  • Windows 2000/XP/Vista

  • System Requirement (SecurView™ Software)
  • CPU
  • 1GHz or above
  • Memory
  • 512MB or above
  • Resolution
  • 1024 X 768 or above
  • Supported OS
  • Windows 2000/XP/Vista
  • Physical /Environment
  • Dimension

  • 70 x 100 x 57mm (2.67 x 3.94 x 2.95 in.)

  • Weight

  • Camera: 125g (4.4oz.) Stand: 135g (4.76oz.)

  • Power

  • 5VDC, 2.5A External Power Adapter

  • Power Consumption

  • 6 Watts (Max)

  • LEDs

  • Power (Orange), Link (Green) LED Enable/Disable Support

  • Temperature

  • Operation: 0ºC ~45ºC (32ºF ~ 113ºF) Storage : -15ºC ~ 60ºC (14ºF ~ 140ºF)

  • TV-M7 Specifications

  • Hardware
  • Display Panel
  • 7”, digital TFT LCD panel, 16:9, 800 x 480 pixel Brightness: 200cd Contrast 500 : 1
  • Interface
  • DC-in jack USB 2.0 port SD/MMC/MS/MS Pro/xD memory card slot Audio out (stereo) Speaker (stereo) IR receiver (remote controller included)
  • Buttons
  • Power on/off switch Reset Up/Down/Left/Right/Enter/ESC button
  • Network
  • Transfer protocol: TCP/IP File protocol: CIFS Services: DNS, HTTP, DHCP Client
  • Memory Size
  • Built in 512MB (12MB reserved for device use only)
  • LED Indicator
  • Power, Link
  • Supported OS (For PC connection only)
  • Windows 2000, XP (32/64-bit), Vista (32/64-bit), 2003 Server and Mac OS 9.x or higher
  • Weight
  • 695g (24.5oz)
  • Dimension
  • 235 x 167mm (9.25 x 6.57in.)
  • Power Adapter
  • 12V DC, 1.5A external power adapter
  • Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F); Storage: -10° ~ 70° C (14° ~ 158° F)
  • Humidity
  • 10% ~ 85% max (non-condensing)
  • Certifications
  • CE, FCC
  • Media
  • Image (local display only)
  • Format: JPEG and BMP Resolution: up to 16384 x 16384 pixels Display function: thumbnail/preview/slide show/zoom/pan/rotate/to fit screen/slide transition effect
  • Video Format / Frame Rate (local playback only)
  • MJPEG / VGA @20fps, MPEG1 / VGA @30fps MPEG-4 / D1 @30fps, H.264 BP / CIF@30fps
  • Audio Format (local playback only)
  • MP3, WMA, AAC-LC (MPEG4)
  • Web Photo Album
  • Flickr, Picasa
  • Virtual Keyboard
  • Supported
  • Wireless
  • Standards
  • IEEE 802.11b, IEEE 802.11g
  • Frequency
  • 2.4GHz ~ 2.4835GHz
  • Antenna
  • Internal 2dBi PIFA antenna
  • Security
  • 64/128-bit WEP, WPA-PSK/TKIP, WPA2-PSK/TKIP
  • Compatible Cameras
  • TV-IP110, TV-IP110W, TV-IP212, TV-IP212W TV-IP312, TV-IP312W, TV-IP410, TV-IP410W, TV-IP422, TV-IP422W
  •

    Package Contents

    • TV-M7 & Remote control
    • TV-IP110W
    • CD-ROM (User’s Guide)
    • Multi-Language Quick Installation Guide
    • USB cable (50cm/19.7in.)
    • 1.8m/5.9ft Cat.5 Fast Ethernet cable
    • Power adapter (12V DC, 1.5A) for TV-M7
    • Power adapter (5V DC, 2.5A) for TV-IP110W
    • Frame stand and 2 x frame design plates
