Product Families » Print Servers » Wireless Print Servers » TEW-MP1U

Wireless 1-Port Multi-Function Print Server
TEW-MP1U (Version 1.0R)

Turn a standalone multi-function printer/fax/scanner into a shared wireless resource
Use this wireless print server to place your printer in the most accessible location
Provides high speed USB 2.0 printing

DISCONTINUED PRODUCT

The TEW-MP1U (Version 1.0R) has been discontinued. It has been replaced by the TE100-MFP1 (Version v1.0R). For a list of discontinued products, click here.

Click on image to enlarge

The 1-Port Wireless G Multi-Function USB Print Server (TEW-MP1U) is designed to transform virtually any stand-alone multi-function USB printer into a shared resource on your wireless network. An intuitive utility and a user-friendly configuration interface provide a seamless user experience.

LED indicators and bidirectional support allow for easy print server management. With support for most operating systems, simply connect a printer to this product for instant wireless multimedia and file sharing. This product is a cost effective solution to the challenge of integrating multi-function printer, fax and scanner within a wireless networked environment

Supports most USB printers and all-in-one multi-function printers *
Share a multi-function printer with a wireless network
Provides secure data with up to WPA-PSK, WPA2-PSK encryption
Enjoy USB 2.0 high speed printing
Easy to use Windows based utility program and Web based configuration
Includes one USB 2.0 port and one RJ-45 10/100Mbps auto-sensing fast Ethernet port
Built-in flash memory for easy firmware upgrade
TCP/IP protocol supported
3-year limited warranty

* For a list of compatible printer, please click here.

Hardware
Standards	Wired: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX Wireless: IEEE 802.11b/g
Printer Interface	USB 2.0, 1.1 Compliant USB Type A Port
LAN Port	10/100Mbps Auto-Negotiation UTP/STP Ethernet Port

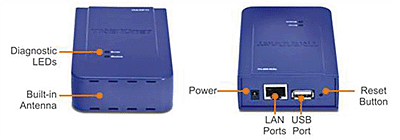

Diagnostic LEDs	Power/Link, Error
Transport Protocols	TCP/IP
TCP/IP Protocol Supported	DHCP
Supported OS	Windows 7(32-Bit) / Vista (32-bit) / 2003 Server / XP / 2000
Management	Windows Based Utility or Web Based Configuration
Power	5V DC 2A External Power Adapter
Power Consumption	Max 2.5W (Without a Peripheral)
Dimensions	115 x 85 x 30mm (4.5 x 3.4 x 1.2 inches)
Weight	128g (4.5oz.)
Temperature	Operating: 0°~50°C (32°~122°F) Storage: -25°~55°C (-13°~131°F)
Humidity	10%~90% (Non-Condensing)
Wireless
Encryption	64/128-Bit WEP, WPA-PSK(TKIP) WPA2-PSK (TKIP-AES) Built-In Fixed 2dBi Antenna
Antenna	Built-In Fixed 2dBi Antenna
Channels	1-11 (FCC) 1-13 (ETSI)
Data Rate	802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Emulator

Package Contents

TEW-MP1U
Multi-Language Quick Installation Guide
CD-ROM (Utility & User’s Guide)
Power Adapter (5V DC, 2A)
