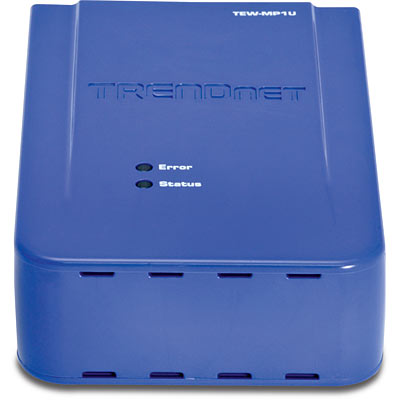

The 1-Port Wireless G Multi-Function USB Print Server (TEW-MP1U) is designed to transform virtually any stand-alone multi-function USB printer into a shared resource on your wireless network. An intuitive utility and a user-friendly configuration interface provide a seamless user experience.
LED indicators and bidirectional support allow for easy print server management. With support for most operating systems, simply connect a printer to this product for instant wireless multimedia and file sharing. This product is a cost effective solution to the challenge of integrating multi-function printer, fax and scanner within a wireless networked environment
- Supports most USB printers and all-in-one multi-function printers *
- Share a multi-function printer with a wireless network
- Provides secure data with up to WPA-PSK, WPA2-PSK encryption
- Enjoy USB 2.0 high speed printing
- Easy to use Windows based utility program and Web based configuration
- Includes one USB 2.0 port and one RJ-45 10/100Mbps auto-sensing fast Ethernet port
- Built-in flash memory for easy firmware upgrade
- TCP/IP protocol supported
- 3-year limited warranty
* For a list of compatible printer, please
click here.
Hardware |
Standards | - Wired: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
- Wireless: IEEE 802.11b/g
|
Printer Interface | - USB 2.0, 1.1 Compliant USB Type A Port
|
LAN Port | - 10/100Mbps Auto-Negotiation UTP/STP Ethernet Port
|
Diagnostic LEDs | |
Transport Protocols | |
TCP/IP Protocol Supported | |
Supported OS | - Windows 7(32-Bit) / Vista (32-bit) / 2003 Server / XP / 2000
|
Management | - Windows Based Utility or Web Based Configuration
|
Power | - 5V DC 2A External Power Adapter
|
Power Consumption | - Max 2.5W (Without a Peripheral)
|
Dimensions | - 115 x 85 x 30mm (4.5 x 3.4 x 1.2 inches)
|
Weight | |
Temperature | - Operating: 0°~50°C (32°~122°F)
- Storage: -25°~55°C (-13°~131°F)
|
Humidity | |
Wireless |
Encryption | - 64/128-Bit WEP, WPA-PSK(TKIP) WPA2-PSK (TKIP-AES) Built-In Fixed 2dBi Antenna
|
Antenna | - Built-In Fixed 2dBi Antenna
|
Channels | |
Data Rate | - 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
- 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
|
PACKAGE CONTENTS |
- TEW-MP1U
- Multi-Language Quick Installation Guide
- CD-ROM (Utility & User's Guide)
- Power Adapter (5V DC, 2A)
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
