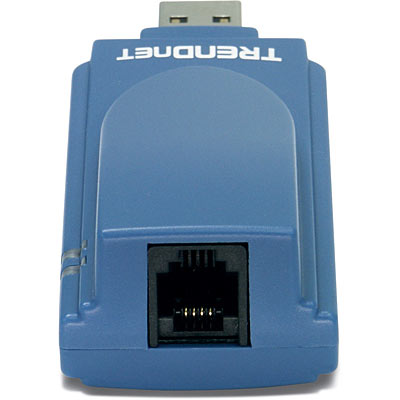

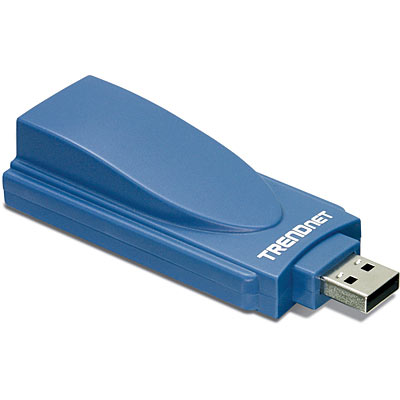

56K USB Data/Fax/TAM Modem
TFM-560U (Version B1.xR)
  • Save time with fast data transfer rates
  • Quickly network this compact device to your computer's USB port
  • User friendly data, fax and voice software


 DISCONTINUED PRODUCT
The TFM-560U (Version B1.xR) has been discontinued.  It has been replaced by the TFM-561U (Version V1.0R). For a list of discontinued products, click here.
The TFM-560U High Speed USB 2.0 Fax Modem delivers fast access to the Internet with more efficient upload and download speeds. The V.92/V.44 standard modem offers the highest possible data transfer rates and reliable fax transmissions. The modem utilizes the latest V.92 standard providing Internet connection features such as Quick Connect, Modem-on-Hold, and 48Kbps upload rates.


RoHS Compliant
  • Compliant with USB 2.0 and USB 1.1 Specifications
  • Compliant with V.92, V.90, V.44 Standards
  • Supports V.44 and V.92 Quick Connect, PCM Upstream and Modem On Hold Features
  • Up to 56Kbps Data Download Speed and 48Kbps Data Upload Speed
  • Hosts Signal Processing for both controller and data -pump
  • Supports TAM (Telephone Answering Machine) via Sound Card
  • Video Phone ready (Interface to H.324 Video Conferencing Support)
  • Compatible with Windows 98SE/ME/2000/XP/2003 Server/Vista/Windows 7 Operating Systems
  • Support ITU-T T.31 Class 1 fax with transfer rate up to 14.4kbps.
  • USB Bus-Powered method and Low Power consumption
  • Includes Data/Fax/Voice Communication Software
  • LED Display
  • 3-year limited warranty
  • Hardware
  • Standard
  • USB 2.0 USB 1.1

  • Interface
  • 1 x USB 2.0 /1.1 (Type A) 1 x RJ-11 Port (Phone Line)

  • Data Mode
  • V.92& V.90, V.34, V.32(bis), V.22(bis), V.22, V.23, V.21, Bell 212A, Bell 103

  • Error Correction
  • V.42, LAPM & MNP 2-4

  • Data Compression
  • V.44, V.42(bis) & MNP5

  • Fax Mode
  • ITU-T V.17, V.29, V.27ter and V.21 ch2, ITU-T T.31 Class1 Fax

  • Power Management
  • USB Bus-Powered

  • Power Consumption (Input 3.3VDC)
  • Idle Mode: 65mW Operating Mode: 134mW

  • Dimensions
  • 100 x 35 x 23mm (3.94 x 1.38 x 0.91in.)

  • Weight
  • 25g (0.88oz.)

  • Temperature
  • Operating: 0°C~ 40°C (32°F~ 104°F) Storage: -20°C~ 60°C (-4°F~140°F)

  • Humidity
  • 10%~90% (non-condensing)

  • Certifications
  • FCC, CE

  • Functions
  • Supported OS
  • Windows 98SE/ME/2000/XP(32/64-bit)/2003 Server/Vista(32/64-bit)/Windows 7 (32/64-bit)

  • Voice Function
    • TAM (USA) Support with Concurrent DTMF Detect, Ring Detect
    • 8-Bit u– Law/A-Law (G711) Coding
    • 8000 Hz Sample Rate
  • Video Phone Ready
    • V.80 sync Access mode Supports Host-Controlled Communication Protocol
    • H.324 interface Support
  • Multiple Country
  • Call Progress, Blacklisting Support

  • Miscellaneous
    • Data/Fax/Voice Call Discrimination
    • Single Profile Stored in Host
    • Modem and audio paths
    • DTMF
  •

    Package Contents

    • TFM-560U
    • Multi-Language QIG
    • Driver CD-ROM
    • RJ-11 Telephone Cable
