Product Families » Internet Cameras » TV-IP110W

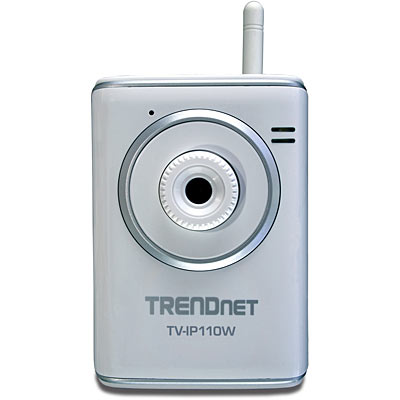

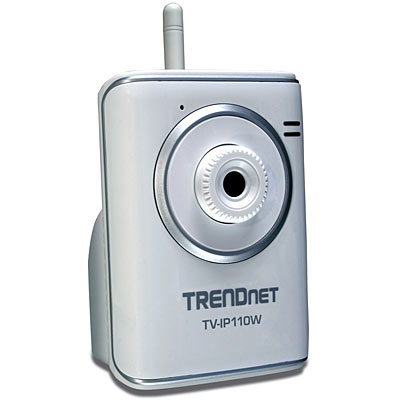

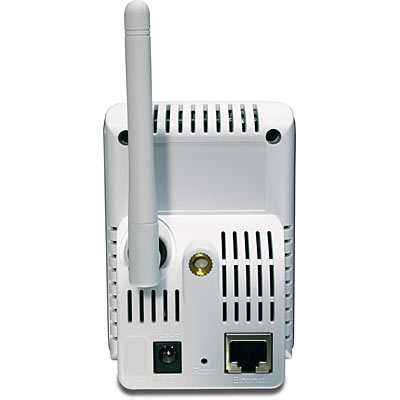

SecurView Wireless Internet Camera
TV-IP110W (Version A1.0R)
  • Secure your home or office with wireless MJPEG streaming video
  • Access, monitor and record up to 16 cameras from the Internet
  • Mount this compact stylish Internet camera on most surfaces


TV-IP110W
Click on image to enlarge

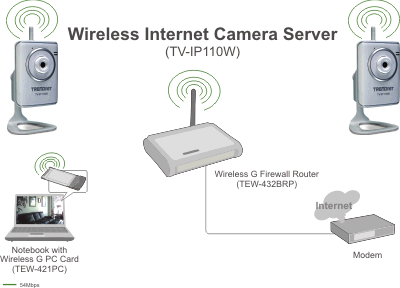

The Wireless Internet Camera Server (TV-IP110W) transmits real-time high quality video over the Internet. View your camera from any Internet connection. Complimentary SecurView camera management software provides advanced monitoring of up to 16 cameras to protect what you value most.

This stylish and compact Internet camera provides crystal clear MJPEG video streams.

Mount the wireless camera on most surfaces with an included mounting kit. Intuitive software features motion detection recording, email alerts*, and scheduled recordings. The camera’s brilliant image quality, intuitive setup and complimentary software make it ideal for your home or office.

*   Does not support SSL
**   32-bit only. Monitoring multiple cameras will require a high performance CPU and graphics card

SecurView cameras are not compatible with TRENDnet’s IPView Pro camera application for ProView cameras.


RoHS Compliant

  • Quick Plug and Play installation
  • Supports TCP/IP networking, SMTP Email*, and HTTP
  • High quality MJPEG video recording with up to 30 frames per second
  • Record streaming video to your computer
  • Compatible with wireless g and b devices
  • Advanced encryption mode include WEP, WPA-PSK(TKIP), WPA2-PSK
  • Supports still image snapshot to FTP or Email*
  • Motion detection with Email notification*
  • Control two adjustable motion detection windows with just-in-time snapshot
  • Supports time stamp overlay
  • Free SecurView™ software: view and record up to 16 cameras simultaneously **
  • 3-year warranty

*   Does not support SSL
**   32-bit only. Monitoring multiple cameras will require a high performance CPU and graphics card

SecurView cameras are not compatible with TRENDnet’s IPView Pro camera application for ProView cameras.

Image Sensor

Sensor

1/4” Color CMOS Sensor

Resolution

640 x 480 Pixel

Fixed Lens

f: 4.6mm, F: 2.6 (Board Lens)

Viewing Angle

60 Degree

Minimum Illumination

0.5Lux

Video/Image Setting

Video Format

MJPEG

Image Frame Rate

30fps @VGA, QVGA, QQVGA

Frame Rate Setting

1 ~ 30fps

Zoom

3 x Digital Zoom

Compression Ratio Setting

5 Levels

Resolution

640 x 480, 320 x 240, 160 x 120

Exposure Control, White Balance, Gain Control

Automatic

Image Setting

Adjustable Brightness, Contrast, Saturation

Flip Images

Vertical/Horizontal

Light Frequency

50Hz, 60Hz or Outdoor

Communication
LAN 10/100Mbps Auto MDIX
Protocol HTTP, FTP, TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, PPPoE, UPnP
Wireless

Standard

IEEE802.11b/g

Security

64/128bit WEP (HEX/ASCII),WPA-PSK(TKIP/AES), WPA2-PSK (TKIP/AES)

Antenna

2dBi detachable Reverse SMA Connector

Hardware Specifications
System

CPU

ARM9 base

RAM

16Mbyte SDRAM

ROM

4Mbyte NOR Flash

OS

Linux

System Requirement (Web Configuration)

CPU

350MHz or above

Memory

256MB RAM or above
512MB RAM or above

Resolution

800 x 600 or above

Browser

Internet Explorer 6.0 or above

Supported OS

Windows 7, Vista, XP, 2000

System Requirement (SecurView™ Software)
CPU 1GHz or above
Memory 512MB or above
Resolution 1024 X 768 or above
Supported OS Windows 7 (32-bit), Vista (32-bit), XP (32-bit), 2000
Physical /Environment

Dimension

70 x 100 x 57mm (2.67 x 3.94 x 2.95 in.)

Weight

Camera: 125g (4.4oz.)
Stand: 135g (4.76oz.)

Power

5VDC, 2.5A External Power Adapter

Power Consumption

6 Watts (Max)

LEDs

Power (Orange), Link (Green)
LED Enable/Disable Support

Temperature

Operation: 0ºC ~45ºC (32ºF ~ 113ºF)
Storage : -15ºC ~ 60ºC (14ºF ~ 140ºF)


TV-IP110W

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
View Emulator
Register Your Product
Package Contents
  • TV-IP110W
  • Multi-language quick installation guide
  • Utility CD-ROM
  • Camera Stand
  • 1.8m/5.9ft Cat. 5 Fast Ethernet Cable
  • Power adapter (5VDC, 2.5A)
