Product Families » Network Adapters » TEW-644UB
Wireless N USB Adapter
TEW-644UB (Version V1.0R)
  • Upgrade your laptop or desktop to wireless n
  • 8x the speed and 4x the coverage of wireless g
  • Quickly connect your PC or Laptop to a wireless network
  • Advanced wireless encryption provides robust security
  • One-step encryption setup with Wi-Fi Protected Setup

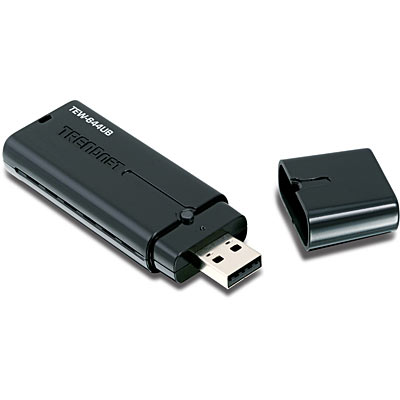

TEW-644UB
Click on image to enlarge

The Wireless N USB Adapter allows you to connect a laptop or desktop computer wirelessly with supercharged speed and reliability. Enjoy up to 8x the speed and 4x the coverage of a wireless g connection. Upgrade to TRENDnet’s Wireless N USB Adapter and enjoy faster than wired speeds with a wireless connection.

Setup is a breeze with Wi-Fi Protected Setup technology. Advanced wireless encryption protects your valuable data. The latest in MIMO antenna technology ensures the fastest communication speeds that wireless n technology provides.. Stream media, download files, play games and talk online when connected to a wireless n router.

**Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.



RoHS Compliant

  • Wi-Fi compliant with IEEE 802.11n standard
  • Backwards compatible with IEEE 802.11g and IEEE 802.11b devices
  • Supports Ad-Hoc (Client-Client) and Infrastructure (AP-Client) Mode
  • Supports Multiple Input Multiple Output (MIMO) technology
  • Maximum reliability, throughput and connectivity with automatic data rate switching
  • Supports 64/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK
  • Low interference and high susceptibility guarantee reliable performance
  • Compatible with Windows 2000/XP/Vista/Mac operating systems
  • Easy user setup and intuitive diagnostics utilities
  • Coverage of up to 50 meters indoor, 100 meters outdoor *
  • Wi-Fi Multimedia (WMM) Quality of Service (QoS) supported
  • 3-year limited warranty
Hardware
Interface USB 2.0
Standards IEEE 802.11b, IEEE 802.11g and IEEE 802.11n (draft 2.0)
LED Indicator Activity
Power Consumption Receive mode: 250mA (max) ; Transmit mode : 320mA (max)
Supported OS Windows 2000/XP (32/64-bit) /Vista (32/64-bit), Mac OS X 10.4/10.5
Dimensions (LxWxH) 80 x 27 x 12mm (3.1 x 1 x 0.5in)
Weight 20g (0.7oz)
Temperature Operating: 0° ~ 40° C (32° ~ 104° F); Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity 10% ~ 90% max (non-condensing)
Certification FCC, CE
Wireless
Module Technique DBPSK/DQPSK/CCK/OFDM (BPSK/WPSK/16-QAM/64-QAM)
Antenna Built-in 2 on board antennas
Frequency 2.412 ~ 2.484 GHz
Data Rate (auto fallback) 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
802.11n: up to 300Mbps (RX)/150Mbps(TX)
Output Power 802.11b: 16dBm (typical)
802.11g: 14dBm (typical)
802.11n : 12dBm (typical)
Receiving Sensitivity 802.11b: -89dBm (typical) at 11mpbs
802.11g: -73dBm (typical) at 54Mbps
802.11n: -63dBm at 150Mbps
Encryption 64/128-bit WEP (Hex & ASCII), WPA/WPA2 (TKIP/AES), WPA-PSK/WPA2-PSK
Channels 1~11 (FCC), 1~13 (ETSI)

TEW-644UB

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
Register Your Product
Package Contents
  • TEW-644UB
  • Utility and driver CD-ROM
  • Multi-Language Quick Installation Guide
