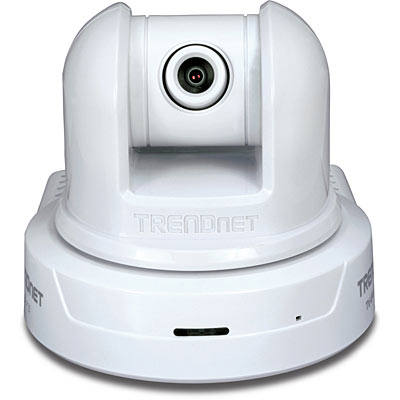

SecurView Pan/Tilt/Zoom Network Camera
TV-IP410 (Version A1.0R)
  • Monitor a greater area with pan and tilt controls
  • Pan 330° side-to-side and tilt 105° up-and-down from any Internet connection
  • Program motion detection recording and email alerts with complimentary software
SecurView IP Camera Critical
Firmware Update Available


 DISCONTINUED PRODUCT
The TV-IP410 (Version A1.0R) has been discontinued.  It has been replaced by the TV-IP651W (Version v1.0R). For a list of discontinued products, click here.

The Pan/Tilt Network Camera Server (TV-IP410) provides real-time surveillance over a large viewing area. Monitor people in your camera's viewing field and manage the camera from any Internet connection.

See more with one Network Camera—remotely pan the camera side-to-side a remarkable 330 degrees and tilt up-and-down 105 degrees.

The TV-IP410 provides high quality video streams over an encrypted connection. Advanced intuitive software includes motion detection recording, email alerts and scheduled recordings. This camera's brilliant image quality, pan and tilt functionality and low light recording capabilities make it ideal for home, small office and business use.

* Does not support SSL
** Windows 32-bit only. Monitoring multiple cameras may require a high performance CPU and graphic card.

SecurView cameras are not compatible with TRENDnet's IPView Pro camera application for ProView cameras.



RoHS Compliant
  • Pan 330º side-to-side and tilt 105º up-and-down from any Internet connection
  • High quality MJPEG video recording with up to 30 frames per second
  • Supports TCP/IP networking, SMTP email, HTTP and other Internet protocols
  • Record streaming video to your computer
  • Sends image snapshots to FTP and email
  • Motion detection that triggers email alerts, image snapshot and video recording
  • Time stamp overlay
  • Quick Universal Plug and Play (UPnP) installation
  • Complimentary SecurView™ software: view and record up to 16 cameras simultaneously *
  • 3-year limited warranty

Note: When using the PoE splitter (TPE-102S/TPE-112GS)with the cameras, you need to have the additional accessory, TV-JC35.

* Does not support SSL
** Windows 32-bit only. Monitoring multiple cameras may require a high performance CPU and graphic card.

SecurView cameras are not compatible with TRENDnet’s IPView Pro camera application for ProView cameras.

  • Camera Specifications
  • Image Sensor
  • Sensor
  • 1/4” color CMOS sensor
  • Resolution
  • 640 x 480 pixel
  • Fixed Lens
  • f: 4.0mm, F: 1.8
  • Viewing Angle
  • 64 degree
  • Minimum Illumination
  • 0.5 lux
  • Video/Image Setting
  • Video Format
  • MJPEG
  • Image Frame Rate
  • 30fps @VGA, QVGA, QQVGA
  • Frame Rate Setting
  • 1 ~ 30fps (frames per second)
  • Compression Ratio Setting
  • 5 levels
  • Resolution
  • 640 x 480, 320 x 240, 160 x 120
  • Digital Zoom
  • 3x
  • Exposure Control, White Balance, Gain Control
  • Automatic
  • Image Setting
  • Adjustable Brightness, Contrast, Saturation
  • Flip Images
  • Vertical / horizontal
  • Light Frequency
  • 50Hz, 60Hz or outdoor
  • Pan/Tilt
  • Pan Range
  • +165° ~ -165°
  • Tilt Range
  • +90° ~ -15°
  • Preset Positions
  • 8 positions
  • Control
  • Up, down, left, right, center
  • Communication
  • LAN
  • 10/100Mbps Auto-MDIX
  • Protocol
  • TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, PPPoE and UPnP
  • Hardware Specifications
  • System
  • CPU
  • ARM9 base
  • SRAM
  • 32Mbyte SDRAM
  • ROM
  • 4Mbyte NOR Flash
  • OS
  • Linux
  • System Requirement (Web Configuration)
  • CPU
  • Pentium III 350MHz or above
  • Memory Size
  • 128MB or above
  • Resolution
  • 800 x 600 or above
  • Browser
  • Internet Explorer 6.0 or above
  • Supported OS
  • Windows 2000/XP/Vista/Windows 7
  • System Requirement (SecurView™ Software)
  • CPU
  • Pentium 4 1GHz or above
  • Memory Size
  • 512MB or above
  • Resolution
  • 1024 X 768 or above
  • Supported OS
  • Windows 2000/XP/Vista/Windows 7
  • Physical /Environment
  • Dimension
  • 115 x 110 x 105 mm (4.53 x 4.33 x 4.13 in)
  • Weight
  • 330g (11.6 oz)
  • Power
  • 12VDC,1.5A external power adapter (3.5 mm)
  • Power Consumption
  • 9 watts (max)
  • LEDs
  • Power (orange), link (green) LED enable/disable support
  • Temperature
  • Operation: 0°C ~ 45°C (32°F ~ 113°F) Storage : -10°C ~ 60°C (14°F ~ 140°F)
  • Other

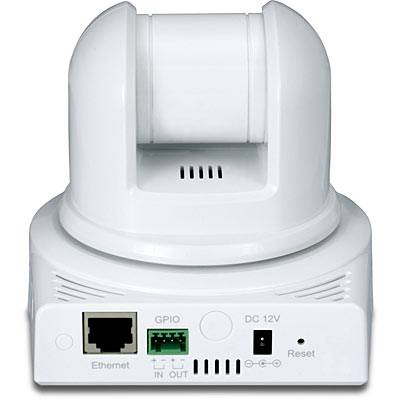

  • GPIO
  • 1 input and 1 output
  •

    Package Contents

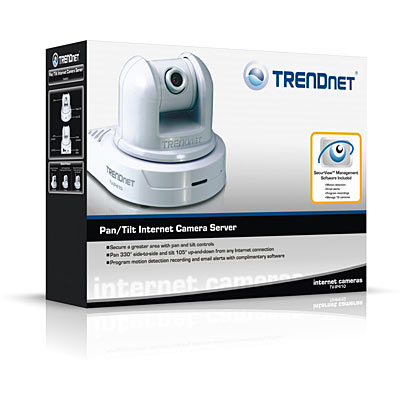

    • TV-IP410
    • Multi-Language Quick Installation Guide
    • CD-ROM (User’s Guide and Utility)
    • Cat. 5 Ethernet cable (1.8m / 5.9ft)
    • Power adapter (12V, 1.5A)
    • GPIO adapter
    • Mounting Kit
