4-Port USB / PS/2 KVM Switch Kit w/ Audio
TK-423K (Version 1.0R)

Instantly manage 4 computers / servers with one set of console controls
High quality video resolution up to 2048x1536
All required cables included

Click on image to enlarge

The 4-Port USB PS/2 KVM Switch Kit with Audio (TK-423K) provides control of 4 computers/servers with just one set of console controls.

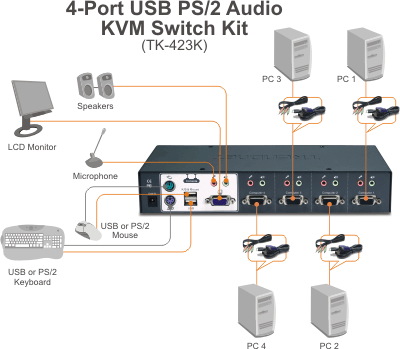

Manage 4 computers that have open VGA and PS/2 or USB ports at the touch of a button with one set of PS/2 or USB keyboard and mouse, VGA monitor, microphone and speakers.

No need for additional cabling, all required cables are included. Independent audio/mic and PC port selection provide additional flexibility. LED indicators show connection status and a buzzing sound confirms port switching. With Hot-Plug, Auto-Scan and Hot-Key operating features, this versatile device is the perfect choice for managing 4 computers/servers.

Manage up to 4 computers/servers with one set of console devices
All required cabling included
Cables from the KVM switch to the computers/servers feature VGA and PS/2 connectors
Supported console connections are as follows: PS/2 or USB keyboard and mouse ports, VGA monitor port and speaker/mic port
Audio and microphone support
Audio/mic port selection may be independent of keyboard, video and mouse port selection
Control computer/server selection with front push buttons and keyboard hotkeys
Supports Universal Host and Open Host Controller Interface (UHCI/OHCI)
Multiple platforms supported: Windows 7/Vista/2003 Server/ XP/2000/ME/98SE, Mac OS, Linux and more
Port switching confirmed by LED status indicators and audio tone
High quality VGA resolution up to 2048 x 1536
2-year limited warranty


Hardware
Connection	4 computers

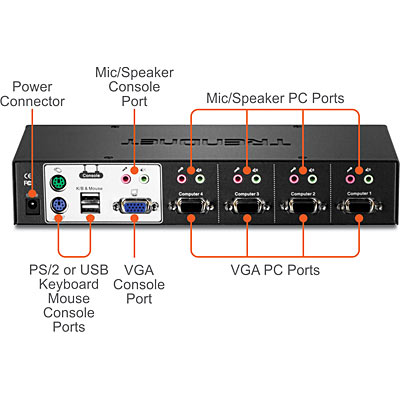

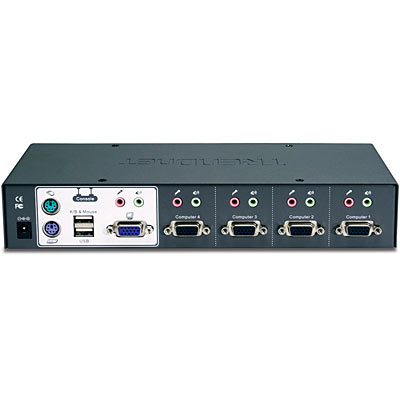

PC Port connection	4 x VGA HDB 15-pin female 4 x 3.5mm speaker in/out jack 4 x 3.5mm microphone in/out jack
Console port connectors	2 x USB 1.1 type A for keyboard/ mouse 1 x PS/2 keyboard 6-pin mini DIN female 1 x PS/2 mouse 6 pin mini DIN female 1 x VGA HDB 15 pin female 1 x 3.5mm speaker in/out jack 1 x 3.5mm microphone in/out jack
KVM Cables	4 x KVM Multiple Connection Cable (2 x 1.2m/4ft., 2 x 1.8m/6ft) 4 x KVM Speaker/Microphone Cable (2 x 1.2m/4ft., 2 x 1.8m/6ft)
Cable Interface	1 x VGA 15 pin male to male connector 1 x USB type A connector 1 x PS/2 Connector (Keyboard connector) 1 x USB to PS/2 Gender Connector (Support for PS/2 Mouse)
PC selection	Hotkey/ push button
LED	4 x LED Green
Auto Scan Interval	Programmable 5-99 seconds
VGA Resolution	2048 x 1536
Power Adapter	5V DC 2A external power adapter
Dimensions (L x W x H)	255 x 117.5 x 45 mm ( )
Weight	1000 g (35.2 oz.)
Temperature	0~40°C ( )
Humidity	Max 90%, non-condensing
Certifications	CE, FCC

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Knowledgebase

Package Contents

TK-423K
Multi-language quick installation guide
4 sets of KVM multiple connection cable(2 x 1.2M/4ft, 2 x 1.8M(6ft.)
4 sets of KVM speaker/microphone cable(2 x 1.2M/4ft, 2 x 1.8M(6ft.)
Power adapter (5V DC, 2A)
