SecurView Wireless Day/Night Internet Camera
TV-IP121W (Version A1.0R)

Night vision of up to 5m (16 ft.)
No need for an Ethernet connection, video is transmitted over a secure encrypted wireless signal
Program motion detection recording and email alerts* with complimentary software
Mount this compact Internet camera on most surfaces

SecurView IP Camera Critical
Firmware Update Available

DISCONTINUED PRODUCT

The TV-IP121W (Version A1.0R) has been discontinued. It has been replaced by the TV-IP121WN (Version v1.0R). For a list of discontinued products, click here.

Click on image to enlarge

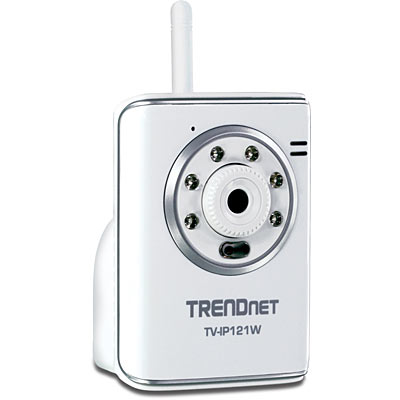

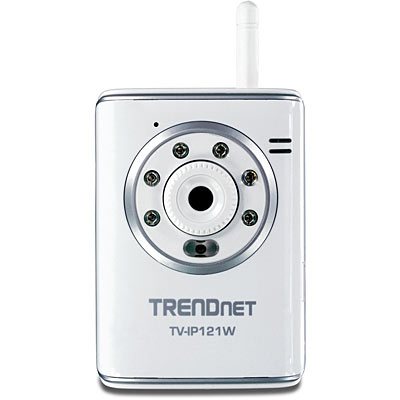

The SecurView Wireless Day/Night Internet Camera (model TV-IP121W) transmits real-time high quality video over the Internet. See and hear people in your camera's viewing field in complete darkness for distances up to 5 meters (16 feet) from any Internet connection.

Manage of up to 16 cameras with complimentary SecurView camera management software. This stylish Internet camera provides crystal clear MJPEG video streams over a secure encrypted wireless connection.

Mount the camera on most surfaces with an included mounting kit. Advanced software features motion detection recording, email alerts*, scheduled recordings, video viewing options and digital zoom. The camera´s brilliant image quality, compact size, audio support and night vision capability make it ideal for your home or office.

* Does not support SSL
** Windows 32-bit only. Monitoring multiple cameras may require a high performance CPU and graphics card

SecurView cameras are not compatible with TRENDnet's IPView Pro camera application for ProView cameras.

Compatible with 802.11g and b wireless networks
Compatible with 802.11n wireless networks when set to 802.11n/g/b mixed mode
Encryption support for WEP, WPA-PSK and WPA2-PSK standards
Infrared lens enables night vision for distances up to 5 meters (16 feet)
60 degree viewing angle, 4.5mm focal length and 2.8 F/No
Supports still image snapshot to FTP and email*
Record streaming video to your computer
Supports TCP/IP networking, SMTP email* and HTTP
High quality MJPEG video recording with up to 30 frames per second at 640x480 VGA resolution
Motion detection and scheduled recording
Control two adjustable motion detection windows with just-in-time snapshot and email notification* capabilities
Supports time stamp overlay
Hear people in your camera's viewing area through your computer
Embedded Watchdog feature automatically reboots camera if an operational errors is detected
Quick Universal Plug and Play installation
Complimentary SecurView™ software: view and record up to 16 SecurView cameras simultaneously **
Complimentary SecurView™ software: supports Windows 2000/XP/Vista/Windows 7 operating systems
3-year limited warranty

* Does not support SSL
** Windows 32-bit only. Monitoring multiple cameras may require a high performance CPU and graphics card

SecurView cameras are not compatible with TRENDnet's IPView Pro camera application for ProView cameras.

Camera
General	Sensor: 1/4" color CMOS sensor Resolution: 640 x 480 pixels Focal Length: 4.5mm F/No: F2.8 (Board Lens) Minimum illumination: 0.5 Lux @ F2.8 View angle: 60 degrees diagonal
Audio	Built-in omni-directional microphone Sensitivity: -48dB +/- 3dB (5 meters max) Frequency: 50~16000Hz Codec: PCM
Image & Video	Compression: MJPEG Resolution: VGA (640x480), QVGA (320x240), QQVGA (160x120) up to 30fps Exposure/white balance control: automatic Flip Images: Vertical/horizontal Light Frequency: 50Hz, 60Hz or outdoor
Hardware
Network	IEEE 802.3u 10/100Mbps Fast Ethernet, Auto-MDIX
LED	Power, Link/Act
IR Wavelength	850nm
Reset Button	Reset settings
Power Consumption	6 watts (max)
Power	5V DC, 2.5A external power adapter
Dimension	70 x 100 x 57mm (2.67 x 3.94 x 2.95 in.)
Weight	Camera: 165g (5.8 oz.) Stand: 135g (4.76 oz.)
Temperature	Operating: 0°C ~ 45°C (32°F ~ 113°F) Storage: -15°C ~ 60°C (14°F ~ 140°F)
Certification	CE, FCC
Requirement (SecurView™)
To View	Internet Explorer 6.0 or above
To Run Software	Windows 2000, XP, Vista, Windows 7
SecurView™ Software	Channel: supports up to 16 cameras Record/Playback/Motion Detection/Audio
Wireless
Standard	IEEE 802.11b/g
Frequency	2.412 ~ 2.484 GHz
Antenna	1 x 2dBi detachable Reverse SMA connector
Security	64/128-bit WEP, WPA-PSK, WPA2-PSK
Settings
Image	Brightness, contrast, saturation, sharpness, white balance, flip, mirror (horizontal/vertical)
Recording	Recording type: event based (motion detection and digital input trigger), continuous and scheduled Storage size: 32MB (minimum)
Snapshot	Trigger event: motion detection Action: send alert email and/or upload to FTP
Port Settings	HTTP port: 80 (default)
Digital Zoom	3x
Dynamic DNS	Yes
Time	Synchronize with NTP server or set time/date manually
Hardware
Network	IEEE 802.3u 10/100Mbps Fast Ethernet, Auto-MDIX
LED	Power, Link/Act
Reset Button	Reset settings
Power Consumption	6 watts (max)
Power	5V DC, 2.5A external power adapter
Dimension	70 x 100 x 57mm (2.67 x 3.94 x 2.95 in.)
Weight	Camera: 165g (5.8 oz.) Stand: 135g (4.76 oz.)
Temperature	Operating: 0°C ~ 45°C (32°F ~ 113°F) Storage: -15°C ~ 60°C (14°F ~ 140°F)
Certification	CE, FCC
Requirement (SecurView™)
To View	Internet Explorer 6.0 or above
To Run Software	Windows 2000, XP, Vista, Windows 7
SecurView™ Software	Channel: supports up to 16 cameras Record/Playback/Motion Detection/Audio
Wireless
Standard	IEEE 802.11b/g
Frequency	2.412 ~ 2.484 GHz
Antenna	1 x 2dBi detachable Reverse SMA connector
Security	64/128-bit WEP, WPA-PSK, WPA2-PSK
Settings
Image	Brightness, contrast, saturation, sharpness, white balance, flip, mirror (horizontal/vertical)
Recording	Recording type: event based (motion detection and digital input trigger), continuous and scheduled Storage size: 32MB (minimum)
Snapshot	Trigger event: motion detection Action: send alert email and/or upload to FTP
Port Settings	HTTP port: 80 (default)
Digital Zoom	3x
Dynamic DNS	Yes
Time	Synchronize with NTP server or set time/date manually

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Critical Firmware update available

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Knowledgebase

View Emulator

Package Contents

TV-IP121W
Multi-Language Quick Installation Guide
Utility CD-ROM
Cat.5 Ethernet cable (1.8m / 5.9ft)
Mounting kit
Power adapter (5VDC, 2.5A)
