300Mbps Wireless N ADSL2/2+ Modem Router
TEW-635BRM (Version V1.0R)
  • Combination ADSL 2/2+ modem and high performance wireless n router
  • Compatible with most ADSL-based Internet service provider networks
  • 12x the speed and 4x the coverage of wireless g
  • Double firewall and advanced wireless encryption ensures data security


 DISCONTINUED PRODUCT
The TEW-635BRM (Version V1.0R) has been discontinued.  It has been replaced by the TEW-635BRM (Version v2.0R). For a list of discontinued products, click here.

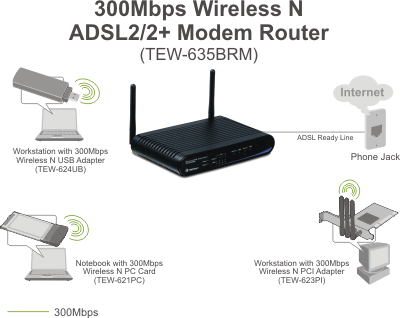

The 300Mbps Wireless N ADSL 2/2+ Modem Router delivers both Internet access and a high-performance wireless n network in a single solution.
No need to buy a separate modem and router. Install this device easily and surf the Internet, download files, play games and talk online with 300Mbps wireless n technology.

Connect computers, gaming consoles, media players and storage devices to the built in 4-port switch. The latest in wireless encryption and a double firewall protect your valuable data. Advanced antenna technology (MIMO) delivers broad coverage and minimizes dead spots. One-touch Wi-Fi Protected Setup (WPS) synchronizes WPS peripheral devices at the touch of a button.



RoHS Compliant
  • Wi-Fi compliant with IEEE 802.11n draft 2.0 standard
  • Router + modem or modem only mode
  • Compliant with ADSL, ASDL2 and ADSL2+
  • Auto detection for PPPoE, PPPoA and IPoA Internet connection types
  • 2 fixed 2dBi antennas support high speed performance and expanded coverage with MIMO technology
  • Multiple SSID support with isolation
  • Wireless on/off button
  • Power on/off button
  • Backwards compatible with IEEE 802.11b/g devices
  • Supports Wi-Fi Protected Setup (WPS) to quickly connect wireless peripheral devices
  • Universal Plug and Play (UPnP) and Application Level Gateway (ALG) support for Internet applications such as e-mail, FTP, gaming, remote desktop, Net Meeting and telnet
  • Internet Access Control via MAC Address, URL and IP Filtering
  • Easy Web-browser configuration and remote management
  • Advanced wireless encryption : WEP, WPA-PSK, WPA2-PSK and 802.1x
  • Wi-Fi Multimedia (WMM) Quality of Service (QoS) supported
  • Multiple VPN Pass-through sessions for IPSec, PPTP and L2TP
  • 3-year limited warranty
  • Hardware
  • Standards
  • Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX) Wireless: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0) ADSL : ANSI T1.413 and multi-mode ITU G.992.1 (G.dmt) Annex A, ITU G.992.2 G.lite, ITU G.992.3 Annex A ADSL2, ITU G.992.3 Annex A DELT, ITU G.992.3 Annex L READSL2, ITU G.992.5 Annex A ADSL2+, ITU G.994.1 (G.hs) ver.3
  • Protocol
  • DHCP (Client/Server), SMTP, NTP
  • VPN Pass-Through
  • PPTP, IPSec, L2TP (up to 100 sessions)
  • ATM
  • Supports TM Cell over AAL5, UBR/CBR/VBR, VPI range (0-255) and VCI range (32 ~65535 ), multiple-PVC and OAM F4/F5 loopback Payload encapsulation
    • RFC2684 (RFC1483/2684), Multiprotocol over ATM
    • RFC2684 (RFC1483/2684), Bridge mode
    • RFC2364, PPP over ATM (CHAP and PAP supported)
    • RFC2516, PPP over Ethernet
    Supports auto-detection for VPI/VCI (VPI :0 ~10, VCI : 32 ~ 90) and multiplexing method (VC/LLC based)
  • Firewall
  • NAT Firewall with ALGs, Denial of Service(DoS) attack firewall, email alerts and log, access control, port forwarding, port range forwarding and schedule-based URL filtering
  • Management
  • Web-browser configuration or remote management
  • Routing
  • Cross Segment Static Route, RIP1, RIP2
  • WAN
  • 1 x RJ-11 port
  • LAN
  • 4 x 10/100Mbps Auto-MDIX port
  • WPS Button
  • Wi-Fi Protected Setup button
  • Wireless Button
  • On/off wireless
  • Power Button
  • On/off power
  • LED
  • Power, Status, 10/100Mbps, Wireless, ADSL, Internet and WPS
  • Supported Browser
  • Internet Explorer v5.5 or higher, Netscape 7.0 or higher, Mozilla 1.6 or higher
  • Power
  • 12VDC, 1A external power adapter
  • Power Consumption
  • 6W (max)
  • Dimensions (LxWxH)
  • 175 x 130 x 30mm (6.90 x 5.12 x 1.18in.)
  • Weight
  • 255g (8.99oz)
  • Temperature
  • Operating: 0°C ~ 40°C (32°F ~ 104°F); Storage: -20°C ~ 70°C (-4°F ~ 158° F)
  • Humidity
  • Max 95% (non-condensing)
  • Certification
  • FCC, CE
  • Wireless
  • Frequency
  • 2.412 ~ 2.4835 GHz
  • Modulation Technique
  • 802.11n: BPSK, QPSK, 16QAM, 64QAM, OFDM 802.11g: BPSK, QPSK, 16-QAM, 64-QAM, OFDM 802.11b: DBPSK, DQPSK, CCK
  • Antenna
  • 2 x fixed 2dBi antennas
  • Data Rate (auto fallback)
  • 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps 802.11n: up to 300Mbps
  • Output Power
  • 802.11b: 17dBm + 1.5 (typical) 802.11g: 15dBm + 1.5 (typical) 802.11n : 12.5dBm + 1.5 (typical)
  • Receiving Sensitivity
  • 802.11b: -86 + 1.5 dBm (typical) 802.11g: -70 + 1.5 dBm (typical) 802.11n: -69 + 1.5 dBm (typical)
  • Encryption
  • 64/128-bit WEP (Hex), WPA-PSK(TKIP), WPA2-PSK(AES), WPA-PSK/WPA2-PSK mixed (TKIP/AES) and WPA-802.1x
  • Channels
  • 1 ~ 14 Channel (Universal Domain Selection)
  •

    Package Contents

    • TEW-635BRM
    • Multi-Language Quick Installation Guide
    • CD-ROM (User’s guide)
    • 1 x RJ-45 Ethernet cable (1.5m,4.92ft.)
    • 1 x RJ-11 cable (0.9m,3ft.)
    • Power adapter (12VDC, 1A)
