Product Families » KVM » Desktop » USB Console Ports » TK-204UK
2-Port DVI USB KVM Switch with Audio Kit
TK-204UK (Version v1.0R)
  • Instantly manage 2 PCs or Macs with one set of console controls
  • Enjoy high definition Digital Video Image (DVI) technology
  • Listen to music on one computer while working on the other
  • All required USB, DVI and audio cabling is included


 DISCONTINUED PRODUCT
The TK-204UK (Version v1.0R) has been discontinued.  It has been replaced by the TK-204UK (Version v2.0R). For a list of discontinued products, click here.

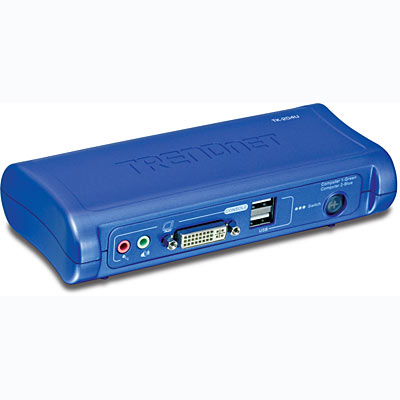

TK-204UK
Click on image to enlarge

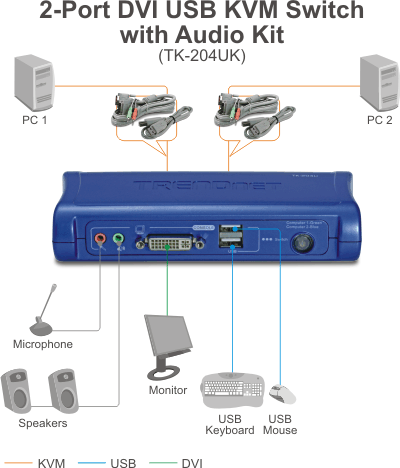

The 2-Port DVI USB KVM Switch with Audio Kit allows you to control 2 computers with one set of console controls featuring high definition Digital Video Image (DVI) technology. Manage 2 computers that have DVI and USB ports at the touch of a button with one set of USB keyboard, USB mouse, DVI monitor, microphone and speakers. Enjoy DVI quality images from both of your computers. No need for additional cabling, all required cables are included. Listen to music on one computer while working on the other. With Hot-Plug, Auto-Scan and Hot-Key operating features, this versatile device is the perfect choice for managing 2 computers.

RoHS Compliant

  • 2-port compact desktop DVI USB KVM switch with audio and mic
  • USB console support for USB keyboard, mouse and high-speed USB devices
  • Audio and microphone switching for uninterrupted multimedia experience across multi-platforms.
  • USB 2.0/1.1 specification compliant USB interface power
  • Independent simultaneous switching of both PC and audio and mic channel
  • Multi-platform support for PCs and Macintosh G3/G4, iMAC
  • Hot-plugging PCs for maintenance without powering down the KVM switch or PCs
  • Switching software client for easy software switching on Windows and Mac platform
  • User definable hotkeys additional universal port switching hotkey – ScrollLock + ScrollLock – for non-Windows OS on PC platform.
  • Channel selection by push button, keyboard hotkeys and switching software client (for Windows/Mac)
  • USB interface power LED indicators for easy status monitoring
  • Digital video resolution 1920 x 1200
  • 2-year limited warranty
Hardware
Interface DVI-I & DVI-D Compliant

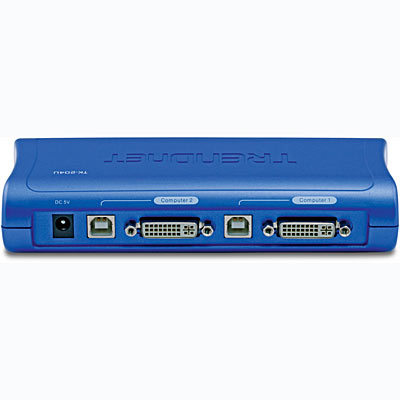

PC Port connection

2 x USB type B

2 x DVI-I (integrated with audio&mic)

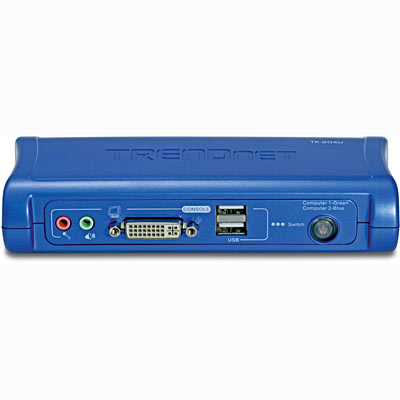

Console Port Connector

2 x USB Type A (keyboard & mouse & USB
2.0/1.1 Devices)
1x DVI 15-pin female
1 x 3.5mm audio jack
1 x 3.5mm mic jack

Cable 2 x detachable DVI/audio and mic combo cable 2 x USB cable
PC Selection Push button, hotkeys, switching software (for Windows/Mac)
Keyboard/Mouse Emulation PS/2
LED 2 x (green – PC1 / blue – PC2)
VGA Resolution 1920 x 1200 (digital)
Power 5V DC 2A external power adapter
Dimensions (L x W x H) 154 × 65.5 × 27 mm ( )
Weight 520g (18.4 oz.)
Temperature

Operating: 0° ~ 40°C (32° ~104° F)
Storage: -20° ~ 60°C (-4° ~ 140° F)

Humidity 0%~90% RH, non-condensing
Certification CE, FCC

TK-204UK

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
View Knowledgebase
Register Your Product
Package Contents
  • TK-204UK
  • 2 sets of DVI-I dual link cables
  • Multi-Language User’s Guide
  • Power Adapter
    (5V DC, 2A)
