Product Families » Wireless Networking » Wireless N » Wireless N Adapters » TEW-645UB
High Power Wireless N USB Adapter
TEW-645UB (Version V1.0R)
  • 2x the coverage of standard wireless n and 8x the coverage of wireless g adapters*
  • Connect your laptop or desktop to a high speed wireless n network
  • Position the included USB base to capture the strongest wireless signal
  • Advanced wireless encryption and Wireless Multi Media (WMM) QoS technology


 DISCONTINUED PRODUCT
The TEW-645UB (Version V1.0R) has been discontinued.  It has been replaced by the TEW-684UB (Version V1.0R). For a list of discontinued products, click here.

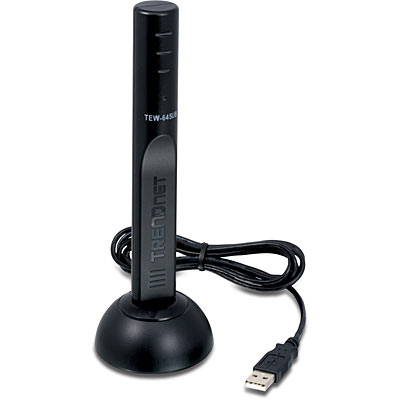

TEW-645UB
Click on image to enlarge

The High Power Wireless N USB Adapter provides over 2x the wireless coverage of standard wireless n and up to 8x the coverage of wireless g adapters*.

Connect your laptop or desktop computer to a high speed wireless n network and position the included 1.5 m (4.9 ft) USB base to capture the highest wireless signal strength.

Connecting to a wireless network is a breeze with automated Wi-Fi Protected Setup. Advanced wireless encryption ensures the highest data security. Wireless Multi Media (WMM) Quality of Service technology prioritizes streaming video, wireless gaming and online calls**.

**Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.


RoHS Compliant

  • Wi-Fi compliant with IEEE 802.11n draft 2.0 standard
  • Backwards compatible with IEEE 802.11g and IEEE 802.11b devices
  • Supports Ad-Hoc (Client-Client) and Infrastructure (AP-Client) Mode
  • Supports Signal Input Multiple Output (SIMO) antenna technology
  • Maximum reliability, throughput and connectivity with automatic data rate switching
  • Supports 64/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK
  • Low interference and high susceptibility provide reliable performance supports Windows 2000/XP/Vista operating systems
  • Wi-Fi Multimedia (WMM) Quality of Service (QoS) supported
  • Easy user setup and intuitive diagnostic utility
  • 3-year warranty
Hardware
Interface USB 2.0
Standards IEEE 802.11b, IEEE 802.11g and IEEE 802.11n (draft 2.0)
Power Consumption Receiving mode: 480mA @ 5v DC(max)
Supported OS Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), 2000
Dimensions (LxWxH) 195 x 67 x 24mm (7.6 x 2.6 x 0.9in)
Weight 110g (3.8oz)
Temperature Operating: 0° ~ 40° C (32° ~ 104° F); Storage: -20° ~ 70° C (68° ~ 158° F)
Humidity 10% ~ 90% max (non-condensing)
Certification FCC, CE
Wireless
Module Technique 802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
802.11g: OFDM with BPSK, QPSK and 16/64-QAM sub-carrier modulations
802.11b: DBPSK, DQPSK, CCK (DSSS)
Antenna Internal antenna 3dBi
Frequency 2.412 ~ 2.484 GHz
Data Rate (auto fallback) 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
802.11n: up to 300Mbps (RX)/150Mbps(TX)
Output Power 802.11b: 20dBm (typical)
802.11g: 18dBm (typical)
802.11n: 15dBm (typical) at HT20/HT40
Receiving Sensitivity 802.11b: -84dBm (typical) at 11mpbs
802.11g: -72dBm (typical) at 54Mbps
802.11n: -68dBm at 150Mbps
Encryption 64/128-bit WEP (Hex & ASCII), WPA/WPA2 (TKIP/AES), WPA-PSK/WPA2-PSK
Channels 1~11 (FCC), 1~13 (ETSI)


TEW-645UB

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
View Knowledgebase
Register Your Product
Package Contents
  • TEW-645UB
  • USB base stand with fixed USB A cable 1.5m (4.9ft)
  • CD-ROM(Driver and Utility)
  • Multi-Language Quick Installation Guide
Related Products
N150 Mini Wireless USB Adapter
TEW-648UB
