Product Families » KVM » Desktop » USB Console Ports » TK-209K
2-Port USB KVM Switch Kit w/ Audio
TK-209K (Version V1.1R)
  • 2-port KVM switch with VGA and USB connection to computers and audio device
  • Listen to music from one computer while working on the other
  • High quality 2048x1536 resolution for a crisp display
  • Supports most operating systems and advance mouse designs
  • All required cabling included


 DISCONTINUED PRODUCT
The TK-209K (Version V1.1R) has been discontinued.  It has been replaced by the TK-209K (Version v1.2R). For a list of discontinued products, click here.

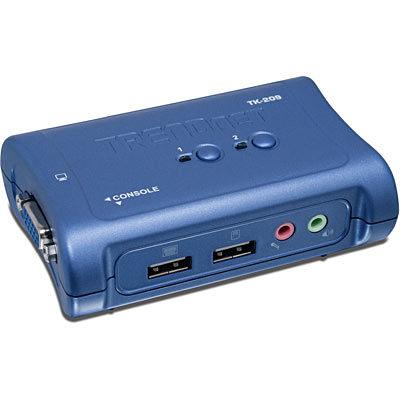

TK-209K
Click on image to enlarge

The 2-Port USB Audio KVM Switch lets you control multimedia PCs with just one keyboard, monitor, mouse, microphone, and a set of speakers. The KVM switch not only allows you to share your monitor, keyboard and mouse but you can also share microphone and speakers. With just a simple press of a button, this KVM switch eliminates the hassle of cable swapping and switching between 2 PCs. With it’s Hot-Plug, Auto-Scan and Hot-Key operating features, the TK-209K is the perfect choice for managing 2 PCs. Separate KVM cables are included.


RoHS Compliant

  • Use one keyboard, monitor, and mouse to control two computers
  • 2-port USB KVM Switch with 1 set of Mic/Speaker port.
  • 2 sets of VGA and 2 sets of Audio & Microphone Cables
  • Supports Microsoft IntelliMouse, Optical Mouse, Logitech Net Mouse and more
  • Supports super High Video Quality, up to 2048 x 1536 VGA resolution
  • Supports Windows 98(SE)/ME/2000/XP/2003 Server, Linux, and Mac OS
  • Multi-Platform supports for PCs, Macintosh G3/G4, iMac and Mac Mini
  • Auto-Scan & LED display for PCs monitoring
  • Hot-Key, push button and Windows-based client switching software
  • User definable hot-key (Windows Only)
  • Plug & Play and Hot-Pluggable
  • USB Interface Power method
  • 2-year limited warranty
Hardware
Management 2 computers
USB Interface USB 1.1 Specifications Compliant
KVM Cable 2 Sets of 1.2M (4ft) KVM Cables
2 Sets of Audio/Microphone Cables (USB mini B to 3.5mm Jack)
Cable Interface KVM
  • To KVM: 1 x VGA/SVGA HDB 15-pin (male)
  • To PC: 1 x USB (Type A), 1 x VGA/SVGA HDB 15-Pin (male)
Audio
  • To KVM: 1 x USB (Mini B)
  • To PC: 1 x 3.5mm audio in/out jack, 1 x 3.5mm microphone in/out jack
Console Connectors 1 x USB Keyboard (Type A)
1 x USB Mouse (Type A)
1 x VGA/SVGA HDB 15-pin
1 x 3.5mm audio in/out jack
1 x 3.5mm microphone in/out jack
Port Selection Push Button, Hot-Key Commands, or Windows-Based Client Switching Software
Auto-Scan Interval 10 ~ 60 seconds
Keyboard State Saved and Restored
Power Type USB Interface Power
Dimensions 98 x 70 x 28 mm (3.86 x 2.76 x 1.1 in.)
Weight 100 g (3.6 oz)
Temperature
  • Operating: 0°C ~ 40°C (32°F ~104°F)
  • Storage: -20°C ~ 60°C (-4°F ~140°F)
Humidity 0%~90%, Non-Condensing
Certifications CE, FCC



TK-209K

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info
Email a Friend
Quick Installation Guide
Downloads
Register Your Product
Package Contents
  • TK-209K
  • Multi-Language Userīs Guide
  • Utility CD-ROM
  • 2 sets of USB KVM Cables
  • 2 sets of KVM & Audio Cables
