Outdoor 2 MP Full HD Vari-Focal PoE Day / Night Dome Network Camera

TV-IP342PI (Version v1.0R)

  • Adjustable fixed position dome network camera
  • Manual 3x optical zoom provides installation flexibility
  • Night vision up to 15 meters (50 ft.)
  • Full 1080p HD resolution
  • Outdoor IP66 weather rating
  • Save installation costs with Power over Ethernet (PoE)
  • Program motion detection recording and email alerts
  • Free mobile apps


The Outdoor 2 MP Full HD PoE Day/Night Dome Network Camera, model TV-IP342PI, offers 15 m (50 feet) night vision, an IP66 weather rating, tamper detection, and 3x manual optical zoom for installation flexibility. Record full 1080p HD video (1920 x 1080) at 30 fps in a space saving H.264 compression format. Manage up to 32 TRENDnet cameras with included complimentary software and mobile apps.

Vari-Focal

Manual optical zoom by a factor of 3 (and manually re-focus) to a final fixed position for installation flexibility

Night Vision

Night vision up to 15 meters (50 ft.)

PoE

Save installation costs with Power over Ethernet (PoE)

IP66 Rating

Outdoor IP66 weather rated housing

Fixed Pan Tilt

Pan and tilt the camera to its final fixed position

BNC Port

BNC analog video out port to connect directly to a television for installation flexibility

MicroSD Card Slot

Add up to 32 GB memory for on-board video storage

Resolution

Record 2 Megapixel Full 1080p HD, 1920 x 1080 at 30 fps, in the space saving H.264 compression format

ONVIF

ONVIF compliant

Samba Support

Record video to a defined network storage device

Tamper Detection

Receive tamper detection video clips via email, ftp, or save to network storage device or Micro-SD card

D-WDR

Improved image quality in high contrast light environments with Digital Wide Dynamic Range technology

Motion Detection

Create up to 3 motion detection windows with separate sensitivity settings and event triggers

Free Software

Complimentary pro-grade software to manage up to 32 TRENDnet cameras

Free Apps

Live video to a mobile device with free Apple®and Androidapps

Lens
  • Focal Length: 3 - 9 mm @ F1.8
  • Focal depth: 70 cm to infinity
  • Vari-Focal lens (internal manual zoom and focus adjustment)
  • Sensor: 1/3” 2 Megapixel CMOS sensor
  • Zoom: optical 3x, digital 4x
Viewing Angle
  • Diagonal: 42 - 145°
  • Horizontal: 36 - 127°
  • Vertical : 22 - 69°
Minimum Illumination
  • IR off: 0.1 lux
  • IR on: 0 lux
  • 15 meter IR illumination distance
  • IR wavelength: 850nm
Video Codecs/Resolution
  • H.264: 1920 x 1080 up to 30 fps
  • MJPEG: 1920 x 1080 up to 30 fps
  • H.264: 640 x 480 up to 15 fps (3GPP only)
Audio
  • External 3.5 mm microphone jack
  • External 3.5 mm speaker jack
Hardware Standard
  • IEEE 802.1x
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3af

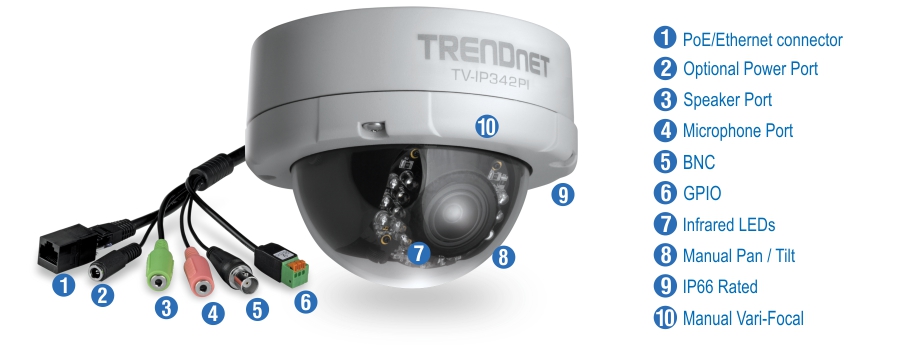

Device Interface
  • 10/100 Mbps PoE port
  • Micro SD card slot (internal)
  • IR LEDs
  • BNC port
  • 3.5 mm microphone jack
  • 3.5 mm speaker jack
  • GPIO terminal
  • Power jack (optional)
Housing
  • IP66 rated
  • Impact rating: IK10
  • Direct cabling through the bottom or side of housing
Network Protocol
  • IPv4, IPv6, UDP, TCP/ IP, ONVIF V2.2
  • DHCP, NTP, DDNS, SMTP, FTP, LLTD
  • SNMP v1-v3, QoS/DSCP, IEEE 802.1X
  • Samba, Bonjour
  • HTTP, HTTPS
  • PPPoE
  • UPnP, RTSP, RTP, 3GPP
Dimension
  • Camera: 137 x 137 x 102 mm (5.4 x 5.4 x 4 in.)
Weight
  • 962 g (2.1 lbs.)
Operating Temperature
  • -20 – 50 °C (-4 – 122 °F)
Humidity
  • Max. 90% non-condensing
Power
  • Input: 100 - 240 V AC , 50/60 Hz, 1 A
  • Output: 12 V DC, 1 A external power adapter (for non-PoE installations)
  • Max. consumption: 6.7 W
Management Interface
  • Multi-language support: English, French, German, Russian, and Spanish
  • IP address filter
  • QoS traffic prioritization
  • Time, date, and text overlay
  • Image settings: brightness, contrast, hue, saturation, sharpness, AGC (automatic gain control), Shutter time, sense-up, flip, mirror, 90 degree rotate, day/night mode, white balance
  • D-WDR enhances video quality in high contrast daytime lighting
  • BNC analog video output
  • 2D and 3D Digital Noise Reduction enhances night vision quality Recording: to computer, NAS, SAMBA, or through software
  • Video Recording: scheduled, motion detection, sound detection, and tamper detection
  • Motion detection: define up to three motion detection areas and motion sensitivity
  • Sound detection: requires installation of third party microphone
  • Privacy masks: define custom privacy mask up to 3 areas
  • Tamper detection function: email notification, FTP, alarm, SD card, or Samba server if the viewing field darkens suddenly
  • Network disconnection fallback: set to automatically save video to Micro SD card (sold separately) if connection to network is broken
  • Snapshot: real time snapshot, sound detection, and motion detection
  • Supported dynamic DNS services: dyn.com, no-ip.com, and iptecno.com
  • Management setting: maximum 21 user accounts
  • Supports remote management
  • Compatibility (PC based): Internet Explorer® 8.0 or higher, Safari® 4.0 or higher
TRENDnetVIEW Pro Software
  • Supports up to 32 TRENDnet cameras
  • Multiple language support
  • Set recording options (motion detection, schedule, event trigger)
  • Advanced search and playback tools
  • Custom viewing modes and options
  • Compatibility: Windows® 10, 8.1, 8, 7, Vista, XP, Windows Server® 2003, 2008
TRENDnetVIEW App
  • Free Apple® and Android app
  • View the camera on a mobile device
  • Take snapshots
  • Zoom
Certifications
  • CE
  • FCC
Warranty
  • 3 year limited

PACKAGE CONTENTS

  • TV-IP342PI
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility, Software, & User's Guide)
  • Power adapter (12 V DC, 1A) (1.5 m/5 ft.)
  • Network cable (1.5 m/5 ft.)
  • RJ45 coupler
  • Camera mounting hardware


All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
