Product Families » Wireless Networking » N300 Wireless » N300 Wireless Adapters » TEW-623PI
N300 Wireless PCI Adapter
TEW-623PI (Version v3.0R)
  • Connect your PC to a wireless network in minutes
  • 12x the speed and 4x the coverage of wireless g
  • Advanced wireless encryption provides robust security

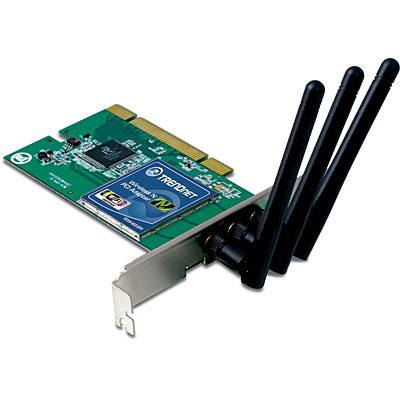

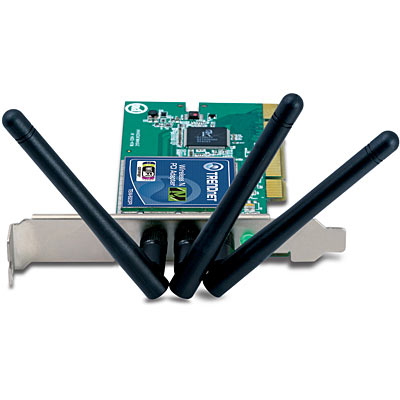

TEW-623PI
Click on image to enlarge

The N300 Wireless PCI Adapter allows you to connect wirelessly with supercharged speed, range and reliability.  This 802.11n device seamlessly connects to your wireless network without performance degradation.

Wireless speeds increase up to 300Mbps* when connecting to TRENDnet Wireless N access points or wireless routers.  The latest antenna technology increases wireless data coverage throughout homes and businesses. It also supports universal wireless connectivity with 802.11b or 802.11g networks. Advanced wireless encryption provides secured transmissions.  Increased speed and throughput makes it the perfect solution to fulfill your multimedia needs.


RoHS Compliant

  • Wi-Fi compliant with the wireless IEEE 802.11n standard
  • Extreme wireless performance: Up to 12x the speed of wireless g* (IEEE 802.11g)
  • Up to 4x the coverage of wireless g*
  • Advanced wireless encryption: WEP, WPA, WPA2, WPA-PSK and WPA2-PSK
  • 3 detachable high gain antennas maximize wireless n performance with Multiple Input Multiple Output (MIMO) technology
  • Intuitive user setup and diagnostics utilities
  • Backwards compatible with wireless g and wireless b standards (IEEE 802.11b/g)
  • Maximum reliability, throughput and connectivity with automatic data rate switching and dynamic data rate Scaling
  • Wi-Fi Multimedia (WMM) Quality of Service (QoS) supported
  • Compatible with Windows 7/Vista/XP/2000 operating systems
  • 3-year limited warranty
Hardware
Interface 32-Bit PCI Rev. 2.1/2.2/2.3
Standards IEEE 802.11b, IEEE 802.11g and IEEE 802.11n
Power Consumption
(receive / transmit)
802.11b : 480mA/480mA
802.11g : 490mA/450mA
802.11n : 550mA/630mA
Supported OS Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), 2000
Weight 90g (3.2 oz)
Temperature Operating: 0° ~ 40° C (32° ~ 104° F) Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity 10% ~ 95%max (non-condensing)
Certification FCC, CE
Wireless
Module Technique 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
802.11g/n: OFDM
Antenna 3 x 2dBi detachable antennas (Reverse SMA connector)
Frequency 2.412 ~ 2.484 GHz
Data Rate (auto fallback) 802.11b: up to 11Mbps
802.11g: up to 54Mbps
802.11n: up to 300Mbps
Output Power 802.11b: 17dBm (typical)
802.11g: 13dBm (typical)
802.11n :13dBm (typical)
Receiving Sensitivity 802.11b: -85dBm (typical) @ 11mpbs
802.11g: -70dBm (typical) @ 54Mbps
802.11n: -65dBm (typical) @300Mbps
Encryption 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Channels 1~11 (FCC), 1~13 (ETSI)


TEW-623PI

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
Register Your Product
Package Contents
  • TEW-623PI
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility and User’s Guide)
