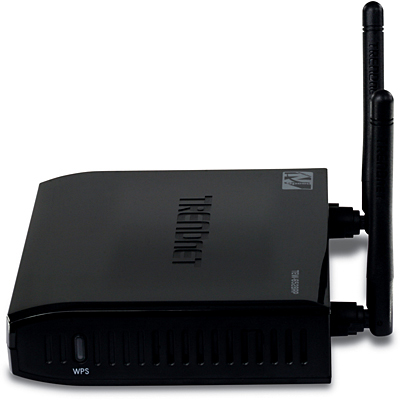

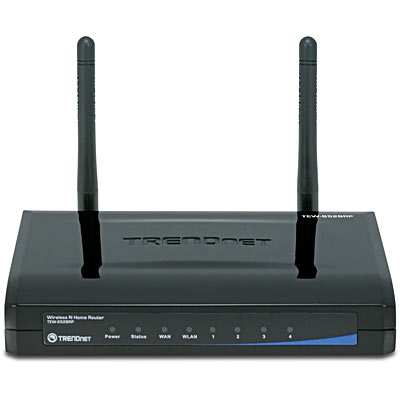

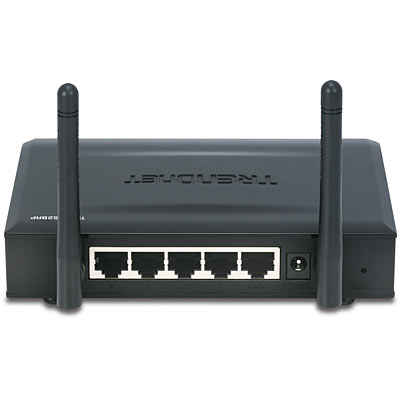

N300 Wireless Home Router
TEW-652BRP (Version v2.0R)
  • 12x the speed and 4x the coverage of wireless g
  • Stream video, download files, talk online and play games all at the same time
  • Advanced wireless encryption and a firewall provides robust security


 DISCONTINUED PRODUCT
The TEW-652BRP (Version v2.0R) has been discontinued.  It has been replaced by the TEW-652BRP (Version v3.0R). For a list of discontinued products, click here.

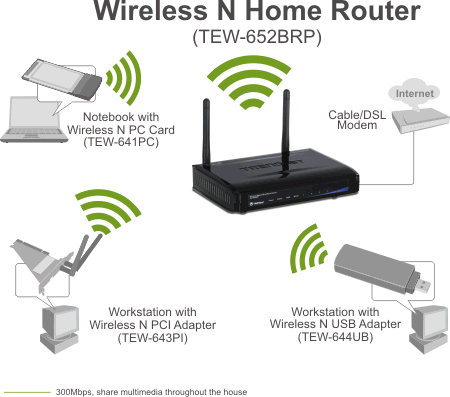

The N300 Wireless Home Router delivers the highest level of security with 12x the speed and 4x the range of wireless g products. Quickly install the router and use it with TRENDnet wireless n adapters to receive the full benefits of wireless n speed and coverage.

The latest in wireless encryption and a secure firewall provide the ultimate in wired and wireless security. Advanced Multiple Input Multiple Output (MIMO) antenna technology delivers expansive coverage and eliminates dead spots. A quick and intuitive installation process, one touch wireless connection using Wi-Fi Protected Setup and advanced management capabilities make this product well suited for your most demanding home networking needs.

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.



RoHS Compliant
  • Wi-Fi compliant with IEEE 802.11n and IEEE 802.11b/g standards
  • 4 x 10/100Mbps Auto-MDIX LAN port and 1 x 10/100Mbps WAN port (Internet)
  • Supports Cable/DSL modems with Dynamic IP, Static IP, PPPoE, PPTP, L2TP & BigPond connection types
  • High-speed data rates up to 300Mbps using an IEEE 802.11n connection
  • 2 fixed external antennas support high speed performance and great coverage with MIMO technology
  • Network Address Translation (NAT) firewall
  • Wi-Fi Protected Setup (WPS) button for simple network connectivity
  • Universal Plug and Play (UPnP) and Application Level Gateway support for Internet applications such as email, FTP, gaming, remote desktop, Net Meeting, telnet and more
  • Provides additional security with ¬†Internet Access Control (MAC Address, Domain, and¬† IP Filtering)
  • Easy remote management via Web browser
  • Wireless security support for WEP, WPA & WPA2
  • Indoor coverage up to 100 meters (330ft.)*
  • Outdoor coverage up to 300 meters (980ft.)*
  • Works with Windows, Linux and Mac operating systems
  • 3- year limited warranty

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.
** Internet Explorer 6.0 and above is recommended

  • Hardware
  • Standards
  • Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX) Wireless: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0), IEEE 802.11e QoS
  • WAN
  • 1 x 10/100Mbps Auto-MDIX port (Internet)
  • LAN
  • 4 x 10/100Mbps Auto-MDIX ports
  • WPS Button
  • Enables Wi-Fi Protected Setup (WPS) function
  • Connection Type
  • Dynamic IP, Static (Fixed) IP, PPPoE, PPTP, L2TP To be supported (Big Pond, Russia PPoE, PPTP, and L2TP)
  • UPnP
  • UPnP IGD 1.0 compliant
  • DMZ
  • DMZ host & Virtual Servers
  • DNS
  • Static or WAN assigned DNS servers; 3 verified services for DDNS
  • Internet Access Control
  • MAC Address Filter, Domain/URL Filter, Protocol/IP Filter
  • Logging
  • 5 types of event logging; email report
  • LED Indicator
  • Power, LAN1~LAN4, WAN, WLAN, Status
  • Power Adapter
  • 7.5V DC, 1A external power adapter
  • Power Consumption
  • 4.5watts (max)
  • Dimension (L x W x H)
  • 150 x 130 x 30mm (5.9 x 5.1 x 1.2in)
  • Weight
  • 245g (8.6oz)
  • Temperature
  • Operation: 0°~ 40°C (32°F~ 104°F)Storage: -10°~ 70°C (14°F~158 °F)
  • Humidity
  • Max. 90% (non-condensing)
  • Certifications
  • CE, FCC
  • Wireless
  • Frequency
  • 2.412~2.484GHz band
  • Antenna
  • 2 x 2dBi fixed dipole antennas
  • Media Access Protocol
  • CSMA/CA with ACK
  • Data Rate
  • 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps 802.11n: up to 300Mbps
  • Security
  • WEP(HEX/ASCII): 64/128-bit WPA(AES/TKIP): WPA/WPA2-Radius, WPA-PSK/WPA2-PSK
  • Output Power
  • 802.11b: 17dBm (typical) 802.11g: 13dBm (typical) 802.11n: 13dBm (typical)
  • Receiving Sensitivity
  • 802.11b: -85dBm (typical) @ 11Mpbs 802.11g: -68dBm (typical) @ 54Mbps 802.11n: -62dBm (typical) @ 300Mbps
  • Channels
  • 1~ 11 (FCC), 1~13 (ETSI)
  • * Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions. ** Internet Explorer 6.0 and above is recommended


    Package Contents

    • TEW-652BRP
    • Multi-Language Quick Installation Guide
    • CD-ROM (User’s Guide)
    • Power adapter (7.5V DC, 1A)
    • Cat. 5 Ethernet cable (1.5m / 5ft.)
