24-port Gigabit Web Smart Switch w/ 2 Shared Mini-GBIC slots
TEG-240WS (Version C2.0R)
  • Provides SNMP ( v1), IEEE 802.1X and STP support
  • 48Gbps switching capacity
  • 24 x Gigabit Auto-MDIX ports
  • 2 x shared mini-GBIC slots
  • Supports IEEE 802.1Q VLAN, Asymmetric VLAN, QoS, IGMP, Trunking and Mirroring


 DISCONTINUED PRODUCT
The TEG-240WS (Version C2.0R) has been discontinued.  It has been replaced by the TEG-240WS (Version D1.0R). For a list of discontinued products, click here.

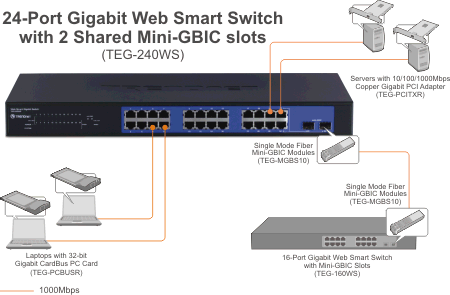

The 24-Port Gigabit Web Smart Switch with 2 Shared Mini-GBIC Slots (model TEG-240WS) delivers a 48Gbps switching capacity with managed layer 2 features at a reduced cost. Support for SNMP v1, 802.1X, STP, 802.1Q VLAN, QoS, IGMP snooping, Broadcast Storm Control and port Trunking provides a cost effective, scalable and secure backbone switch solution for SMB networks.

SNMP support enables the switch to provide valuable status and event information, saving system administrators time and resources. Connect a fiber network to the shared Mini-GBIC slots. Access the Web-browser management interface and segment up to 256 Virtual Local Area Networks, manage network priority with 802.1p support and dedicate bandwidth with port-based Trunking.


  • 24 x 10/100/1000Mbps Auto-MDIX RJ-45 ports
  • 2 x 1000Base-SX/LX Mini-GBIC slots (shared with Gigabit ports 23-24)
  • 48Gbps switching capacity
  • IEEE 802.3x Full Duplex Flow Control and Back Pressure
  • Static Port Trunk
  • IEEE 802.1D Spanning Tree Protocol
  • IEEE 802.1p QoS
  • IEEE 802.1X Authentication and SNMP v1 support
  • Supports port based IEEE 802.1Q VLAN Tag and Asymmetric VLAN
  • Full Wire-Speed non-blocking reception and transmission
  • Store and Forward switching method

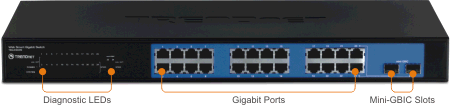

  • Front panel diagnostic LEDs
  • Supports Jumbo Frame packet transfer (max size up to 10Kytes)
  • Integrated address look-up engine supports up to 8K absolute MAC addresses
  • Supports 512Kbytes RAM for data buffering
  • Easy configuration via Web browser
  • Standard 19” (1U) rackmount size (rackmount kit included)
  • 3-year limited warranty
  • Hardware
  • Standards
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
  • IEEE 802.3ab 1000Base-T
  • IEEE 802.3z 1000Base-SX/LX (Mini-GBIC)
  • IEEE 802.3x Flow Control and Back Pressure
  • IEEE 802.1D Spanning Tree Protocol
  • IEEE 802.1p QoS
  • IEEE 802.1Q VLAN Tag
  • IEEE 802.1X Authentication
  • SNMP v1
  • Protocol
  • CSMA/CD
  • Transmission Method
  • Store-and-Forward
  • Interface
  • 24 x 10/100/1000Mbps Auto-MDIX RJ-45 ports
  • 2 x 1000Base-SX/LX Mini-GBIC slots (shared with Gigabit ports 23-24)
  • Network Media
  • Ethernet: UTP/STP Cat. 3, 4, 5 up to 100m
  • Fast Ethernet: UTP/STP Cat. 5, 5e up to 100m
  • Gigabit: UTP/STP Cat. 5, 5e, 6 up to 100m
  • Data Transfer Rate
  • 10Mbps: 10/20Mbps (Half/Full-Duplex)
  • 100Mbps: 100/200Mbps (Half/Full-Duplex)
  • 1000Mbps: 2000Mbps (Full-Duplex)
  • Data RAM Buffers
  • 512KBytes per device
  • Filtering Address Table
  • 8K entries per device
  • Switch Fabric
  • 48Gbps forwarding capacity
  • Forwarding Rate
  • 35.7 Mpps
  • Diagnostic LEDs
  • Per Unit: Power, System
  • Per Copper Gigabit Port: Link/ACT, 1000M, 100M
  • Per Mini-GBIC Port: Link/ACT, 1000M
  • Power Supply
  • 100 ~ 240VAC 50/60Hz, internal universal switching power
  • Power Consumption
  • 35 watts (max)
  • Dimension
  • 440 x 210 x 44mm (17.3 x 8.3 x 1.73in.)
  • Weight
  • 3kg (6.6lb)
  • Temperature
  • Operating: 0°C ~ 40°C (32°F ~ 104°F)
  • Storage: -10°C to 70°C (14°F to 158°F)
  • Humidity
  • Operating: 10 % ~ 90 % (non-condensing)
  • Storage: 5 % ~ 90 %(non-condensing)
  • Certifications
  • CE, FCC


Package Contents

  • TEG-240WS
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility & User’s Guide)
  • Rackmount kit
  • Power cord
