Product Families » USB / FireWire » USB 1.0 / 1.1 / 2.0 Devices » TU2-HDMI
USB to HDMI TV Adapter
TU2-HDMI (Version v1.0R)
  • Clone or divide a viewing field to an HDMI monitor
  • Experience high definition 1920 x 1080 image quality
  • Wide screen and audio support
  • Enhance visual impact with 32-bit True Color Depth technology


TU2-HDMI
Click on image to enlarge

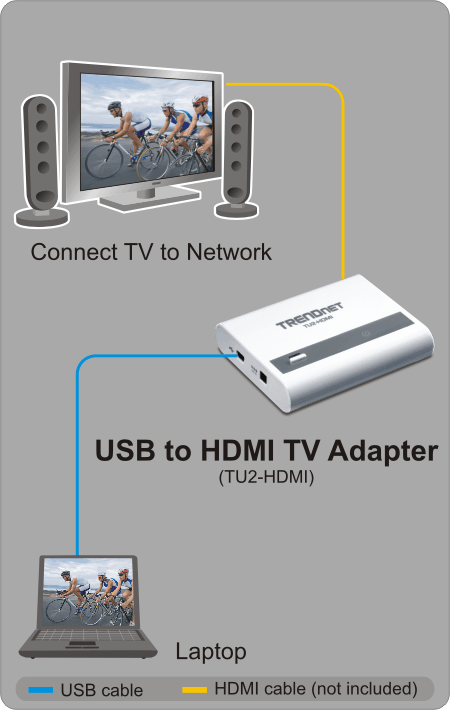

The USB to HDMI Monitor Extender, model TU2-HDMI, uses a USB port on your Windows-based computer to quickly add an HDMI monitor or television to your workstation.

Add an HDMI monitor or television to your computer by simply plugging in the TU2-HDMI—drivers will automatically install.

Features audio support for multiple audio protocols. Clone mode repeats a display area to the new HDMI based device. Extend mode stretches a display area over multiple monitors. Use up to six TU2-HDMIs to add six monitors or televisions to your workstation. Experience the visual impact of 32-bit True Color Depth technology and a sparkling 1920 x 1080 high definition image. Standard and wide screen viewing modes are supported.

  • Compliant with monitors, televisions, and projectors with an HDMI port
  • High definition of up to UXGA 1920 x 1080 resolution for standard or wide screen ratios
  • Extend or mirror mode support
  • Resumes from hibernation and standby modes
  • Digital RGB, DAC, DVI, FPI display connectivity
  • Supports four audio inputs: Dolby digital, DTS, DVD-Audio, and MPEG2
  • 32-bit True Color Depth technology
  • Supports Windows 8, 7, Vista, XP and Mac operating systems
  • 2-year limited warranty
Hardware
Standard USB 2.0
Interface HDMI 1.3 (up to 165MHz) – 19pin female connector
USB Mini-B type female connector
Power mode Bus-powered
Supported OS
  • Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)
  • Mac OS: 10.8, 10.7, 10.6
Resolution Up to 1920 x 1080 UXGA
Power Consumption 350mA
Optional Power 5V DC, 1A (not included)
Dimension 97 x 80 x 18.5 mm (3.8 x 3.1 x 0.7 in.)
Weight 70 g (2.5 oz)
Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 80° C (14° ~ 176° F)
Humidity 90% max. (non-condensing)
Certifications CE, FCC
System Requirement (For Office use)
Windows XP Processor: 1.6GHz Ato mor Celeron
RAM: 512MB
Windows 7/Vista Processor: 1.4GHz Core2Duo or better
RAM: 1GB
System Requirement (For Video streaming and playback)
Windows XP Processor: 1.8GHz Core2Duo or better
RAM: 1GB
Windows 7/Vista Processor: 2.4GHz Core2Duo or better
RAM: 2GB
Video Card: Intel® GMA X5400, ATI Radeon™ HD3xxxx, NVidia® GeForce® 9-series or better

TU2-HDMI

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
View Knowledgebase
Register Your Product
Package Contents
  • TU2-HDMI
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility & Drivers)
  • 1 x USB cable (45 cm / 18 in.)
