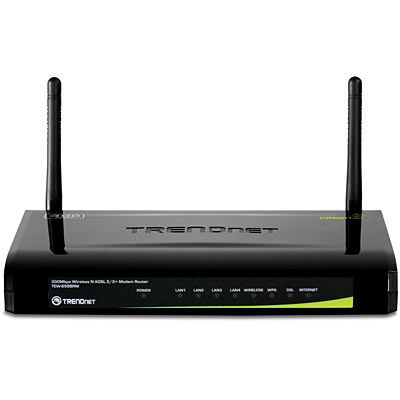

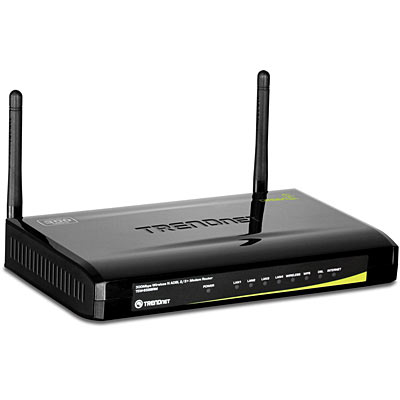

N300 Wireless ADSL 2/2+ Modem Router
TEW-658BRM (Version v1.0R)
  • Combination ADSL 2/2+ modem and high performance wireless n router
  • Compatible with most ADSL-based Internet service provider networks
  • No need to rent a modem from an Internet service provider
  • Advanced features include a double firewall, one-touch Wi-Fi Protected Setup (WPS), and WMM® Quality of Service controls

The N300 Wireless ADSL 2/2+ Modem Router, model, TEW-658BRM, provides both internet access and a high-performance wireless n network in a single solution. No need to buy a separate modem and router. Install this device quickly and browse the internet, download files, and talk online with the latest in wireless n technology.

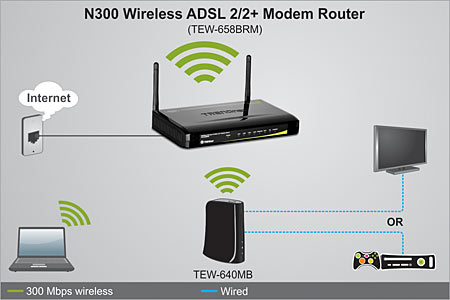

Connect computers, game consoles, media players, and DVRs to the built-in 4-port switch. The latest in wireless encryption and a double firewall protect your valuable data. WMM® Quality of Service (QoS) technology prioritizes online gaming, internet calls, and video streams. One-touch Wi-Fi Protected Setup (WPS) connects WPS peripheral devices at the touch of a button.

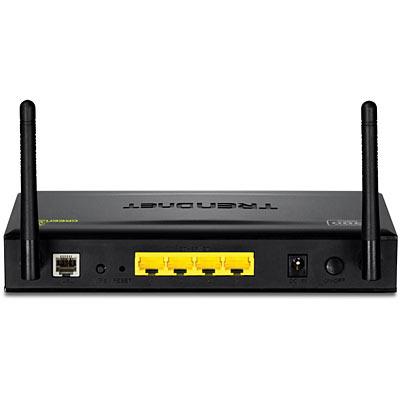

  • 4 x 10/100 Mbps Auto-MDIX LAN ports
  • 1 x RJ-11 WAN port (internet)
  • On / off power button
  • Wi-Fi compliant with IEEE 802.11n standard
  • Backwards compatible with IEEE 802.11b/g devices
  • 2 x fi xed 2 dBi antennas for high speed performance and expansive coverage with MIMO antenna technology
  • Router + Modem or Modem Only modes
  • Compliant with ADSL, ASDL2, and ADSL2+ standards
  • Supports up to 8 PVCs
  • VLAN support and Quality of Service (QoS) technology prioritizes gaming, internet calls, and streaming video
  • Advance Firewall protection with Network Address Translation (NAT) and Stateful Packet Inspection (SPI)
  • Internet Access Control via IP / MAC Address Filtering and Domain / Keyword Filtering
  • Wi-Fi Multimedia (WMM) Quality of Service (QoS) data prioritization
  • Advanced wireless encryption: 64/128 bit WEP, WPA / WPA2-RADIUS, and WPA / WPA2-PSK
  • One touch wireless connection using the WPS button
  • Universal Plug and Play (UPnP)
  • Easy Web browser confi guration and remote management
  • Supports TR069 remote management and command line interface (CLI) via telnet
  • 3-year limited warranty

* Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffi c, building materials and other conditions.

  • Hardware
  • Standards
  • IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
  • RJ-11 Port (ADSL line Interface)
  • Complies with ADSL standards ANSI T1.413 Issue2
  • G.992.1 (G.dmt, Annex A)
  • G.992.2 (G.lite)
  • Complies with ADSL2 standard G.992.3 (G.dmt.bis, Annex L)
  • Complies with ADSL2+ standard G.992.5 Annex M
  • ATM
  • VC and LLC Multiplexing
  • Bridged / Routed Ethernet over ATM (RFC1483/2684)
  • OAM F4/F5 loop-back
  • PPP over ATM (RFC2364)
  • PPP over Ethernet (RFC2516)
  • ATM Traffic QoS (UBR, CBR, rt-VBR, nrt-VBR)
  • Management
  • Web based Configuration (HTTP)
  • Command Line Interface (CLI) via Telnet
  • TR-069 Remote Management
  • IGMP v1/v2 Support
  • SW upgrade
  • LAN
  • 4 x 10/100 Mbps Auto-MDIX ports
  • Button
  • Power: On / off power button
  • WPS: Enables Wi-Fi Protected Setup (WPS) function
  • Reset: Reset to factory defaults
  • Firewall
  • NAT, SPI, Content Filter IP, MAC, Domain, and Keyword
  • LED Indicator
  • Power, LAN1~LAN4, WLAN, ADSL and Internet, WPS
  • Power Adapter
  • 12V DC, 1A external power adapter
  • Power Consumption
  • 8.4 watts (max)
  • Dimension (L x W x H)
  • 201 x 116 x 31 mm (8 x 4.6 x 1.2 in.)
  • Weight
  • 301 g (10.6 oz)
  • Temperature
  • Operation: 0° ~ 40°C (32°F ~ 104°F)
  • Storage: -10° ~ 70°C (14°F ~ 158°F)
  • Humidity
  • Max 95% (non-condensing)
  • Certifications
  • CE, FCC
  • Wireless
  • Frequency
  • 2.415 ~2.484 GHz band
  • Modulation
  • DBPSK/DQPSK/CCK/OFDM (BPSK/QPSK/16-QAM/64-QAM)
  • Antenna
  • 2 x 2 dBi fixed dipole antennas
  • Data Rate
  • 802.11b: up to 11 Mbps
  • 802.11g: up to 54 Mbps
  • 802.11n: up to 300 Mbps
  • Security
  • WEP(HEX/ASCII): 64/128-bit
  • WPA(AES/TKIP): WPA/WPA2-RADIUS, WPA-PSK/WPA2-PSK
  • Output Power
  • 802.11b: 15 dBm (typical)
  • 802.11g: 12 dBm (typical)
  • 802.11n: 11 dBm (typical)
  • Receiving Sensitivity
  • 802.11b: -80 dBm (typical) @ 11 Mbps
  • 802.11g: -65 dBm (typical) @ 54 Mbps
  • 802.11n: -64 dBm (typical) @ 300 Mbps
  • Channels
  • 1~ 11 (FCC), 1~13 (ETSI)


Package Contents

  • TEW-658BRM
  • Multi-Language Quick Installation Guide
  • CD-ROM (User’s Guide)
  • Power adapter (12V DC, 1A)
  • Network cable (1.5m / 5ft.)
  • RJ-11 telephone cable (1m / 3ft.)
