Product Families » Switches » Managed Layer 2 » TEG-S3M11CF

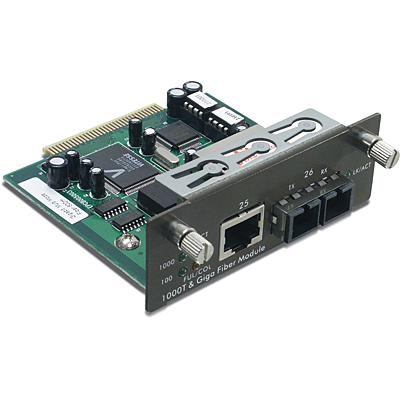

2-Port Gigabit Fiber Combination Module
TEG-S3M11CF

Works with the TEG-S3000i switch chassis
1 x 10/100/1000Mbps Auto-MDIX Gigabit copper port and 1 x 1000Base-SX Multi-Mode SC type fiber port

Click on image to enlarge

The TEG-S3M11CF 2-Port Multi Mode Fiber combination module works with the TEG-S3000i Managed Layer 2 Chassis. The module includes 1 x 10/100/1000Mbps (RJ-45 type) port and 1 x 1000Base-SX (SC-Type) port.

Compliant with IEEE 802.3ab or IEEE 802.3z Gigabit Standards
Modules: 2 Gigabit Copper Port (TEG-S3M2CG), 2 Mini-GBIC Slot (TEG-S3M2MG), and Gigabit Copper and Fiber Combo (TEG-S3M11CF)
Optional Gigabit Modules for TEG-S3000i (Layer 2 Managed Chassis Switch)
3-year limited warranty

Hardware
Standards	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab Gigabit Copper IEEE 802.3z Gigabit fiber for SX and LX IEEE 802.3x Flow Control and Back Pressure
Interface	TEG-S3M2CG : 2 x 10/100/1000MbpsAuto-MDIX RJ-45 Port TEG-S3M2MG : 2 x 3.3v Mini-GBIC Slot TEG-S3M11CF :1 x 10/100/1000Mbps Auto-MDIX RJ-45 Port, 1 x 1000Base-SX Multi-Mode SC Type Fiber Port
LED	Link/Activity, 100Mbps, 1000Mbps, Full Duplex, GBIC Fiber
Cable Parameters	Gigabit Copper: Cat.5 or Cat.6 4-paris UTP Cables, up to 100m Mini-GBIC: LC Type. 62.5/125μm or 50/125μm Multi-Mode Fiber Optic cable (SX) LC Type. 9/125μm or 10/125μm Single-Mode Fiber Optic cable (LX) Gigabit SX : 50/125um or 62.5/125um Multi-Mode Fiber Optic, up to 550m (wavelength: 850nm)
Dimensions	84 x 88 x 30mm (3.3 x 3.5 x 1.2 in.)
Weight	200g (7.3 oz.)
Temperature	Operating: 0°~45°C (32°~113°F) Storage: -10°~70°C (14°~158°F)
Humidity	10%~90% (non-condensing)
Certifications	CE, FCC

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
