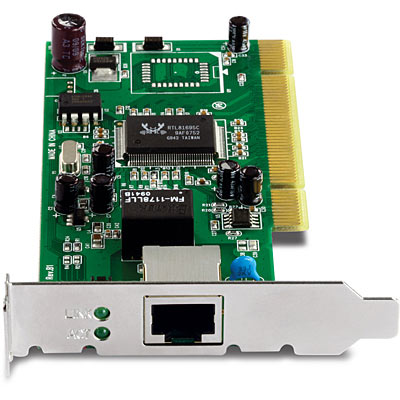

Low Profile Gigabit PCI Adapter

TEG-PCITXRL (Version v3.0R)

  • Compatible with low profile form factor desktop computers with an available PCI slot
  • Install a Gigabit Ethernet port on your low profile desktop computer in minutes
  • Save time by sharing files and accessing data quickly
  • Experience 2000Mbps speed in Full-Duplex mode

The Low Profile Gigabit PCI Adapter, model TEG-PCITXRL, adds a Gigabit Ethernet port to a low profile desktop computer with an available PCI slot. VLAN tagging technology efficiently utilizes network bandwidth for maximum data throughput. With its 2000Mbps bandwidth capacity, the TEG-PCITXRL provides a high bandwidth connection to your low profile desktop computer.

  • Designed to fit a low profile PCI slot
  • Supports 32-Bit PCI Local Bus Master high-speed operation (Rev. 2.3 specification)
  • 1 x 10/100/1000Mbps Auto Negotiation and Auto-MDIX Port
  • Built-in FIFO (8K/64K) buffers reduce overhead memory transfers
  • Full-Duplex mode doubles network data rates up to 2000Mbps
  • Supports IEEE 802.1Q VLAN Tagging (Windows 2000 and XP only)
  • Supports Wake-on-LAN for Remote Wake Up
  • Supports Windows 7 (64/32bit)/Vista (64/32bit)/XP, and Linux operating systems
  • Plug and Play
  • 3-year limited warranty
Hardware
Standards
  • IEEE 802.3 10Base-T Ethernet
  • IEEE 802.3u 100Base-TX Fast Ethernet
  • IEEE 802.3ab 1000Base-T Gigabit
  • ANSI/IEEE 802.3 Auto-Negotiation
Network Media
  • Ethernet: UTP Cat. 3, 4, 5, EIA/TIA-568 100-ohm STP
  • Fast Ethernet: UTP Cat. 5, EIA/TIA-568 100-ohm STP
  • Gigabit: UTP Cat. 5, 5E, 6 EIA/TIA-568 100-ohm STP
Protocol
  • CSMA/CD
Interface
  • 32-Bit 33/66Mhz PCI Rev 2.1/2.2/2.3
Power Consumption
  • 3.7watts
Diagnostic LED
  • Link, Activity
Supported OS
  • Windows 7/Vista/2003/XP/2000/NT4.0/ME/98
  • Novel NetWare Server 5.x / 6.x
  • Linux Kernel 2.4.x / 2.6.x
Data Rate
  • Ethernet: 10Mbps/20Mbps (Half/Full-Duplex)
  • Fast Ethernet: 100Mbps/200Mbps (Half/Full-Duplex)
  • Gigabit: 2000Mbps(Full Duplex)
Dimension
  • 120 x 59 x 15 mm (4.7 x 2.3 x 0.6 inch)
Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity
  • Operating: 10%~90% (Non-Condensing)
  • Storage: 5%~90% (Non-Condensing)
Certification
  • CE, FCC

PACKAGE CONTENTS
  • TEG-PCITXRL
  • Multi-Language Quick Installation Guide
  • Driver CD-ROM

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
