Product Families » USB / FireWire » USB 3.0 Devices » TU3-H2PIE
2-Port USB 3.0 PCI Express Adapter
TU3-H2PIE (Version v1.0R)
  • Super speed 5Gbps transfer rates
  • Two USB 3.0 ports
  • Backward compatible with USB 2.0
  • Compatible with Windows based tower computers with an available PCI Express port


 DISCONTINUED PRODUCT
The TU3-H2PIE (Version v1.0R) has been discontinued.  For a list of discontinued products, click here.

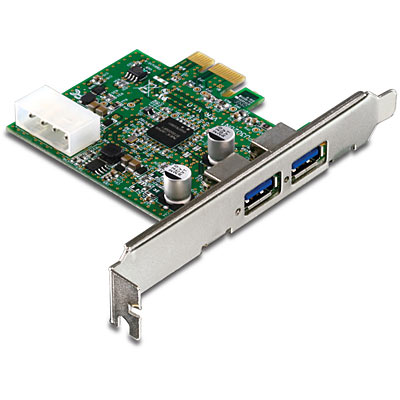

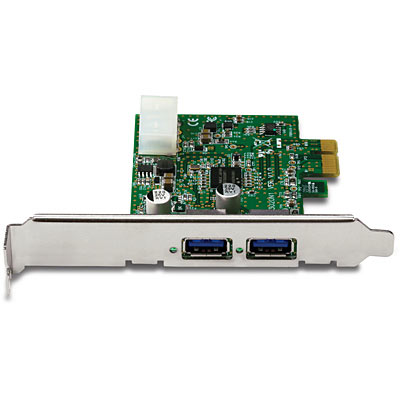

TU3-H2PIE
Click on image to enlarge

The 2-Port USB 3.0 PCI Express Adapter, model TU3-H2PIE, adds two super speed 5Gbps USB 3.0 ports to a tower computer.

Transfer content from USB 3.0 storage enclosures, flash drives, and camcorders at 5Gbps speeds—10 times faster than USB 2.0. Plug the adapter into any available PCI Express port on a Window’s based tower computer. A 4-pin power port connects to an internal power supply and provides full power to all connected USB 3.0 devices. Backward compatibility allows users to connect USB 2.0 devices to the USB 3.0 ports. Transfer large files in no time with two super speed 5Gbps USB 3.0 ports.


RoHS Compliant

  • 2 x USB 3.0 type A ports
  • Compatible with desktop computer PCI Express card slots
  • 4-pin power port connects to the tower computer’s power supply to fully power connected USB devices
  • Backwards compatible with USB 2.0 and USB 1.1 devices
  • PCI Express Base Specification 2.0
  • Electromechanical Specification Revision 2.0
  • Bus Power Management Interface Specification Revision 1.2
  • Supports all USB speeds: Low-speed (USB 1.0: 1.5Mbps), Full-speed (USB 1.1: 12Mbps, High-speed (USB 2.0: 480Mbps), and Super-speed (USB 3.0: 5Gbps)
  • Compatible with Windows 7, Vista, and XP
  • Plug and play support
  • 2-year limited warranty
Hardware
Interface USB 3.0
PCI Express Base Specification 2.0
Electromechanical Specification Revision 2.0
Bus Power Management Interface Specification Revision 1.2
Ports 2 x USB 3.0 Port
1 x 4-pin internal power port (cable not included)
Supported OS Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)
Data Rate
  • Super speed: 5Gbps (USB 3.0)
  • High speed: 480Mbps (USB 2.0)
  • Full speed: 12Mbps (USB 1.1)
  • Low speed: 1.5Mbps (USB 1.0)
Power Consumption 900mA (max) per port
Dimensions (L x W x D) 120 x 82 x 18.5 mm (4.7 x 3.2 x 0.8 in.)
Weight 45 g (1.6 oz.)
Temperature 5°C ~ 40°C (41°F ~ 104°F)
Humidity 90% (non-condensing)
Certifications CE, FCC

TU3-H2PIE

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
Register Your Product
Package Contents
  • TU3-H2PIE
  • Multi-Language Quick Installation Guide
  • CD-ROM (Drivers)
