Product Families » USB / FireWire » TU3-H4

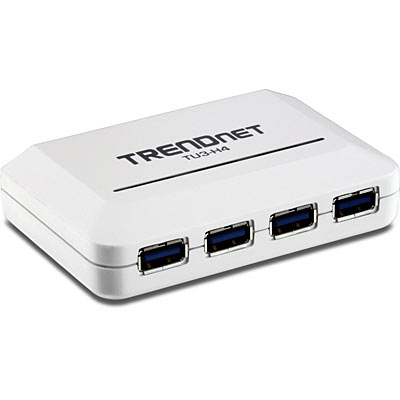

4-Port USB 3.0 Hub
TU3-H4 (Version v1.0R)
  • Super speed 5Gbps USB 3.0 transfer rates*
  • No software installation required
  • Quickly connect 4 USB 3.0 or 2.0 devices to your computer
  • Connect USB flash drives, storage enclosures, cameras and more


 DISCONTINUED PRODUCT
The TU3-H4 (Version v1.0R) has been discontinued.  It has been replaced by the TU3-H4 (Version v1.1R). For a list of discontinued products, click here.

TU3-H4
Click on image to enlarge

TRENDnet’s 4-Port USB 3.0 Hub provides four super speed USB 3.0 ports to connect flash drives, storage enclosures, cameras, and other USB 3.0 devices to your computer.

With no drivers required, simply plug into any free USB 3.0 port on your PC or Mac to experience the time savings of transferring data at 5Gbps, 10 times faster than USB 2.0 speeds.

Simply connect to an available USB port on your computer with the included USB 3.0 cable (backward compatible with USB 2.0). Upgrade to super speed USB 3.0 with TRENDnet’s TU3-H2EC or TU3-H2PIE. An included power adapter ensures proper operability of power hungry bus-powered connected devices.


RoHS Compliant

  • Transfer data at super speeds of 5Gbps with USB 3.0
  • 4 x USB 3.0 Type A super speed ports
  • USB Type A ports are backwards compatible with USB 2.0, 1.1, and 1.0 devices
  • 1 x USB 3.0 Type B super speed port (connection to computer)
  • 1 x power port
  • 1 x USB 3.0 Type A to Type B cable (1.8 m / 6 ft.)
  • Included power adapter fully powers connected devices
  • LED indicators convey port activity

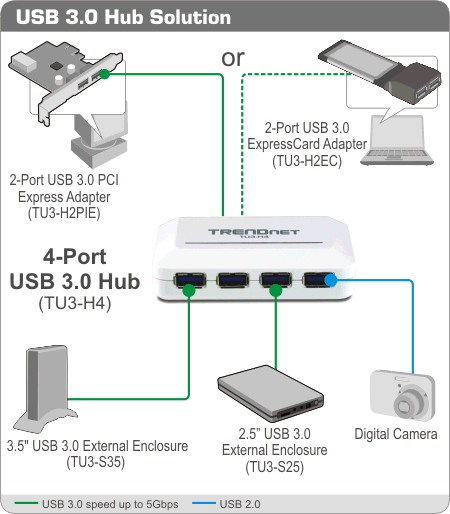

  • Use with TRENDnet’s TU3-H2EC or TU3-H2PIE
  • Compact size and shape
  • Easy Plug and Play installation
  • **Works with most operating systems.
  • 2-year limited warranty

*Data is transferred over USB 3.0 connections at up to 5Gbps. However actual data throughput may be significantly affected by choice of hard drive, computer system architecture, CPU loading, and other factors.

**USB 3.0 super speeds are based on compatible operating systems. USB 3.0 is backwards compatible with USB 2.0 and will work on all compatible operating systems.

Hardware
Standard USB 3.0 (Backwards compatible USB 2.0, 1.1, and 1.0)
Ports
  • Input: 1 x Type –B
  • Output: 4 x Type A
  • 1 x power port
Power Supply 5V DC / 4A
Power Consumption 0.3 W
Dimension 60 x 95 x 22 mm (2.3 x 3.7 x 0.8 in.)
Weight 68 g (2.4 oz)
Temperature
  • Operating: 0° ~ 40°C (32° ~ 104°F)
  • Storage: -10°C ~ 85°C (14° ~ 185° F)
Humidity Max. 90% non-condensing
Certifications CE, FCC

TU3-H4

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
View Knowledgebase
Register Your Product
Package Contents
  • TU3-H4
  • Multi-Language Quick Installation Guide
  • USB 3.0 Type A to Type B cable (1.8 m / 6 ft.)
  • Power adapter (5V DC, 4A)
