Product Families » Wireless Networking » Wireless Antennas » Outdoor Antennas » TEW-OA24D
24dBi Outdoor High Gain Directional Antenna
TEW-OA24D (Version 2.0R)
  • High performance 24 dBi reflector grid antenna provides long distance point-to-point networking
  • Compatible with wireless b, g and n standards
  • Ensure protection from lightning strikes with TRENDnetīs TEW-ASAK Outdoor Arrestor Kit
  • Includes mounting kit


 DISCONTINUED PRODUCT
The TEW-OA24D (Version 2.0R) has been discontinued.  For a list of discontinued products, click here.

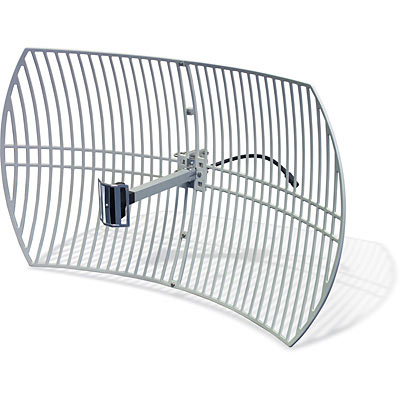

TEW-OA24D
Click on image to enlarge
TEW-OA24D 24dBi High Gain Outdoor Reflector Grid Antenna provides extended coverage range for your existing 802.11b or 802.11g Wireless Local Area Network (WLAN). TEW-OA24D comes with female N-type antenna connector; with optional conversion cable (male N-type to female Reverse SMA). TEW-OA24D is weatherproofed; you can mount it outdoor on the wall or on a pole. The antenna also has a tilted bracket for antenna alignment. Expand the power of your wireless product with TRENDnetīs TEW-OA24D.

*Note: Coverage and Speed performance might vary depending on the network environment.


RoHS Compliant

Hardware
Frequency range: 2.4GHz ~ 2.5GHz
Gain: 24 dBi
VSWR: 1.5 : 1 Max
Polarization: Linear, Vertical
HPBW Vertical: 14°
HPBW Horizontal: 10°
Front to Back Ratio: 30dB
Up/Down tilt: 60°
Power Handling: Max. 100 W (cw)
Impedance: 50 Ohms
Connector Lead Cable: RG-58/u, 30 cm (12 inches)
Connector Type: N-Type Female
Survival Wind Speed: 216 Km/hr (134 Miles/hr)
Temperature: -40 °C ~ 80 °C (-40 °F ~ 176 °F)
Humidity: 100% @ 25 °C (77 °F)
Lightning Protection: DC Ground
Antenna Type: Directional, Grid type
Mount Style: Pole end mounting. Pole diameter 50mm (2 inches) max.
Weight: 3.5 Kg (7.7 lb)
Dimensions (WxHxD):
(Final product)

90 x 60 x 50 mm (35.4 x 23.5 x 19.5 inches)

Warranty: 3 Years

NOTE:
For optimal results in extending your wireless range with wireless antenna installations, we recommended that you consult a professional installer for site survey, safety precautions, and proper installation.


TEW-OA24D

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
