ProView Advanced Pan/Tilt/Zoom Internet Camera
TV-IP400 (Version B1.xR)

Enjoy an expansive viewing field with remote pan and tilt controls
View streaming video and record from any Internet connection
Program motion detection recording, email alerts and more with free software

DISCONTINUED PRODUCT

The TV-IP400 (Version B1.xR) has been discontinued. It has been replaced by the TV-IP600 (Version v1.0R). For a list of discontinued products, click here.

Click on image to enlarge

The Pan/Tilt IP Camera is a full-featured surveillance system that provides high quality video over a wireless network connection. Built-in CPU and Web Server allow the camera to function as a standalone device, allowing users to access the camera anywhere in the world by using a Web browser. Users can also move the camera remotely in almost any direction, scanning sensitive locations for unauthorized intrusion. The IP Camera comes with a CMOS sensor to deliver clear and crisp images, and its powerful IPView software gives users enhanced security options to archive streaming video straight to a computer’s hard drive. IP View software can also monitor multiple cameras on a single screen, enable motion detection to trigger automatic recording, and send email alert notification.

ProView cameras are not compatible with TRENDnet’s SecurView camera application for SecurView cameras.

Built-in Pan & Tilt control with 4x digital zoom
Supports TCP/IP networking, SMTP e-mail, HTTP and other Internet related protocols
Compliant with Windows 98SE/ME/2000/XP
Motion detection & recording
Email notification
FTP upload
Multiple camera monitoring, image capturing and video recording (Windows 98SE/ME/2000/XP)
Supports both ActiveX and Java viewing mode
Web Configuration with password protection

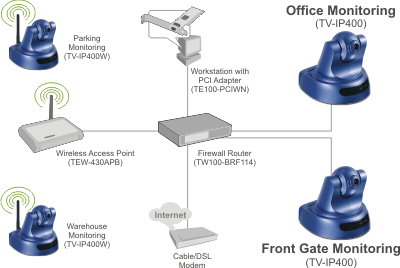

Broad range of applications for monitoring Homes, offices, banks, hospitals, parking lots and a variety of private and public monitoring
3-year limited warranty

ProView cameras are not compatible with TRENDnet’s SecurView camera application for SecurView cameras.

Image Sensor
Sensor type	1/4” Color CMOS Sensor
Resolution	640 x 480
Fixed Lens	Built-in f: 6.0mm F: 1.8
Min. Illumination	2.5lux@f1.4,3000K color
Communication
LAN	10/100Mbps Ethernet, Auto-Sensing
Protocol	HTTP, FTP, TCP/IP, UDP, ARP, ICMP, BOOTP, DHCP, PPPoE, DDNS, UPnP
Video/Image
Display Standard	VGA/QVGA/QQVGA
Compression / Selection	MJPEG / Yes
Resolution / Frame Rate Setting	160 x 120, 320 x 240, 640 x 480 / 1, 5, 7, 15, 20, auto
Left/Right Reversal	Yes
Up/Down Reversal	Yes
Gain/Exposure/White Balanced Control	Automatic
Digital Zoom	4x
Compression Rate	5 Levels
Light Frequency	50Hz / 60Hz
Software
Browser	Internet Explorer (5.0 or above) or Netscape Navigator (6.0 or above)
Application	IPView Pro Software
OS Support	Windows 98SE, ME, 2000,XP, Vista


Hardware
System
CPU	RDC R2880
RAM/Flash	8Mbytes/2Mbytes
OS	RTOS
Pan Tilt
Pan	-156° ~ +156°
Tilt	-45° ~+70°
Control	Up, Down, Right, Left, Center
Requirements
Memory Size	128MB (256MB Recommended)
Pentium III, 450 MHz or above VGA card resolution: 800 x 600 or above
Physical/Environmental
Dimension	117x115x105 mm (4.6”x4.5”x4”)
Weight	0.3kg (0.75lb)
Consumption	8 watt ( 1600mA x 5V), max
Power	5V DC, 2.5A External Adapter
Humidity	5% ~ 95% Non-Condensing
Temperature	Operating: 5°C ~ 40°C (41°F ~ 104°F) Storage: -25°C ~ 50°C (-13°F ~ 122°F)
LED	Power: Blue Link/Active: Orange
Emissions	FCC. CE

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

TV-IP400
Multi-Language QIG
CD-ROM (Utility& User’s Guide)
Power Adapter (5V DC, 2.5A)
RJ-45 Cable (1.5m)
Mounting Frame
