Product Families » Internet Cameras » Pan/Tilt/Zoom » Wireless » TV-IP400W
ProView Wireless Advanced Pan/Tilt/Zoom Internet Camera
TV-IP400W (Version B1.xR)
  • No need for an Ethernet connection, video is transmitted over a secure encrypted wireless signal
  • Enjoy an expansive viewing field with remote pan and tilt controls
  • View streaming video and record from any Internet connection
  • Program motion detection recording, email alerts and more with free software


 DISCONTINUED PRODUCT
The TV-IP400W (Version B1.xR) has been discontinued.  It has been replaced by the TV-IP600W (Version v1.0R). For a list of discontinued products, click here.

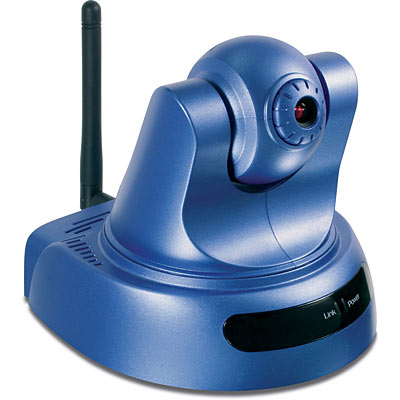

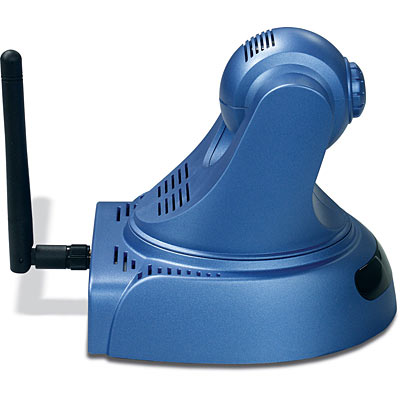

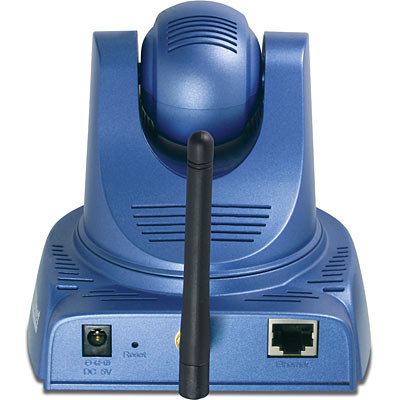

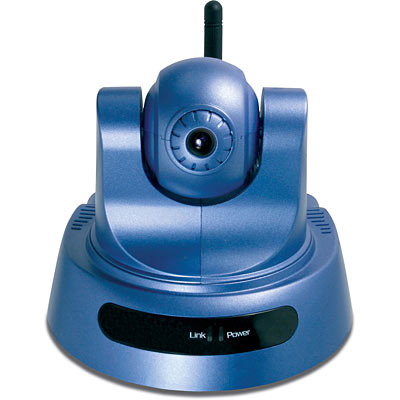

TV-IP400W
Click on image to enlarge

The Pan/Tilt IP Camera is a full-featured surveillance system that provides high quality video over a wireless network connection. Built-in CPU and Web Server allow the camera to function as a standalone device, allowing users to access the camera anywhere in the world by using a Web browser. Users can also move the camera remotely in almost any direction, scanning sensitive locations for unauthorized intrusion. The IP Camera comes with a CMOS sensor to deliver clear and crisp images, and its powerful IPView software gives users enhanced security options to archive streaming video straight to a computerīs hard drive. IP View software can also monitor multiple cameras on a single screen, enable motion detection to trigger automatic recording, and send email alert notification.


RoHS Compliant

  • Wi-Fi Compliant with IEEE 802.11b/g Devices on 2.4 GHz ISM Frequency Band
  • Wireless Supports Infrastructure and Ad-Hoc Modes
  • Wireless Supports WEP 64/128-bit Encryption (ASCII & HEX)
  • Built-in Pan & Tilt Control for More Flexible Monitoring
  • Supports 4x Digital Zoom for Close Up Images
  • Supports Internet Explorer and Java applet for IE and Netscape Navigator
  • Allows for Remote Access from Web Browser for Live Image Viewing
  • Supports TCP/IP networking, SMTP e-mail, HTTP and other Internet related protocols
  • Supports in a mixed Operating System Environment such as Windows and Macintosh
  • Supports Web Configuration with Password Protection
  • Powerful Windows IPView Application Software for multiple cameras monitoring, image capturing, and video recording (Windows 98/ME/2000/XP)
  • Broad Range of Applications for Monitoring Homes, Offices, Banks, Hospitals, and a Variety of Private and Public Monitoring
  • 3-year limited warranty
Camera
Image Sensor
Sensor type 1/4” Color CMOS Sensor
Resolution 640 x 480
Fixed Lens Built-in f: 6.0mm F: 1.8
Min. Illumination 2.5lux@f1.4,3000K color
Communications
LAN

10/100Mbps Ethernet,
Auto-Sensing

Protocol HTTP, FTP, TCP/IP, UDP, ARP, ICMP, BOOTP, DHCP, PPPoE, DDNS, UPnP
Video / Image
Display Standard VGA/QVGA/QQVGA
Compression /
Selection
MJPEG /
Yes
Resolution /
Frame Rate Setting
160 x 120, 320 x 240, 640 x 480 /
1, 5, 7, 15, 20, auto
Left/Right Reversal Yes
Up/Down Reversal Yes
Gain/Exposure/White Balanced Control Automatic
Digital Zoom 4x
Compression Rate 5 Levels
Light Frequency 50Hz / 60Hz
Wireless
Standard IEEE 802.11b/g
Data Rate 11g: 54, 48, 36, 24, 12, 9 & 6Mbps
11b: 11, 5.5, 2 & 1Mbps
Module Technique DSSS
Frequency 2.4 ~ 2.4835Ghz (ISMB)
Antenna Detachable 2dBi Diversity Antenna
(Reverse SMA Connector)
Encryption Disable/64/128-bit WEP, WPA-PSK
Hardware
System
CPU RDC R2880
RAM/Flash 8Mbytes/2Mbytes
OS RTOS
Pan & Tilt
Pan -156° ~ +156°
Tilt -45° ~+70°
Control Up, Down, Right, Left, Center
Requirements
Memory Size 128M (256 Recommended)
Pentium III, 450 MHz or above
VGA card resolution: 800 x 600 or above
Physical/Environmental
Dimension 117x115x105 mm (4.6”x4.5”x4”)
Weight 0.3kg (0.75lb)
Consumption 8 watt ( 1600mA x 5V), max
Power 5V DC, 2.5A External Adapter
Humidity 5% ~ 95% Non-Condensing
Temperature Operating: 5°C ~ 40°C (41°F ~ 104°F)
Storage: -25°C ~ 50°C (-13°F ~ 122°F)
LED Power: Green
Link/Active: Orange
Emissions FCC. CE
Software
Browser Internet Explorer (5.0 or above) or Netscape Navigator (6.0 or above)
Application IPView Software
OS Support Windows 98SE, ME, NT4, 2000,XP, Vista

TV-IP400W

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
View Emulator
Register Your Product
Package Contents
  • TV-IP400W
  • Multi-Language QIG
  • CD-ROM (Utility& Userīs Guide)
  • Power Adapter (5V DC, 2.5A)
  • RJ-45 Cable (1.5m)
  • Mounting Frame
