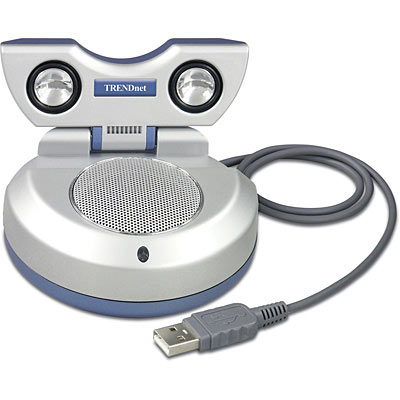

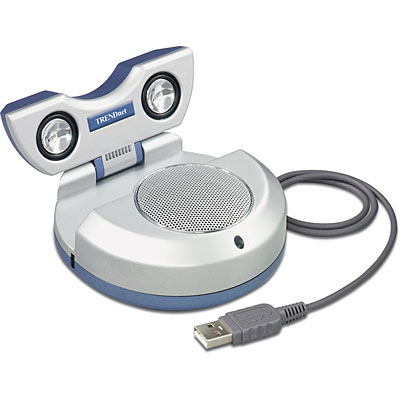

USB 2.0 Portable Digital Speaker w/ Sub-Woofer
TA-103S (Version 1)

Experience digital audio playback without any additional software or power adapters
Supports Plug & Play and Easy Installation
High digital audio fidelity with no static and built-in subwoofer

DISCONTINUED PRODUCT

The TA-103S (Version 1) has been discontinued. For a list of discontinued products, click here.

Click on image to enlarge

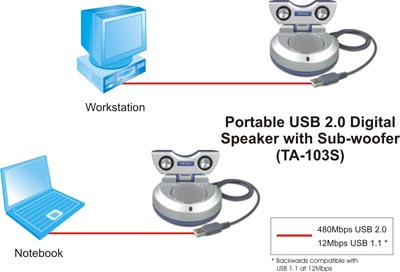

TRENDnet’s TA-103S provides entertainment and portability all in one package. With a pair of 1”speakers and a 2”sub-woofer, high digital audio never sounded better. It's also light weight, compatible with most operating systems, compliant with USB 1.1 and 2.0 and requires no power adapter.

Compliant with USB 2.0 & USB 1.1 Specifications
Provides 1 x 2”Sub-Woofer Speaker & 2 x 1”Satellite Speakers
High Performance 48KHz Sampling Rate for Audio Playback
Embedded High Performance 16-Bit Audio DAC
High Digital Audio Fidelity and Completely “Hiss Free”
Adopted Latest Xear 3D Technology, Support EAX, A3D Acoustics Effect
Provides 5.1 Virtual Effect with Software Support
Powerful 10-band Pre-Set Equalizer (EQ) Sound Effect with Software Support
Supports 27 Environment Effects and 3 Environment Sized with Software Support
Class D Power Amplifier Supports High Performance Audio Output
Compatible with Windows 98SE/ME/2000/XP, Max OS 9/X Operating Systems (no driver required)
Supports Plug & Play and Easy Installation
2-year limited warranty


Hardware
Standards:	USB 1.1 USB 2.0
Connector:	Type A
OS Compliant:	Windows 98SE/ME/2000/XP Mac OS 9/X
USB Card:	Approx. 53cm (20.8 inches) Non-Detachable
Power:	USB Bus Power (5V/500mA)
Dimensions (L x W x D)	110 x 110 x 42 mm ( 4.3 x 4.3 x 1.65 inches)
Weight:	280g. ( 0.6 lb)
Temperature:	Operating: 5 ° ~ 40 ° C (41 ° ~ 104 ° F) Storage: -20 ° ~ 60 ° C (-4 ° ~ 140 ° F)
Humidity:	0 ~ 80 % (Non-Condensing )
Certifications:	FCC, CE
Amplifier
Output Power (max.)	1.2W + 1.2W (10% T.H.D. 1KHz 4Ω)
Speaker
Sub-Woofer:	52mm(2 inches) Magnetically Shielded
Satellite:	28mm(1 inch) Magnetically Shielded
Impedance:	4Ω

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Knowledgebase

Package Contents

TA-103S
Quick Installation Guide
Utility CD-ROM
