Cable/DSL 802.11g 54Mbps Wireless Router
TEW-431BRP (Version V1.0R)

DISCONTINUED PRODUCT

The TEW-431BRP (Version V1.0R) has been discontinued. It has been replaced by the TEW-432BRP (Version D1.0R/D1.1R). For a list of discontinued products, click here.

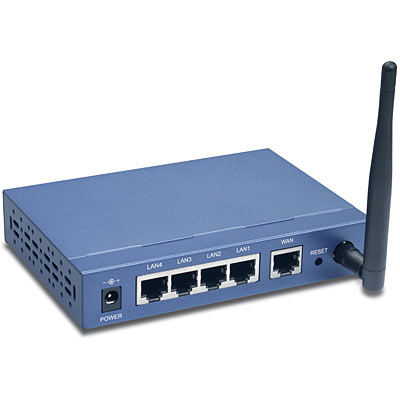

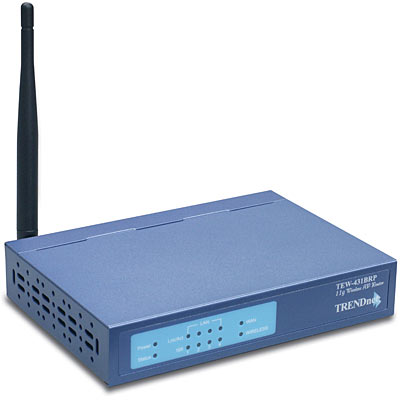

Click on image to enlarge

TRENDnet's TEW-431BRP 54Mbps Wireless Cable/DSL Router allows you to work where you want to by delivering high-performance wireless network-ing to your home or office. The TEW-431BRP includes a 54Mbps wireless access point, 4 x 10/100Mbps Switch and an Internet router all in one. The router complies with the IEEE 802.11g standard for assured compatibility with both 802.11g and 802.11b devices. Advanced wireless security supports up to 128-bit WEP encryption. Restrict Internet access to groups or individuals based on specific services, URL or Time/Date. Cut the wires and roam free knowing your information is secure with TRENDnet’s 802.11g wireless products.

IEEE 802.11g, 802.11b Wireless Standards Compliant
Built-in 4 Port 10/100Mbps Auto-Sensing and Auto-MDIX Switch
Supports Cable Modem/xDSL Modem (Dynamic IP, Static IP, PPPoE, PPTP)
2dBi Detachable Antenna with Reverse SMA Connector
High Speed Wireless Connection up to 54Mbps with automatic fallback
64/128-bit Wired Equivalent Privacy (WEP) with HEX or ASCII key
Provides WPA-PSK (Pre-Shared Key)
Supports up to 100 (IPSec, PPTP, L2TP) VPN Pass-Through sessions simultaneously
Web Access Restriction using URL Keywords and Services Type
Supports DMZ and Virtual Servers (40 Entries, 7 Pre-defined, 33 User-defined)
Firewall features Network Address Translation (NAT), and Stateful Packet Inspection (SPI) protects against Dos attacks
Supports UPnP (Universal Plug & Play)
Real-Time email alert and logs when attack/unauthorized Internet activity occurs
Supports Static Routing and Dynamic DNS Service
DHCP Server feature, allocates up to 253 Users
Easy Configuration and Remote Management with Web Browser (HTTP)
ALGs Supports Internet applications such as Email, FTP, Gaming, ICQ, NetMeeting, PING, Telnet, and more
Flash memory for firmware upgrade
Range of 35~100 meters indoor, 100~300 meters outdoor (depending on the environment)
3-Year Warranty

Hardware
Standards	Wired: IEEE 802.3 (10Base-T), and IEEE 802.3u (100Base-TX) Wireless: IEEE 802.11b (11Mbps) and IEEE 802.11g (54Mbps)
Protocols	DHCP (Client and Server), TCP/IP, IPX, NetBEUI, NAT, PPPoE, PPTP
WAN/Local Port	UTP/STP RJ-45, 10/100Mbps, Half/Full Duplex, Auto-MDIX
LED Indicators	Unit: Power, Status, WAN, WLAN LAN Port: Link/Act, 100
Power Adapter	12V DC, 800mA External Power Adapter
Dimensions (LxWxH)	141 x 100 x 27 mm (5.5 x 3.9 x 1.06 inches) (without antennas)
Weight	370 g. (13 oz.)
Temperature	Operating: 0°~ 40°C (32°F~ 104°F) Storage: -10°~ 70°C (14°F~ 158°F)
Humidity	Max. 95% (non-condensing)
Certification	FCC, CE
Wireless
Module Technique	802.11b: CCK, DQPSK, DBPSK 802.11g: OFDM
Frequency Range	2.4 ~ 2.497 GHz
Data Rate (auto fallback)	802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
Channels	1~14 Channels (Universal Support with Latest Firmware)
Security	64/128-bit (WEP) & WPA-PSK
Antenna	1 x 2dBi External Detachable Dipole Antenna with Female Reverse SMA connector
Output Power	15 dBm ± 1dBm
Receiving Sensitivity	11Mbps 10 – 5 BER @ -80 dBm (typical) 54Mbps 10 – 5 BER @ -65 dBm (typical)

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
