108Mbps 802.11g MIMO Wireless PCI Adapter
TEW-603PI

Stream videos, download files and play games with no lag
2x the speed and 8x the coverage of wireless g*
Advanced wireless encryption provides robust security

DISCONTINUED PRODUCT

The TEW-603PI has been discontinued. It has been replaced by the TEW-623PI (Version 1.0R). For a list of discontinued products, click here.

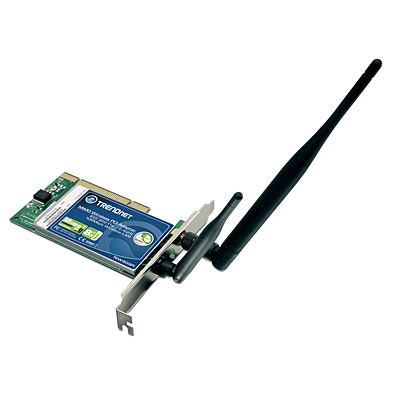

Click on image to enlarge

Designed to give you wider coverage, the 108Mbps 802.11g MIMO Wireless PCI Adapter seamlessly connects to your wireless network without performance degradation. It also supports universal wireless connectivity with 802.11b or 802.11g networks, reaches speeds of up to 108Mbps, and secures wireless transmissions with either WPA or WEP encryption.

*Note: Coverage and Speed performance might vary depending on the network environment.

Wi-Fi Compliant with IEEE 802.11g and IEEE 802.11b Standards
Supports Ad-Hoc (Peer-to-Peer) Mode or Infrastructure (AP-Client) Mode
Supports Super G Technology with Data Rate up to 108Mbps (8X Faster)

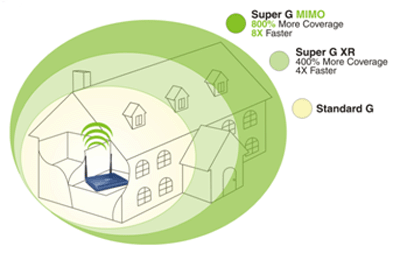

Enhance Wireless Coverage with MIMO Technology of up to 800% More Coverage
Dynamic Data Rate Scaling at 54, 48, 36, 24, 18, 12, 9 and 6Mbps for 802.11g
Dynamic Data Rate Scaling at 11, 5.5, 2 and 1Mbps for 802.11b
Maximum Reliability, Throughput and Connectivity with Automatic Data Rate Switching (This is the data rate)
Compatible with Windows 2000/XP (SP1/SP2)/2003 Server
Supports 64/128/152-bit WEP, WPA(AES/TKIP) and WPA-PSK encryptions
Low Interference and High Susceptibility Guarantee Reliable Performance
Simple User Setup & Diagnostics Utilities
3-year limited warranty


Hardware
Interface	32-Bit PCI Rev. 2.1/2.2
Standards	IEEE 802.11b and IEEE 802.11g
LED	Indicator Power, Link
Power Consumption	Receive Mode: 11g/b 586~627mA Transmit Mode: 11g 569~620mA (16dBm) , 11b 605~660mA (18dBm)
Supported OS	Windows 2000/XP (SP1/SP2), 2003 Server
Dimensions (LxWxH)	122 x 64 x 6mm (4.8 x 2.5 x 0.2 inches)
Weight	50g (1.8oz)
Temperature	Operating: 0° ~ 50° C (32° ~ 122° F) Storage: -25° ~ 70° C (-13° ~ 158° F)
Humidity	10% ~ 90%max (Non-condensing)
Safety & Emissions	FCC, CE
Wireless
Module Technique	802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps) 802.11g: OFDM with BPSK, QPSK and 16/64-QAM sub-Carrier modulations
Antenna	1 x 5dBi Detachable Dipole Antenna (Reverse SMA Connector) 1 x 2dbi Fixed Dipole Antenna
Frequency	2.412 ~ 2.484 GHz
Media Access Protocol	CSMA/CA
Data Rate (auto fallback)	802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps Super G : 108Mbps
Output Power	802.11b: 18dBm (typical) 802.11g: 16dBm (typical)
Receiving Sensitivity	802.11b: 11Mbps 10 ^{– 5} BER @ -84 dBm (typical) 802.11g: 54Mbps 10 ^{– 5} BER @ -74 dBm (typical)
Encryption	64/128/152-bit WEP (Hex & ASCII), WPA, WPA-PSK
Channels	1~11 (US), 1~13 (EU)

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

TEW-603PI
Utility & Driver CD-ROM
Multi-Language Quick Installation Guide
