10/100Base-TX to 100Base-FX Fiber Multi-Mode SC-Type Fiber Converter
TFC-210MSC (Version 1.0R)

SC-type multi-mode fiber port connects over distances of up to 2km
10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
Functions as a stand alone converter or with the TFC-1000 fiber chassis

DISCONTINUED PRODUCT

The TFC-210MSC (Version 1.0R) has been discontinued. It has been replaced by the TFC-110MSC (Version v3.2R). For a list of discontinued products, click here.

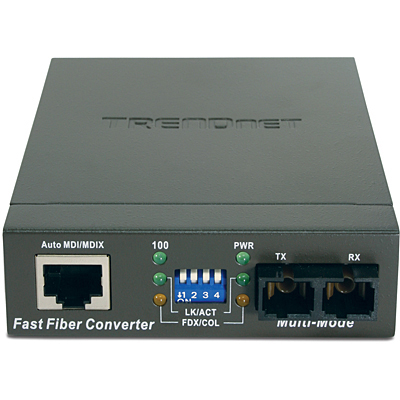

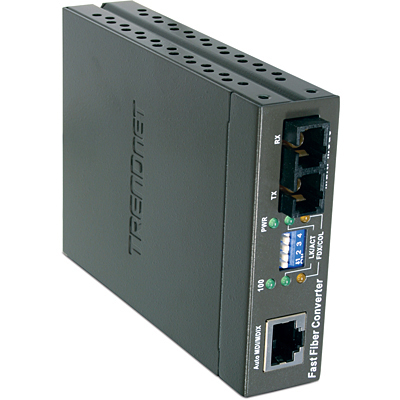

Click on image to enlarge

The TFC-210MSC Fiber Converter works with the TFC-1000 chassis system or as a standalone unit. This converter is a Multi Mode SC-Type fiber converter spanning distances up to 2km (1.2 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX (SC-Type) port.

Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX, 100Base-FX standards
One 10/100Base-TX Auto-Negotiation, Auto-MDIX RJ-45 port
One 100Base-FX multi-mode SC-type Fiber port
Supports LLCF (Link Loss Carry Forward)
Provides Dip switches to set: UTP (Auto Negotiation/Full Duplex), Fiber (Half Duplex/Full Duplex) , LLCF (Enable/Disable), Mode (Pure Mode/ Switch Mode)
802.3x flow control for 10/100Base-TX port
Diagnostic LEDs
Plug& Play, Hot Swappable
Optional 19” Fiber Converter Chassis (TFC-1000) holds up to 10 Media Converters
5-year limited warranty

	Media	Wavelength	Power Output (dBm)	Sensitivity (dB)	Power Budget (dBm)	Distance
50/125µm	MMF	1310nm (1270nm~1380nm)	-23.5	-31	7.5	2km
62.5/125µm	MMF	1310nm (1270nm~1380nm)	-20	-31	11	2km

Hardware

Standard

IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX, 100Base-FX

Network Media

10Base-T: UTP/STP Cat. 3, 4, 5, EIA/TIA-568 100-ohm
100Base-TX: UTP/STP Cat. 5, EIA/TIA-568 100-ohm
100Base-FX: 50/125μm or 62.5/125μm Multi-Mode Duplex SC-Type Fiber Cable, up to 2km

Protocol

CSMA/CD

Frame Packet Size

64 to 1600 Bytes

Ports

1 x 10/100Base-TX RJ-45 Port
1 x 100Base-FX Multi-Mode SC-Type Fiber Port

Dip Switch

Dip Switch 1:	ON: TX Port Fully Duplex OFF: TX Port Auto- Negotiation
Dip Switch 2:	ON: FX Port Half Duplex OFF: FX Port Full Duplex
Dip Switch 3:	ON: LLCF Enable OFF: LLCF Disable
Dip Switch 4:	ON: Pure Converter Mode OFF: Switch Converter Mode
