VoIP USB Speakerphone (for Skype™)
TVP-SP2 (Version 1.0R)

Reduce conference call expenses
Make crystal clear conference calls with echo cancellation technology
View, manage and call Skype™ contacts directly from this conference phone

DISCONTINUED PRODUCT

The TVP-SP2 (Version 1.0R) has been discontinued. For a list of discontinued products, click here.

Click on image to enlarge

The USB Speakerphone allows you to use the Internet to make hands-free conference calls. It is compatible with the leading Skype™, and instant messaging applications such as MSNT & Yahoo Messenger. The USB Speakerphone utilizes advanced VoIP technology to deliver a cost-effective alternative to standard telephony solutions.

Hands-free with speaker-out support, dedicated for in office conference call
Supports Mute feature
Built-in high performance microphone and mono speaker
Echo-cancellation function provides superior sound quality
Compliant with VoIP solution or instant message software such as Skype™, Yahoo Messenger™& MSN Messenger™
LCD display for caller ID, contact list, calling list with backlight support
Supports Multi-Language display and Hot-Key functions for easy control
Compliant with Windows 98SE/ME/2000/XP
Plug& Play
2-year limited warranty

Hardware
Standard	USB 1.1

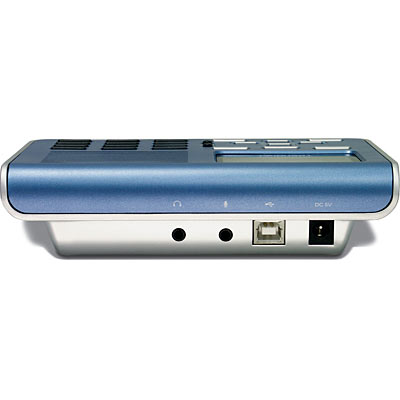

Interface	1 x USB Type B (Female) port 1 x 3.5mm Stereo Jack (headset) 1 x 3.5mm Microphone Jack (microphone) 1 x 5V DC in (for optional power adapter)
Solution	8 Bits DSP Voice processing Echo-cancellation: up to 45dB Audio output frequency range: 44.1KHz Audio input sampling rate: 8KHz, 8 bits
Built-in Speaker	41 x 71mm Response Frequency: 100Hz~20KHz Output Impedance: 1W/8Ohm
Built-in Microphone	Sensitivity: -40 ±2dB Directivity: Omni Directional Response Frequency: 50Hz ~ 16KHz
Response Frequency	100Hz ~ 15K Hz
Signal-To-Noise Ratio	More than 60dB
Receiver Output Impedance	2.2KOhm
Operating Voltage	DC 5V (Bus-Powered)
LCD	Resolution: 128 x 64 pixels Size: 32 x 19.7mm Backlight: enabled Multiple Language Display: enabled
Operating Temperature	0° ~ 40° C (32° ~ 104° F)
Humidity	<95% (Non-Condensing)
Emissions	FCC, CE
System Requirements
- Computer with one available USB 1.1 port or higher - To use Skye with the USB speaker unit, your computer must meet the following minimum requirement. PC running Windows 2000 or XP 400MHz Processor 128MB RAM 15MB free disk space Working Internet connection With provided utility installed.

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

TVP-SP2
Utility CD-ROM
Multi-Language Quick Installation Guide
USB Cable
