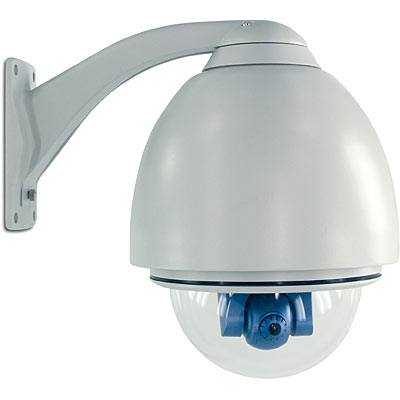

Outdoor Dome Camera Enclosure with Heater and Fan
EL-HS800 (Version 1)

Performs well in all weather conditions (IP66 certified)
Built in heater and fan
360 degree viewing dome

DISCONTINUED PRODUCT

The EL-HS800 (Version 1) has been discontinued. It has been replaced by the TV-H400 (Version V1.0R). For a list of discontinued products, click here.

Click on image to enlarge

The TRENDnet EL-HS800 provides the perfect solution to transform regular PTZ (Pan/Tilt/Zoom) cameras into outdoor surveillance systems. Made from steel and designed for high level of protection (IP66), the EL-HS800 completely shields cameras from dust, water and snow. It also comes complete with an adjustable fully-cable-managed mounting bracket, protecting camera wiring from the weather.

Weather resistant IP66 protection certified
Protects PTZ (Pan/Tilt/Zoom) camera from dust, rain, and snow.
Build-in power supply, blower and heater to keep the front window clear of moisture and frost.
Holds most indoor PTZ camera non-weatherproof cameras to outdoor use.
Automatic Thermostatic control: heater “On” under 5°C (41°F) “OFF” over 10°C(50°F), Fan “On” over 45°C(113°F)”OFF under 30°C(86°F)
Heavy duty Gooseneck and Straight tube pendent brackets for easy wall or ceiling mounting
Cables are routed inside the mounting bracket
2-year limited warranty


Hardware
Range of Application	Indoor/ Outdoor Installations
Protection Level	IP66 Weatherproof
Blower Fan and Heater	Heater ON: under 5°C (41°F) “OFF” over 10°C(50°F) Blower Fan ON: over 45°C(113°F)”OFF under 30°C(86°F)
Material	Steel (IP66 Certified)
Power Supply (for fan/heater only)	110/220AC 24V Input, 12VDC Output (EL-HS800(A) 110V / EL-HS800 (EU) 220V)
Housing Dimensions	8.9” (L) x 8.6”
Inside Dimension	125 x 170 x 130mm (4.9 x 6.7 x 5.1in.)
Weight	Housing: 4.9kg(10.8lb) Bracket: 3.0kg (6.6lb)
Temperature	-25°C ~ 50°C (-13°F ~122°F)
Humidity	0%~90%, Non-Condensing
Supported Models (12V)	TV-IP400 / TV-IP400W (5V) (use camera´s power adapter for camera power)

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

EL-HS800
Mounting Bracket
