TRENDnet | Products | Wired Print Servers

Product Families » Print Servers » Wired Print Servers » TE100-MP1U

1-Port Multi-Function Print Server
TE100-MP1U (Version 1.0R)

Turns a standalone multi-function printer/fax/scanner into a shared network resource
Supports additional USB storage device
Provides high speed USB 2.0 printing
Manages print server through web browser or utility

DISCONTINUED PRODUCT

The TE100-MP1U (Version 1.0R) has been discontinued. It has been replaced by the TE100-MP1UN (Version V1.0R). For a list of discontinued products, click here.

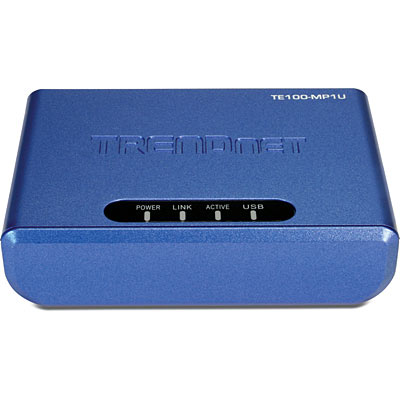

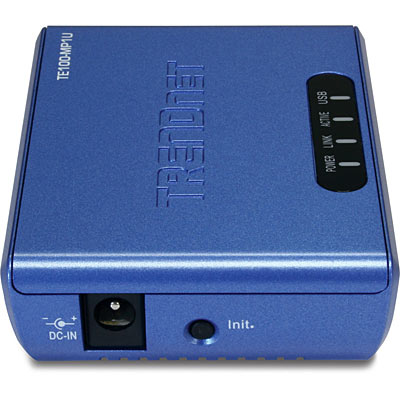

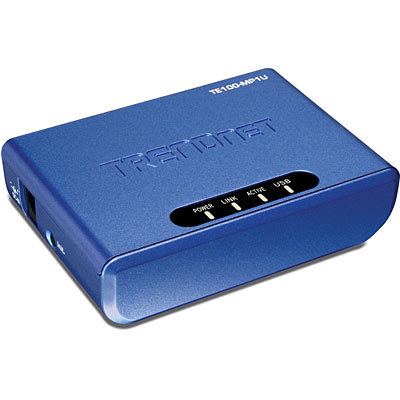

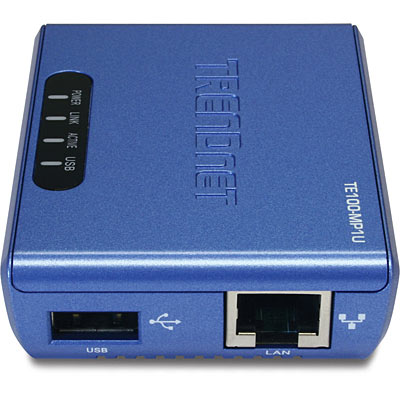

Click on image to enlarge

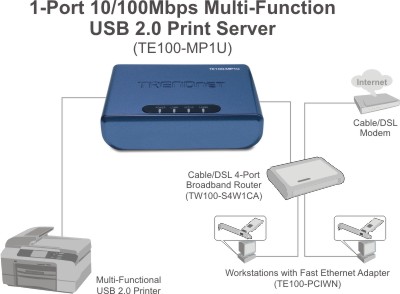

The 1-Port 10/100Mbps Multi-Function USB 2.0 Print Server (TE100-MP1U) is designed to transform virtually any stand-alone multi-function USB printer into a shared resource on your network. An intuitive utility application and a user-friendly configuration interface provide a seamless user experience. LED indicators, bidirectional support and e-mail notifications allow for easy management. With support for most operating systems, simply connect a multi-function device to this product for instant multimedia and file sharing. This product offers a cost effective solution to the challenge of sharing multi-function printer, fax, scanner and storage devices.

Compliant with USB 2.0 high speed printing
Supports most USB printers and all-in-one multi-function printers *
One USB 2.0 port and one RJ-45 10/100Mbps auto-negotiation fast Ethernet port
TCP/IP protocol supports DHCP, SNMP, UPnP, FTP
Provides two types of storage access modes: netusb mode and server mode
Supports USB storage devices such as hard drives, flash drives and memory card readers
Supports auto-connect for printing and scanning
Email notification for adding/removing USB devices or system error messages
Compliant with Windows 2000/XP/2003 Server/Vista (32-Bit) operating systems
Windows based utility program and Web based configuration
Built-in flash memory for easy firmware upgrade
5-year limited warranty

* For a list of compatible printer, please click here

Hardware
Standards	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX
Printer Interface	USB 2.0, 1.1 compliant USB type A port
LAN Port	10/100Mbps auto-negotiation UTP/STP Ethernet port
CPU/ SDRAM / Flash ROM	RDC R3210-G 150MHz / 8MB /2MB
USB Storage	NetUSB Mode: Single-user access, FAT12/16/32(read/write) and NTFS (read/write) Server Mode (FTP/SMB server): Multi-user access. FAT12/16/32(read/write) and NTFS (read)
Diagnostic LEDs	Power, link, status, USB1
Transport Protocol	TCP/IP
TCP/IP Protocol Supported	DHCP, SNMP, UPnP, FTP
Supported OS	Windows 2000/XP/2003 Server/Vista (32-Bit)
Management	Windows based utility or Web based configuration
Power	12V DC 1A external switching power adapter
Power Consumption	Max 2.5W (without a peripheral)
Dimensions	80 x 60 x 25mm (3.15 x 2.36 x0.98 in.)
Weight	55g (1.94oz.)
Temperature	Operating: 0°~50°C (32°~122°F) Storage: -25°~55°C (-13°~131°F)
Humidity	10%~90% (non-condensing)
Certification	CE, FCC

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Knowledgebase

View Emulator

Package Contents

TE100-MP1U
Multi-Language QIG
CD-ROM (User´s Guide)
Switching power adapter (12V DC, 1A)
