Product Families » Wireless Networking » Wireless MIMO » TEW-604UB
108Mbps 802.11g MIMO Wireless USB 2.0 Adapter
TEW-604UB (Version 1.0R)


 DISCONTINUED PRODUCT
The TEW-604UB (Version 1.0R) has been discontinued.  It has been replaced by the TEW-624UB (Version 1.0R). For a list of discontinued products, click here.

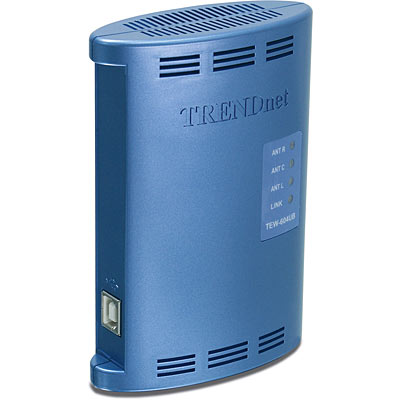

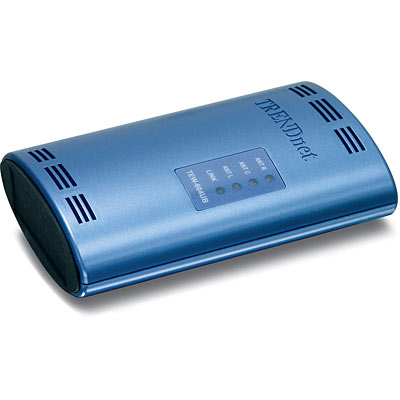

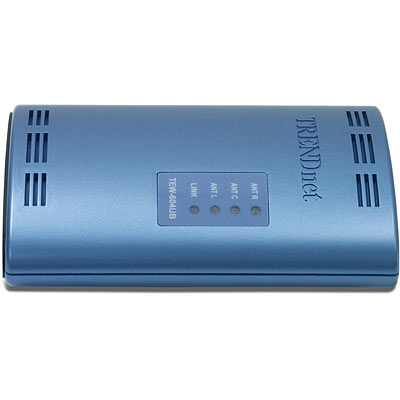

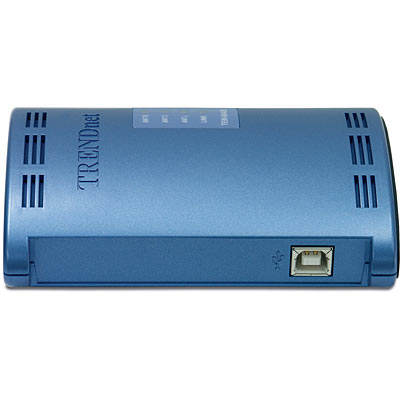

TEW-604UB
Click on image to enlarge

TEW-604UB 802.11g Wireless USB 2.0 Adapter brings together the convenience of USB 2.0 and the high speed of 802.11g, allowing you to easily connect to 802.11g networks at speeds of up to 108Mbps. The USB 2.0 interface facilitates a hassle-free Plug-and-Play installation, and 128-bit WEP Encryption provides robust network security. The TEW-604UB is a feature-rich yet convenient way to go wireless.


RoHS Compliant

  • Wi-Fi Compliant with IEEE 802.11g and 802.11b Wireless Standards
  • Uses 2.4 GHz Frequency Band, which Complies with Worldwide
  • Smart Antenna Design and support up to 108Mbps in Super G mode
  • Supports Ad-Hoc (Peer-to-Peer) Mode or Infrastructure Mode
  • Dynamic Data Rate Scaling at 54, 48, 36, 24, 18, 12, 9 and 6Mbps for 802.11g
  • Dynamic Data Rate Scaling at 11, 5.5, 2 and 1Mbps for 802.11b
  • Maximum Reliability, Throughput and Connectivity with Automatic Data Rate Switching
  • Compliant with Windows 98SE/ME/2000/XP/2003
  • Supports WEP and WPA/WPA2 Encryptions
  • Supports Wireless Multimedia Enhancements Quality of Service (QoS)
  • Low Interference and High Susceptibility Guarantee Reliable Performance
  • Low Power Consumption and Easy Configurations
  • Range of 35~100 meters indoor, 100~300 meters outdoor (depends on the environment)
  • Simple User Setup & Diagnostics Utilities
  • 3-year limited warranty
Hardware
Interface USB 2.0, 1.1, 1.0 Compliant
Standards IEEE 802.11b and IEEE 802.11g
LED Indicator Link
Power Consumption 450mA @5V DC
Supported OS Windows 98SE/ME/2000/XP/2003
Dimensions (LxWxH) 115 x 80 x 33 mm (4.5 x 3.1 x 1.3 inches)
Weight 92 g (3.25 oz.)
Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -20° ~ 70° C (4° ~ 158° F)
Humidity 10% ~ 95% max (Non-condensing)
Safety Emissions FCC, CE
Wireless
Module Technique
  • 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
  • 802.11g: OFDM with BRPSK, QPSK and 16/64-QAM sub-carrier modulations
Frequency 2.412 to 2.484 GHz (Industrial Scientific Medical Band)
Antenna 3 x 2dBi
Media Access Protocol CSMA/CA
Data Rate (auto fallback)
  • 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
  • 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
    **6Mbps for 802.11g using USB 1.1 or 1.0 Connection
  • Super G : 108Mbps
Output Power
  • 20dBm (typical) @ 802.11b
  • 14dBm (typical) @ 802.11g
Receiving Sensitivity
  • 54Mbps 10% PER @ -73 dBm (typical)
  • 11Mbps 8% PER @ -88 dBm (typical)
Security 64/128/152-bit WEP (Hex), WPA/WPA2(AES/TKIP) WPA-PSK/WPA2-PSK, 802.1x
Channels 1~11 (US), 1~13 (EU)

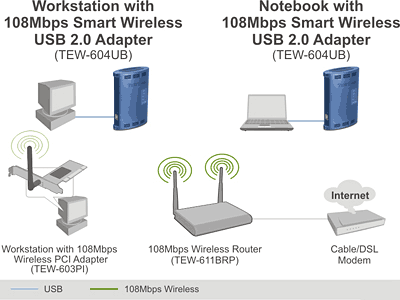

TEW-604UB

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
Register Your Product
Package Contents
  • TEW-604UB
  • Quick Installation Guide
  • Utility & Driver CD-ROM
  • USB 2.0 Cable (1.5m/4.9ft.)
