300Mbps Wireless N Broadband Router
TEW-631BRP (Version 3.0R)

12x the speed and 6x the range of wireless g
Seamlessly stream video, download files, talk online and play games
StreamEngine™ Quality of Service technology prioritizes Internet calls, gaming and video streaming
Advanced wireless encryption and a firewall provides robust security

DISCONTINUED PRODUCT

The TEW-631BRP (Version 3.0R) has been discontinued. It has been replaced by the TEW-639GR (Version V1.0R). For a list of discontinued products, click here.

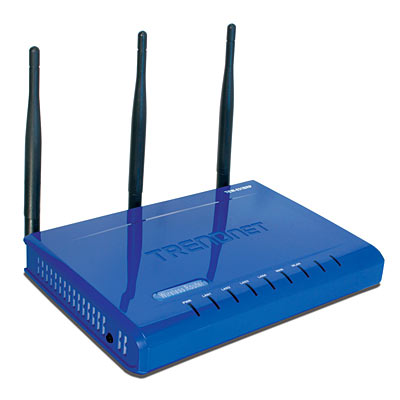

Click on image to enlarge

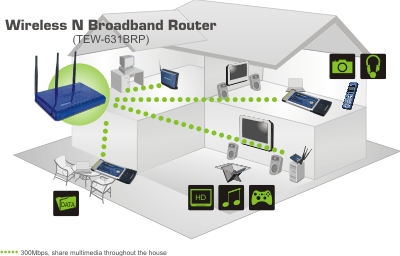

The Wireless N Broadband Router delivers the highest level of security, 12x the speed and 4x the range of wireless g products. StreamEngineTM technology allows you to seamlessly stream live media, download files, play games and talk Online all at the same time and with no jitter.

The latest in wireless encryption, a double firewall and a unique manual on/off wireless switch provides the ultimate in wired and wireless security. Advanced antenna technology eliminates dead spots. A quick and intuitive installation process, remote management capabilities and a 3-year warranty make this product well suited for your most demanding networking needs.

**Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

Wi-Fi compliant with IEEE 802.11n and IEEE 802.11b/g standards

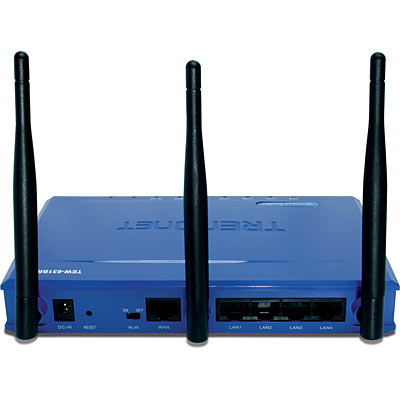

4 x 10/100Mbps Auto-MDIX LAN port and 1 x 10/100Mbps WAN port (Internet)
Supports cable/DSL modems with Dynamic IP, Static IP, PPPoE, PPTP, L2TP & BigPond connection types
Supports AP mode and Bridge mode
3 external antennas support 300Mbps high speed performance and great coverage
Firewall features Network Address Translation (NAT) and Stateful Packet Inspection (SPI) protects against DoS attacks
Traffic control with virtual servers, special applications, gaming services and Ubicom StreamEngine™ feature
Universal Plug and Play (UPnP) and Application Level Gateway support for internet applications such as email, FTP, gaming, remote desktop, Net Meeting, telnet and more
Provides additional security of enable/disable wireless SSID, internet access control (services, URL & MAC filtering)
Supports multiple and concurrent IPSec, L2TP and PPTP VPN pass-through sessions
Easy management via Web browser (IE 6.0 or above, FireFox, Opera, Netscape) and remote management
Supports 64/128-bit WEP(for 11b/g), WPA/WPA2 and WPA-PSK/WPA2-PSK
Works with Windows 95/98/NT/2000/XP/2003 Server/Vista, Linux and Mac OS
Coverage up to 150 meters (500ft.) indoor;(depends on the environment)
Coverage up to 400 meters (1300ft.) outdoor;(depends on the environment)
3-year limited warranty


Hardware
Standards	Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX) Wireless: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0), IEEE 802.11e QoS
WAN	1 x 10/100Mbps Auto-MDIX port (internet)
LAN	4 x 10/100Mbps Auto-MDIX port
Slide Switch	Turn on/off wireless LAN
WPS Button	WPS configuration
Connection Type	Dynamic IP, Static (Fixed) IP, PPPoE, PPTP, L2TP, BigPond
NAT Firewall	4~6K configurable NAT entries; restricted NAPT IP ranges, port ranges & schedule Pre-defined game hosting configurations Port triggering for 24 special applications ALG support (enable/disable support) –RTP/RTSP, AOL, FTP, ICMP, WMP/MMS, NetMeeting, SIP
SPI Firewall	Up to 24 rules; cyber attack protection – verified against over 2000 attacks
WDS	Enable/Disable Wireless Distribution System support
UPnP	UPnP IGD 1.0 compliant
DMZ	DMZ host, 24 configurable virtual servers & game servers
DNS	Static or WAN assigned DNS servers; 10 verified services for DDNS
Internet Access Control	Policy based parental control; time based internet access; port range/service filtering; Dynamic URL filtering; Internet domain restriction; 32 user defined schedules, 24 MAC address filter entries
Logging	3 types & 3 severities event logging; up to 1K entries Email report logging on schedule or log full

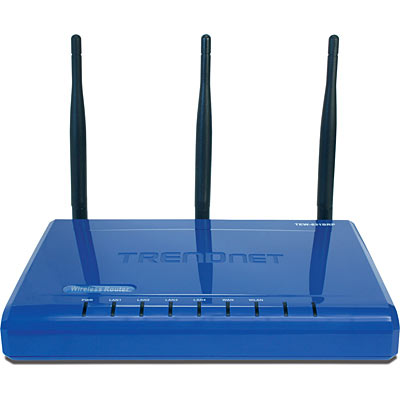

LED Indicator	Power, LAN1~LAN4, WAN, WLAN
Power Adapter	12V DC, 1A external power adapter
Power Consumption	779mA
Dimension (L x W x H)	180 x 122 x 30 mm (6.8 x 4.6 x 1.1 inches)
Weight	350g (0.8 lb)
Temperature	Operation: 0°~ 40°C (32°F~ 104°F); Storage: -20°~ 60°C (-4°F~140 °F)
Humidity	Max. 90% (non-condensing)
Certifications	CE, FCC
Wireless
Frequency	2.412 ~ 2.462 GHz (FCC); 2.412 ~ 2.472 GHz (ETSI)
Antenna	3 x 4dBi fixed dipole antenna
Media Access Protocol	CSMA/CA with ACK
Data Rate	802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps 802.11n (draft 2.0): up to 300Mbps
Security	Encryption: hardware AES/TKIP, 64/128-bit WEP (hex/passphrase, 11b/g) 802.1X/EAP: EAP-TLE,EAP-TTLE/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC WPA: WPA/WPA2, WPA-PSK/WPA2-PSK (AES-11b/g/n, TKIP-11b/g) WPS: support PIN and PBC SSID broadcast control
Output Power	802.11b: 18dBm (typical) 802.11g: 15dBm (typical) 802.11n (draft 2.0): 7dBm (typical) with HT20 or HT40
Receiving Sensitivity	802.11b: -86dBm (typical) @ 11Mpbs 802.11g: -74dBm (typical) @ 54Mbps 802.11n (draft 2.0) : -70dBm (typical) with HT20 or HT40

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Knowledgebase

View Emulator

Package Contents

TEW-631BRP
Multi-Language Quick Installation Guide
Easy-Go Installation CD-ROM
Power Adapter (12V DC, 1A)
RJ-45 Cable (1.5m)
